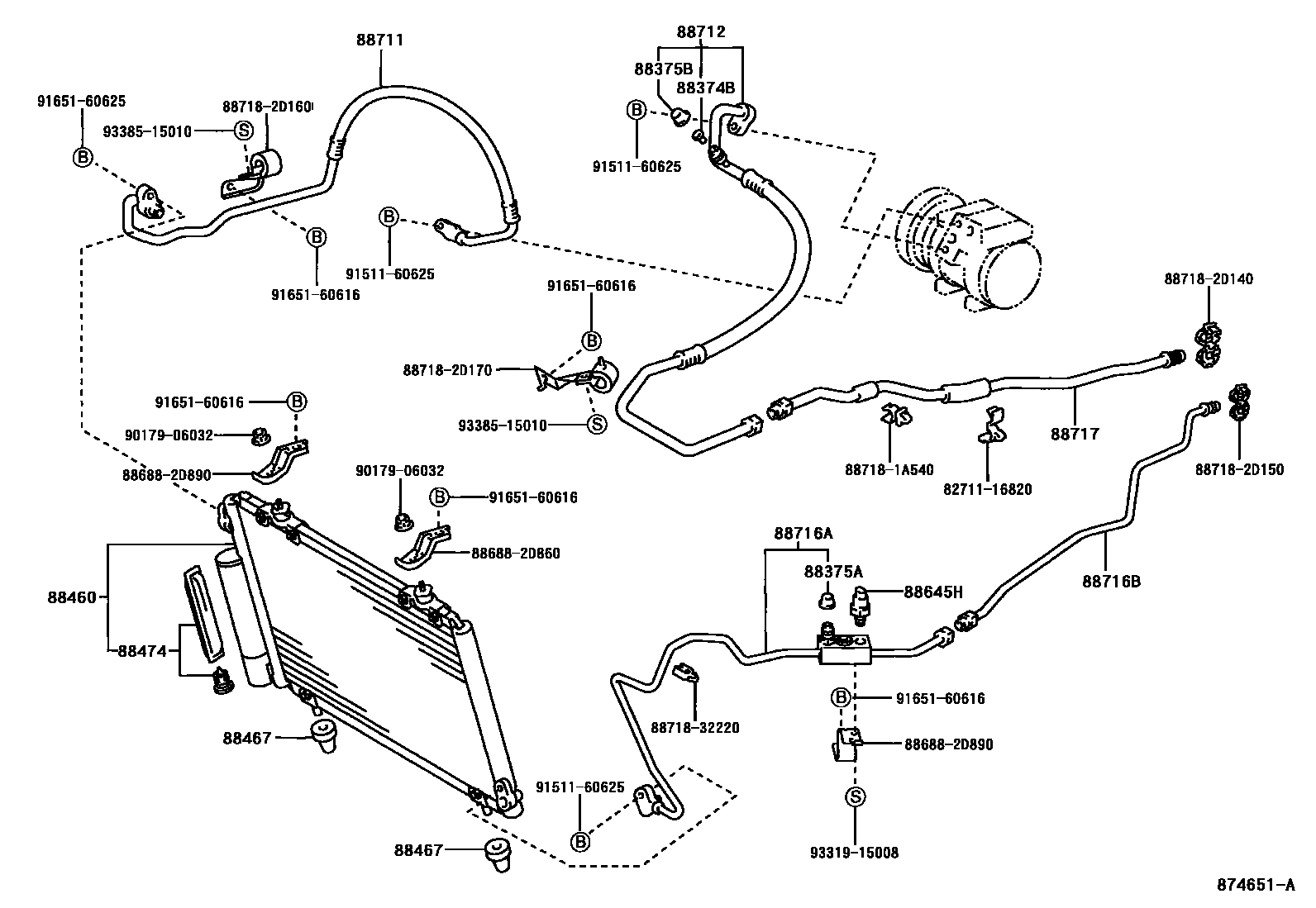

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iZZT231199908-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iZZT231199908-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZT231199908-200208

88460CONDENSER ASSY, COOLER

main88460-20550iZZT231199908-200208

main88460-20590iZZT231200208-200509

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iZZT231200008-200208

main88467-32020iZZT231199908-200008

88474DRYER, COOLER

main88474-17010iZZT231200208-200509

main88474-47010iZZT231199908-200208

88645HSWITCH, PRESSURE NO.1

main88645-60030iZZT231199908-200208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-20240iZZT231200208-200509

main88711-2B380iZZT231199908-200208

sub88703-20240

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-20570iZZT231200208-200509

main88712-2D220iZZT231199908-200208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-20270iZZT231200208-200509

main88716-2D610iZZT231199908-200208

sub88706-20270

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2D590iZZT231199908-200208

sub88716-2D670

main88716-2D670iZZT231200208-200509

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-2B640iZZT231199908-200208

sub88717-2B660

main88717-2B660iZZT231200208-200509

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

886882D860BRACKET, COOLER DIAPHRAGM

main88688-2D860

886882D890BRACKET, COOLER DIAPHRAGM

main88688-2D890

887181A540PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A540

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182D160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D160

887182D170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D170

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9017906032

main90179-06032

9151160625

main91511-60625

9165160616

main91651-60616

9165160625

main91651-60625

9331915008

main93319-15008

9338515010

main93385-15010

27 parts on this diagram · 3 diagrams in section
