RADIO RECEIVER & AMPLIFIER & CONDENSER

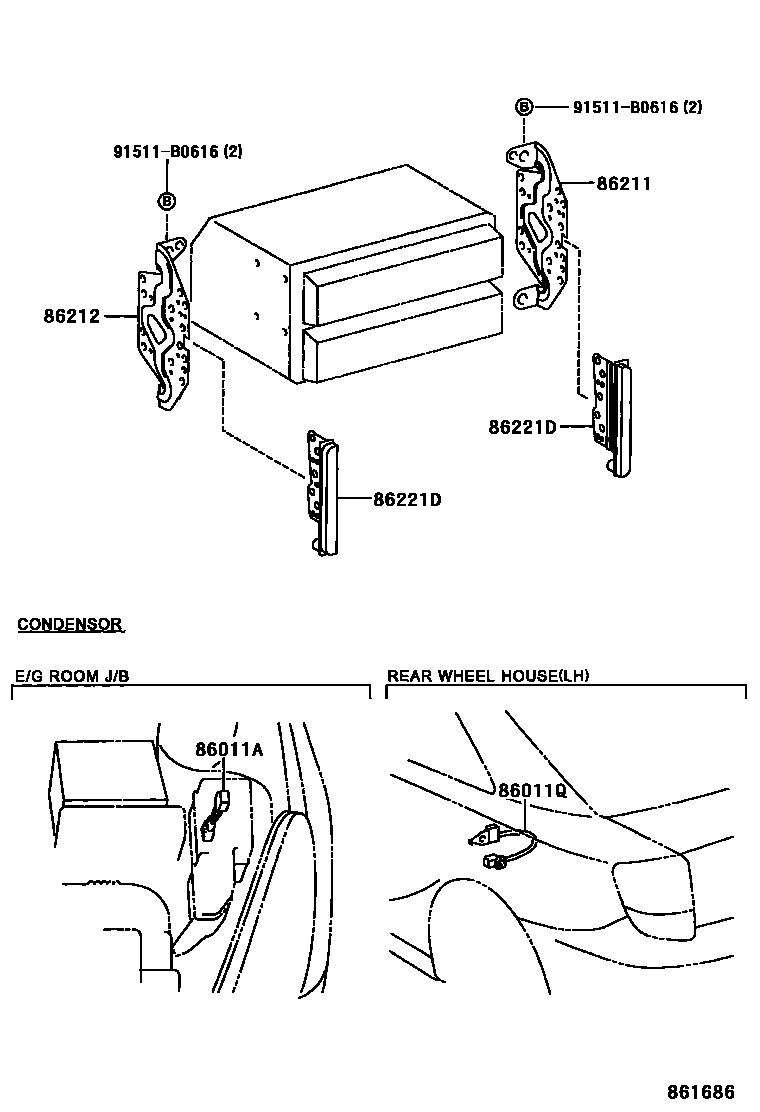

Parts diagram

86011ACONDENSER, RADIO SETTING

main90980-04144i199908-200509

86011QCONDENSER, RADIO SETTING

main90980-04134i199908-200509

86211BRACKET, RADIO, NO.1

main86211-20410i199908-200509

86212BRACKET, RADIO, NO.2

main86212-20400i199908-200509

86221DPANEL, RADIO RECEIVER

main86221-52050i199908-200208

RH

main86221-52050i200208-200509

LH

main86221-52060i199908-200208

LH

main86221-52060i200208-200509

RH

91511B0616

main91511-B0616

6 parts on this diagram · 1 diagram in section
