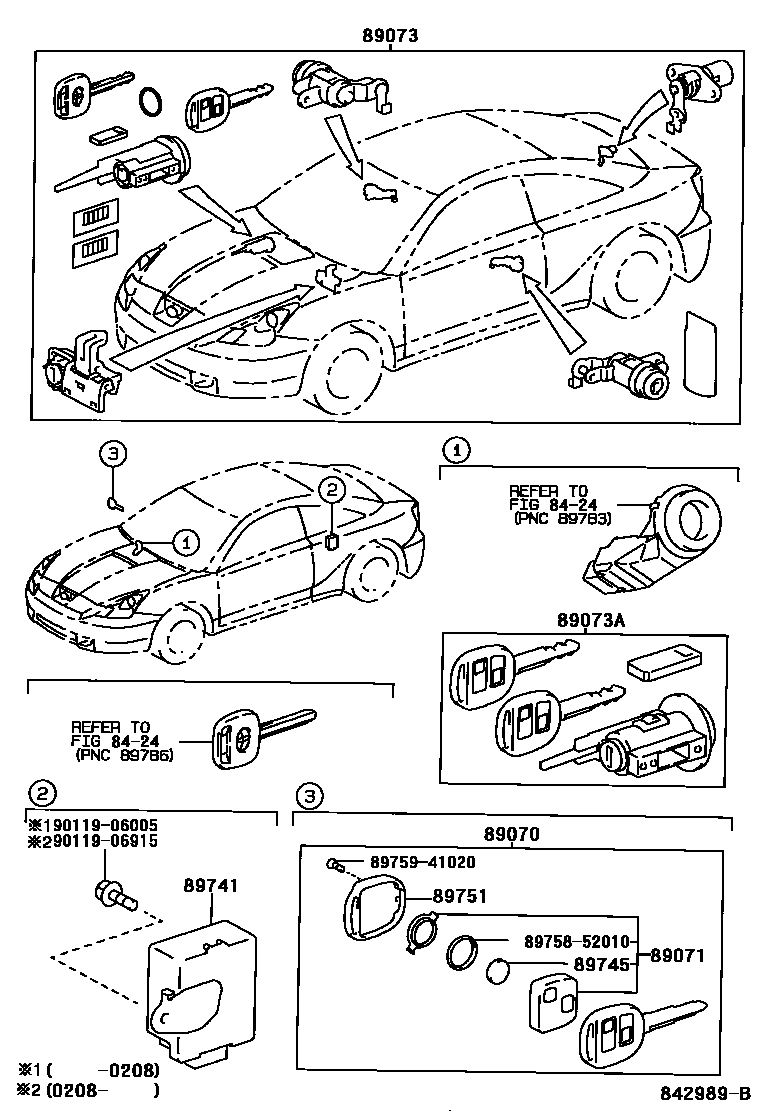

WIRELESS DOOR LOCK

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-20080iZZT231199908-200012

main89070-20081iZZT231200012-200208

main89070-20120iZZT231199908-200101

HONG KONG SPEC

main89070-47101iZZT231200208-200509

sub89070-47102

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52020×2iZZT231199908-200012

main89071-52021×2iZZT231200012-200208

main89071-52030×2iZZT231199908-200101

HONG KONG SPEC

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-2B750iZZT231200208-200509

main89073-20090iZZT231199908-200012

main89073-20091iZZT231200012-200208

sub89759-41020

main89073-20130iZZT231199908-200101

HONG KONG SPEC

sub89751-20020

sub89759-41020

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-20010iZZT231199908-200012

main89073-20011iZZT231200012-200208

main89073-20050iZZT231199908-200101

HONG KONG SPEC

89741RECEIVER, DOOR CONTROL

main89741-20150iZZT231199908-200012

main89741-20151iZZT231200012-200208

main89741-20160iZZT231199908-200101

HONG KONG SPEC

89745BATTERY, TRANSMITTER

main89745-52010×2iZZT231199908-200208

sub89745-40010

89751COVER, TRANSMITTER HOUSING

main89751-20010×2iZZT231200208-200509

8975852010PACKING, DOOR CONTROL TRANSMITTER

main89758-52010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906005

main90119-06005

9011906915

main90119-06915

12 parts on this diagram · 1 diagram in section
