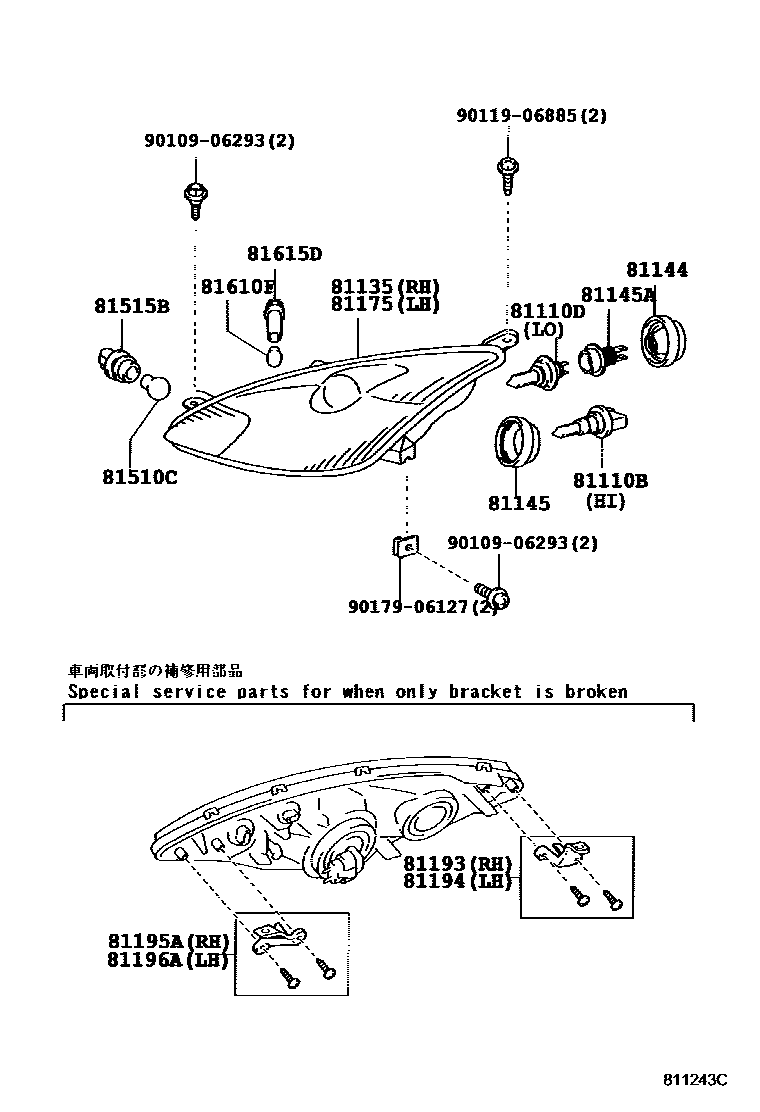

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN,HALOGEN HEAD LAMP
12V 65W,HALOGEN,HID HEAD LAMP
81135UNIT ASSY, HEADLAMP, RH
HALOGEN HEAD LAMP
HID HEAD LAMP
81144COVER, HEADLAMP, NO.1
HID HEAD LAMP,RH
HID HEAD LAMP,LH
HALOGEN HEAD LAMP
81145COVER, HEADLAMP, NO.2
HALOGEN HEAD LAMP
81145AADAPTER ASSY
81175UNIT ASSY, HEADLAMP, LH
HALOGEN HEAD LAMP
HID HEAD LAMP
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
HALOGEN HEAD LAMP
HID HEAD LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
HALOGEN HEAD LAMP
HID HEAD LAMP
HID HEAD LAMP
9010906293
main90109-06293
9011906885
main90119-06885
9017906127
main90179-06127
18 parts on this diagram · 2 diagrams in section
