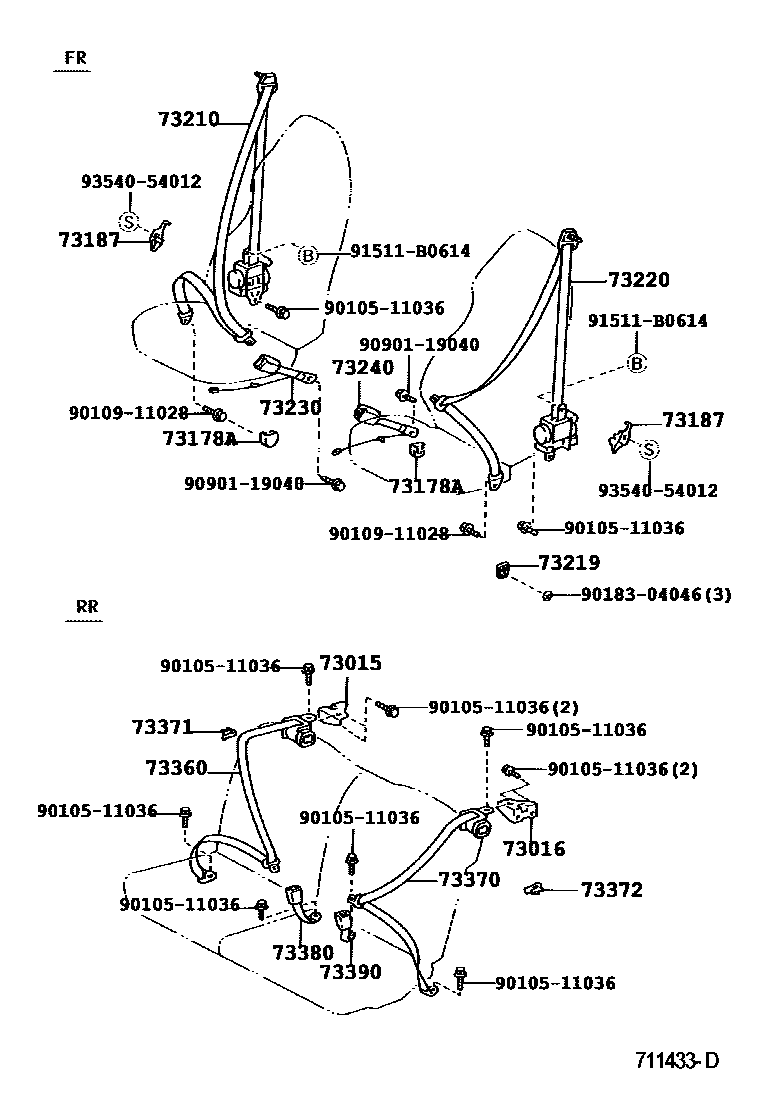

SEAT BELT & CHILD RESTRAINT SEAT

73015BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH

main73015-20050iZZT231199908-200509

73016BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH

main73016-20010iZZT231199908-200509

73178ACAP, SEAT BELT ANCHOR COVER

main73233-33010-C0iZZT231199908-200509

BLACK,TRIM20,21,22

sub73233-33010

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-20010iZZT231199908-200509

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-2B180-C1iZZT231199908-200108

BLACK,TRIM20,21,22

main73210-2B181-C1iZZT231200108-200208

BLACK,TRIM20,21,22

main73210-2B181-C3iZZT231200208-200509

BLACK,TRIM20,21,22

73219STOPPER, TONGUE PLATE

main73219-26010-B2iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub73219-26010

main73219-26010-B3iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub73219-26010

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20850-C1iZZT231199908-200108

BLACK,TRIM20,21,22

main73220-20851-C1iZZT231200108-200208

BLACK,TRIM20,21,22

main73220-20851-C3iZZT231200208-200509

BLACK,TRIM20,21,22

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20800-B0iZZT231199908-200108

AMETHYST,TRIM20,21,22

sub73230-20800

main73230-20801-B0iZZT231200108-200208

AMETHYST,TRIM20,21,22

sub73230-20801

main73230-20801-C0iZZT231200208-200509

BLACK,TRIM20,21,22

sub73230-20801

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20771-C0iZZT231200208-200509

W(DISCHARGE HEADLAMP),BLACK,TRIM20,21,22

sub73230-20771

main73230-2B010-B0iZZT231199908-200108

AMETHYST,TRIM20,21,22

sub73230-2B010

main73230-2B011-B0iZZT231200108-200208

AMETHYST,TRIM20,21,22

sub73230-2B011

main73230-2B011-C0iZZT231200208-200509

BLACK,TRIM20,21,22

sub73230-2B011

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-20820-C1iZZT231199908-200108

BLACK,TRIM20,21,22

main73360-20821-C1iZZT231200108-200509

BLACK,TRIM20,21,22

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-20820-C1iZZT231199908-200108

BLACK,TRIM20,21,22

main73360-20821-C1iZZT231200108-200509

BLACK,TRIM20,21,22

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-16050-B7iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub73371-16050

sub73371-52010

main73371-16050-B9iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub73371-16050

sub73371-52010

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-16050-B7iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub73371-16050

sub73371-52010

main73371-16050-B9iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub73371-16050

sub73371-52010

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-20510-C0iZZT231199908-200108

BLACK,TRIM20,21,22

main73380-20511-C0iZZT231200108-200208

BLACK,TRIM20,21,22

main73380-20511-C1iZZT231200208-200509

BLACK,TRIM20,21,22

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-20510-C0iZZT231199908-200108

BLACK,TRIM20,21,22

main73380-20511-C0iZZT231200108-200208

BLACK,TRIM20,21,22

main73380-20511-C1iZZT231200208-200509

BLACK,TRIM20,21,22

9010511036

main90105-11036

9010911028

main90109-11028

9018304046

main90183-04046

9090119040

main90901-19040

91511B0614

main91511-B0614

9354054012

main93540-54012

21 parts on this diagram · 1 diagram in section
