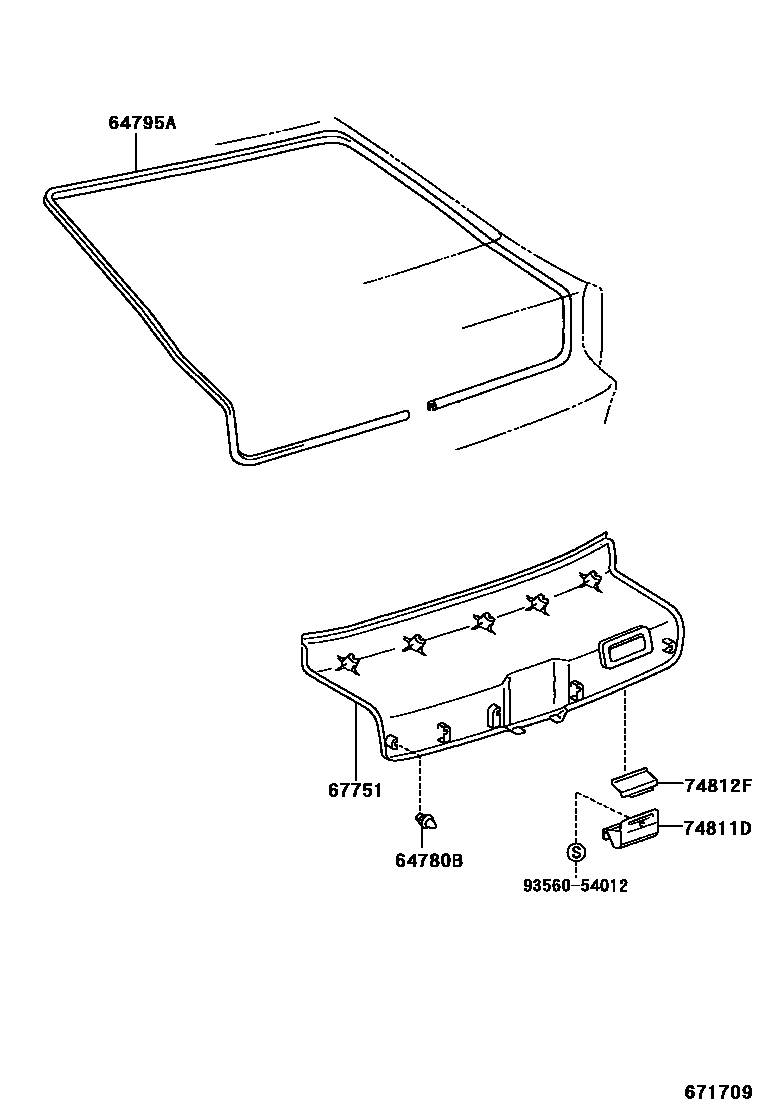

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-10161×10iZZT231199908-200208

64795ATRIM, BACK WINDOW OPENING

main64795-20010-C0iZZT231199908-200208

BLACK,TRIM20,21,22

main64795-20011-C0iZZT231200308-200509

BLACK,TRIM20,21,22

67751BOARD, BACK DOOR TRIM

main67751-20010-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

main67751-20010-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

74811DHANDLE, DOOR PULL

main74811-20040-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

main74811-20040-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

74812FCOVER, DOOR PULL HANDLE

main74812-20020-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

main74812-20020-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

9356054012

main93560-54012

6 parts on this diagram · 2 diagrams in section
