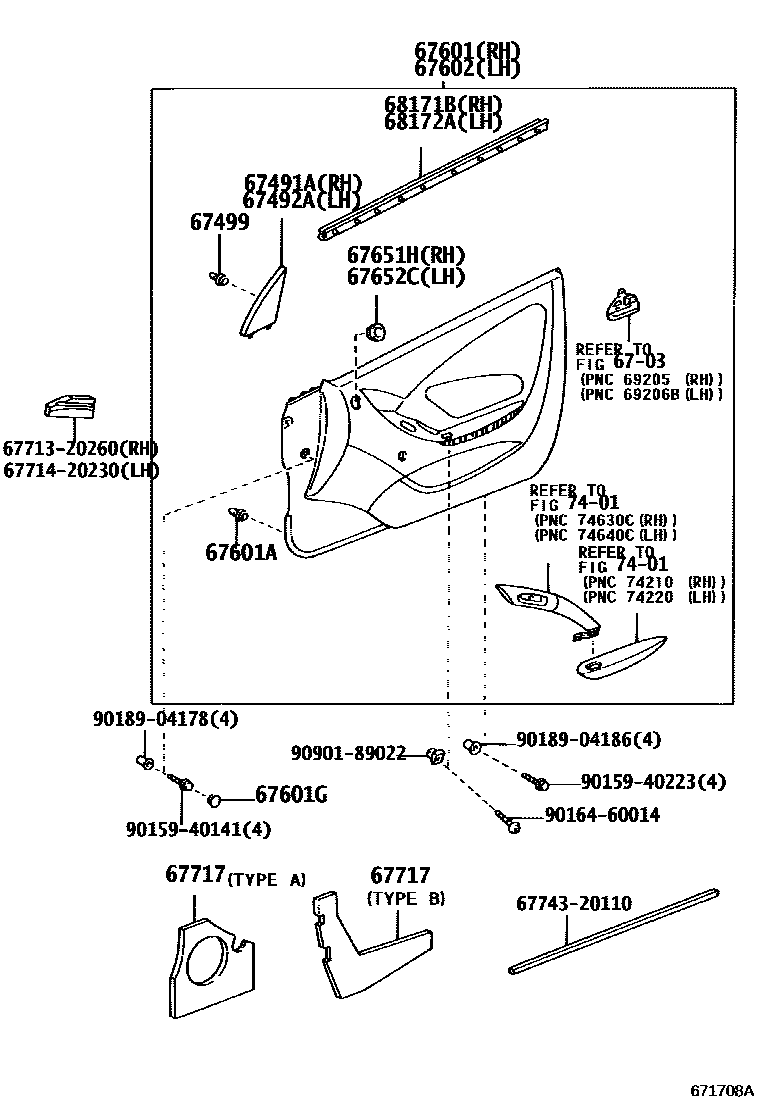

FRONT DOOR PANEL & GLASS
6703
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,TRIM20
GRAY,TRIM21
BLACK,TRIM22
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,TRIM20
GRAY,TRIM21
BLACK,TRIM22
67651HGRILLE, SPEAKER DOOR, RH
67652CGRILLE, SPEAKER DOOR, LH
67717PAD, FRONT DOOR TRIM, CENTER RH
TYPE A:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
7401
6771320260
main67713-20260
6771420230
main67714-20230
6774320110MARK, SIDE TRIM
main67743-20110
9015940141
main90159-40141
9015940223
main90159-40223
9016460014
main90164-60014
9018904178
main90189-04178
9018904186
main90189-04186
9090189022
main90901-89022
23 parts on this diagram · 4 diagrams in section
