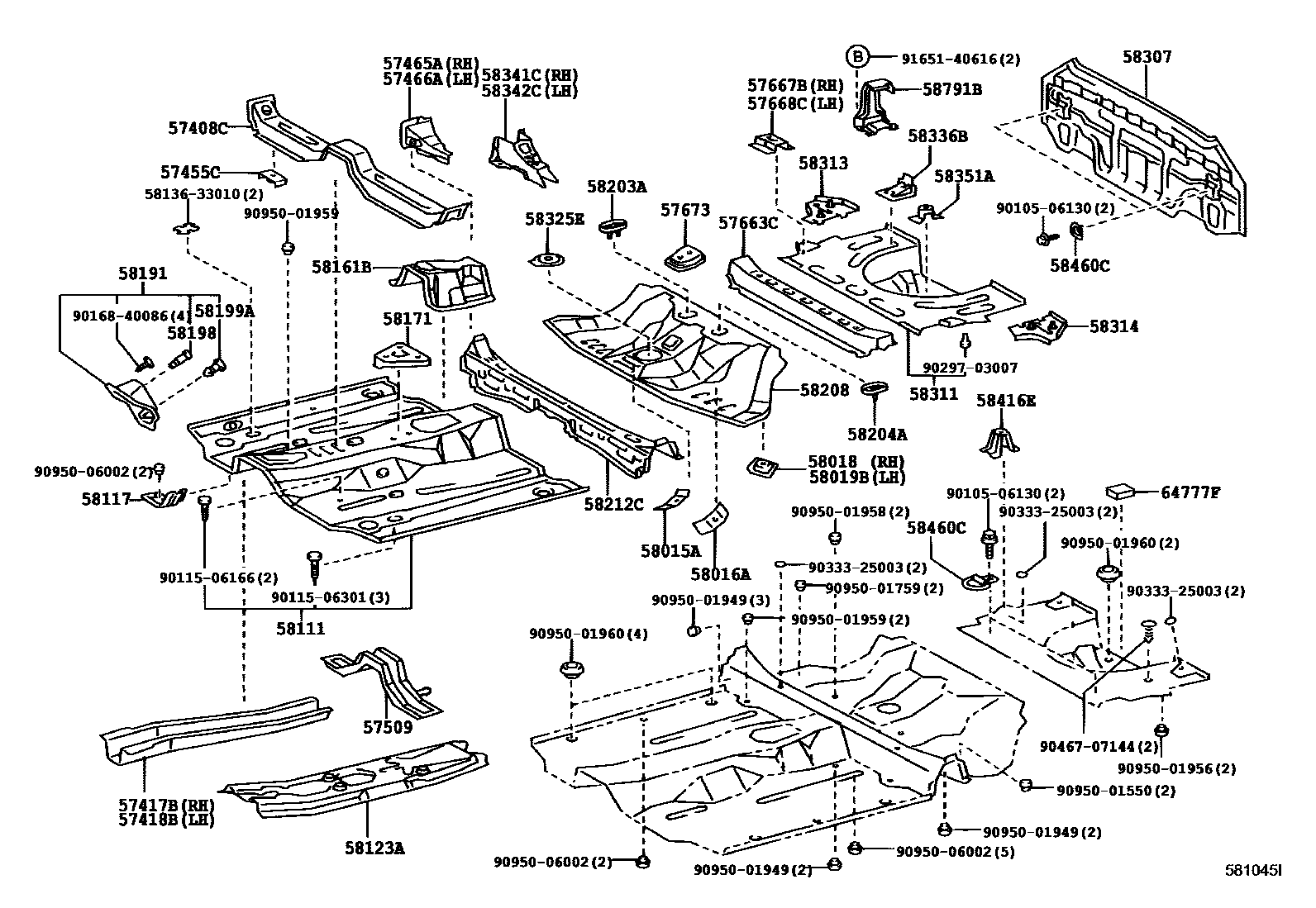

FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57417BREINFORCEMENT, FRONT FLOOR UNDER
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57663CMEMBER, REAR FLOOR CROSS, CENTER
57667BREINFORCEMENT, REAR FLOOR CROSSMEMBER, RH
57668CREINFORCEMENT, REAR FLOOR CROSSMEMBER, LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58018REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH
58019BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH
58111PAN, FRONT FLOOR
58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1
58123ASUPPORT, SHIFT & SELECT LEVER
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
W(ALUMINUM)
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
W(DISCHARGE HEADLAMP)
58212CPAN, CENTER FLOOR, FRONT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351ABRACKET, SPARE WHEEL CARRIER
58416EBRACKET, DECK BOARD, NO.1 RH
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58791BCARRIER, JACK
64777FCUSHION, SPARE WHEEL
5813633010COVER, FRONT FLOOR HOLE
9010506130
9011506166
9011506301
9016840086
9029703007
9033325003
9046707144
9095001550
9095001759
9095001949
9095001956
9095001958
9095001959
9095001960
9095006002
9165140616
57 parts on this diagram · 1 diagram in section
