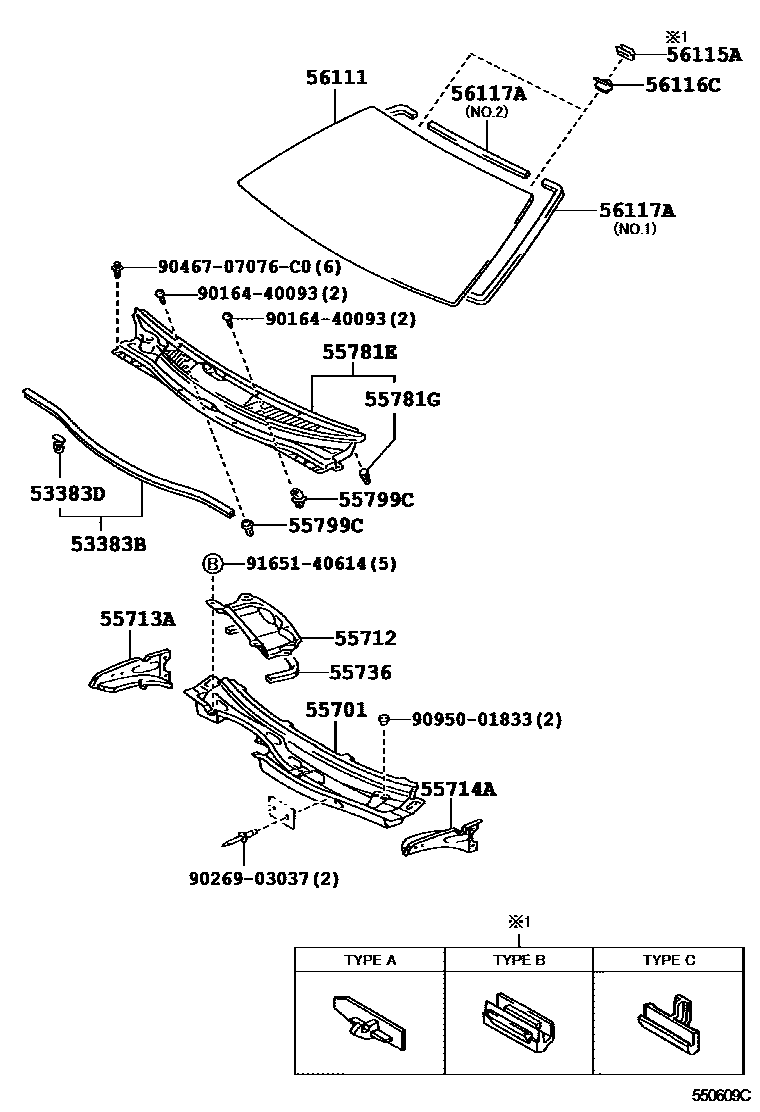

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-20200iZZT231¥1,840199908-200405

sub53383-20201¥1,840

main53383-20201iZZT231¥1,840200405-200509

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-10146iZZT231¥150199908-200308

55701PANEL SUB-ASSY, COWL

main55700-2B170iZZT231¥36,400199908-200403

sub55700-2B171¥36,500

main55700-2B171iZZT231¥36,500200403-200509

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-20090iZZT231¥2,890199908-200509

55713APANEL, COWL TOP SIDE, RH

main55713-20160iZZT231¥4,180199908-200509

55714APANEL, COWL TOP SIDE, LH

main55714-20160iZZT231¥4,180199908-200509

55736SEAL, WATER GUARD PLATE

main55736-20040iZZT231¥370199908-200509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20260iZZT231¥13,000199908-200509

sub55708-20270¥14,500

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67771-32150iZZT231¥160199908-200509

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iZZT231¥390199908-200509

BLUE

main55799-20060iZZT231¥370199908-200509

YELLOW

56111GLASS, WINDSHIELD

main56101-20050iZZT231¥0199908-200208

*TL,T=4.76

main56101-20060iZZT231¥101,000200208-200509

*TL,T=4.76

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iZZT231¥160199912-200208

TYPE C:REFER TO ILLUSTRATION

main56115-30100iZZT231¥130199908-199912

TYPE B:REFER TO ILLUSTRATION

main56115-33040iZZT231¥270199908-199910

TYPE A:REFER TO ILLUSTRATION

sub56115-30100¥130

sub56116-22050¥120

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZZT231¥120199908-200509

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010iZZT231¥1,630199908-200509

*D,L=3204,NO.1:REFER TO ILLUSTRATION

main56118-20060iZZT231¥610199908-200208

NO.2:REFER TO ILLUSTRATION

sub56117-52040¥670

main56118-20060iZZT231¥610200208-200509

*D,L=632,NO.2:REFER TO ILLUSTRATION

sub56117-52040¥670

9016440093

main90164-40093¥70

9026903037

main90269-03037¥110

9046707076C0

main90467-07076C0

9095001833

main90950-01833¥120

9165140614

main91651-40614¥160

19 parts on this diagram · 1 diagram in section
