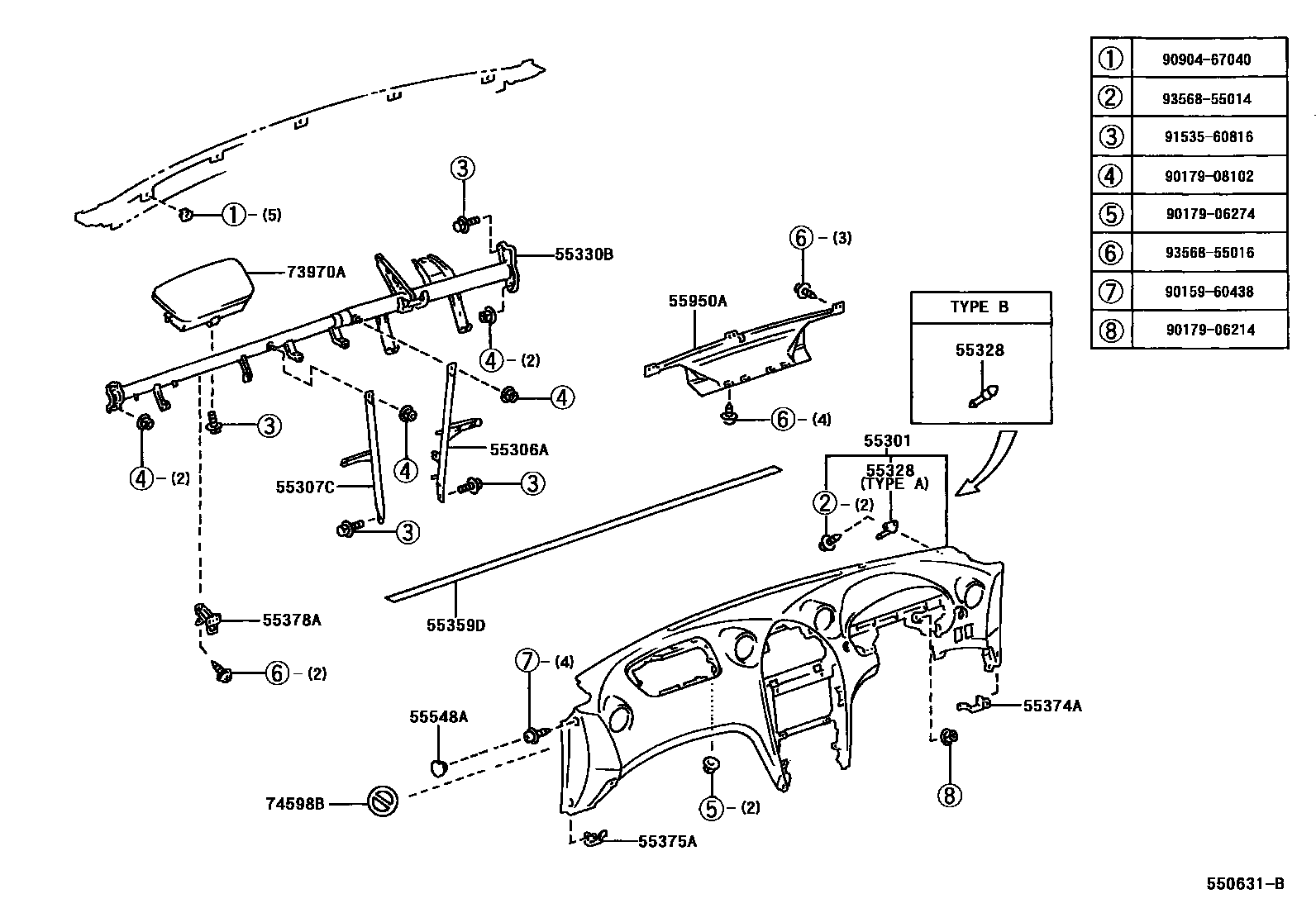

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-20190-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub55301-20190¥49,200

main55301-20190-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub55301-20190¥49,200

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20310iZZT231¥2,160199908-200509

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20190iZZT231¥2,160199908-200509

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20120iZZT231¥370199908-200509

TYPE A:REFER TO ILLUSTRATION

main90249-04029iZZT231¥230199908-200509

TYPE B:REFER TO ILLUSTRATION

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-20290iZZT231¥15,400199908-200509

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-20030iZZT231¥1,660199908-200509

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55376-20180iZZT231¥370199908-200509

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-20110iZZT231¥370199908-200509

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55308-20230iZZT231¥820199908-200509

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-20120-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub55548-20120¥180

main55548-20120-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub55548-20120¥180

55950ANOZZLE ASSY, DEFROSTER

main55950-20190iZZT231¥4,630199908-200509

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-20070-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

sub73970-20070¥132,000

main73970-20070-B1iZZT231200208-200509

DK.GRAY,TRIM20,21,22

sub73970-20070¥132,000

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iZZT231¥90199908-200509

9015960438

main90159-60438¥120

9017906214

main90179-06214¥100

9017906274

main90179-06274¥70

9017908102

main90179-08102¥160

9090467040

main90904-67040¥230

9153560816

main91535-60816¥130

9356855014

main93568-55014¥70

9356855016

main93568-55016¥70

21 parts on this diagram · 2 diagrams in section
