FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57411AMEMBER, FLOOR SIDE, INNER RH
sub57401-20400
57412AMEMBER, FLOOR SIDE, INNER LH
sub57402-20430
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
sub57605-20190
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
W(DISCHARGE HEADLAMP)
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
61665DPLATE, SAFETY BELT ANCHORAGE
9033325003
main90333-25003
9033330008
main90333-30008
9046708074
main90467-08074
9095001550
main90950-01550
9095001871
main90950-01871
9095001949
main90950-01949
9095006002
main90950-06002
9095006109
main90950-06109

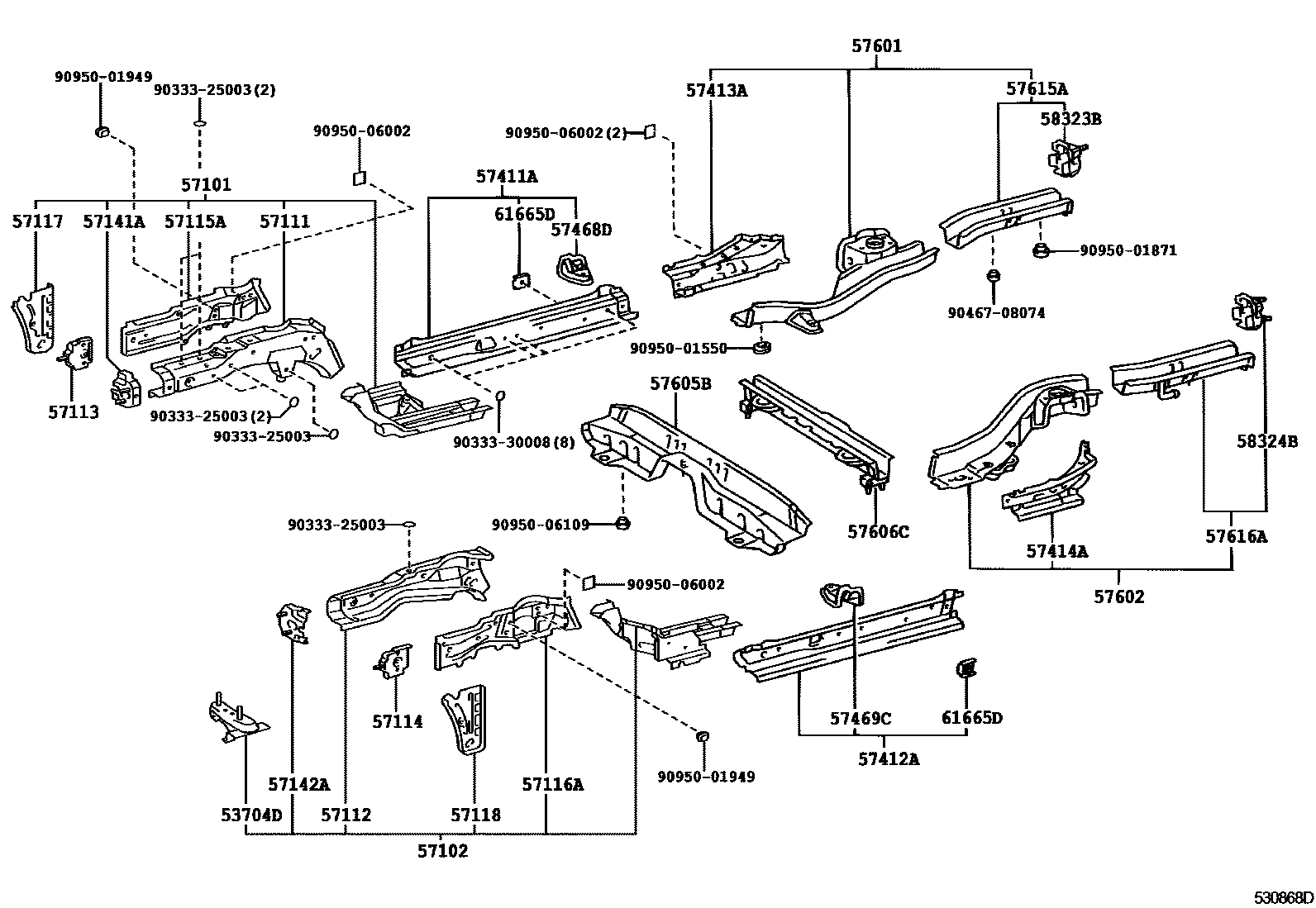

36 parts on this diagram · 1 diagram in section
