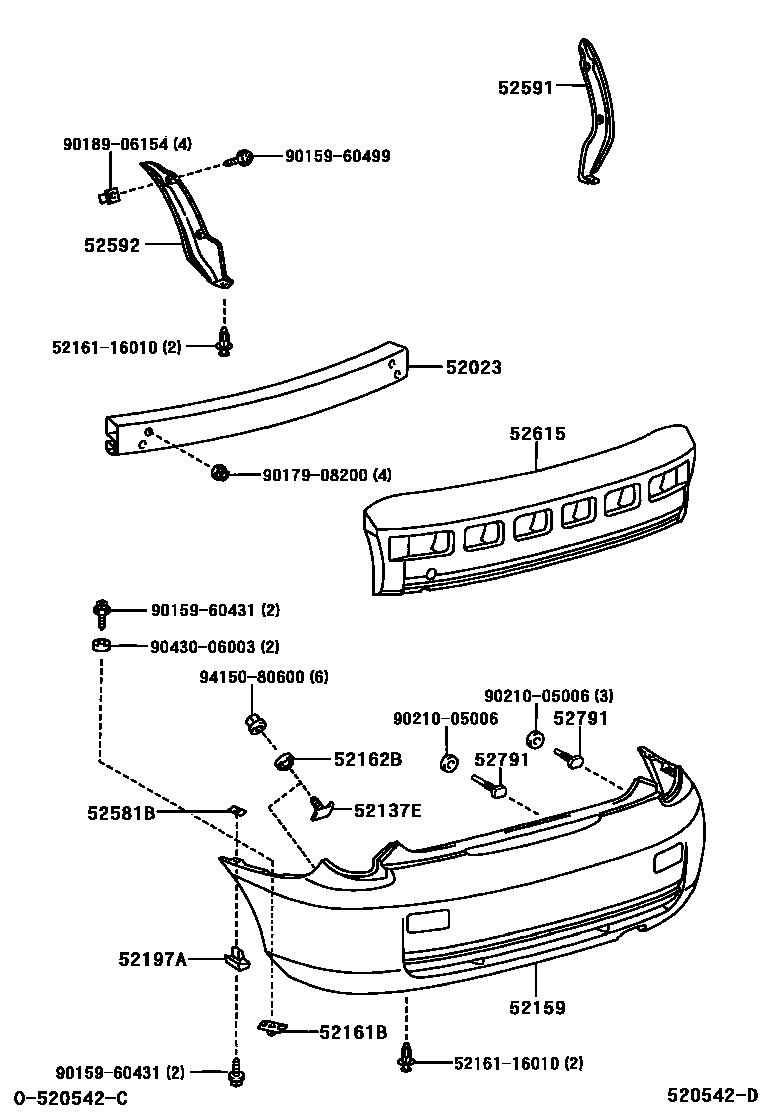

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20370iZZT231199908-200509

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-20070iZZT231199908-200509

52159COVER, REAR BUMPER

main52159-20942iZZT231199908-200208

52161BPIECE, REAR BUMPER

main52161-20020iZZT231199908-200509

52162BPLATE, REAR BUMPER, NO.1

main52162-12050iZZT231199908-200509

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-20010iZZT231199908-200509

52581BPROTECTOR, REAR BUMPER

main52581-20060iZZT231199908-200509

52591SEAL, REAR BUMPER SIDE, RH

main52591-20070iZZT231199908-200509

52592SEAL, REAR BUMPER SIDE, LH

main52592-20040iZZT231199908-200509

52615ABSORBER, REAR BUMPER ENERGY

main52615-20240iZZT231199908-200509

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iZZT231200006-200509

main52791-32010iZZT231199908-200006

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9015960431

main90159-60431

9015960499

main90159-60499

9017908200

main90179-08200

9018906154

main90189-06154

9021005006

main90210-05006

9043006003

main90430-06003

9415080600

main94150-80600

19 parts on this diagram · 1 diagram in section
