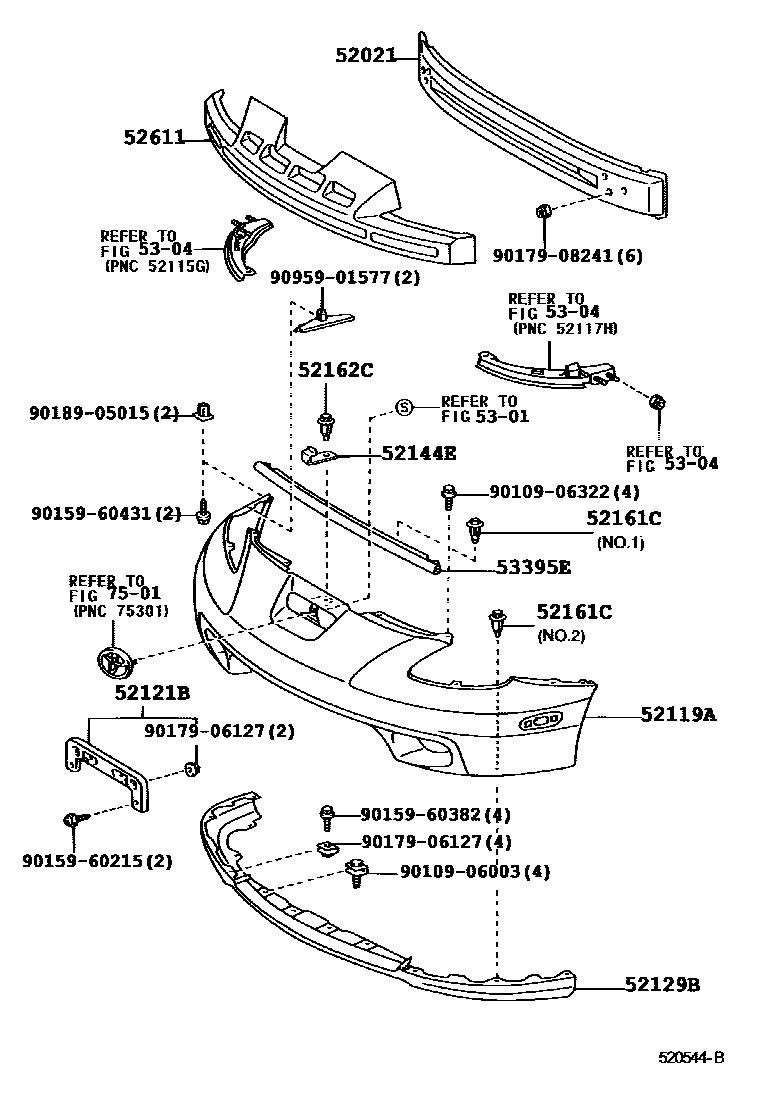

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20260iZZT231199908-200208

52119ACOVER, FRONT BUMPER

main52119-20944iZZT231199908-200208

main52119-20948iZZT231200208-200509

W(HEADLAMP CLEANER)

main52119-20949iZZT231200208-200509

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-20140iZZT231199908-200509

52129BCOVER, FRONT BUMPER, LOWER

main52129-20902iZZT231199908-200208

main52129-20903iZZT231200208-200509

52144ESTAY, FRONT BUMPER, CENTER

main52144-20270iZZT231199908-200208

main52144-20280iZZT231200208-200509

52161CPIECE, FRONT BUMPER

main52161-20010iZZT231199908-200208

NO.2

main52161-20010iZZT231200208-200509

main90467-05063-C0iZZT231199908-200108

BLACK,040 ,1D0 ,202 ,210 ,3P0 ,8M6

sub90467-05063

main90467-05063-C0iZZT231200108-200208

BLACK,040 ,1D0 ,202 ,210 ,3P0 ,576 ,8M6

sub90467-05063

52162CPIECE, FRONT BUMPER

main52161-16010iZZT231199908-200208

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20200iZZT231199908-200208

main52611-20230iZZT231200208-200509

5301

5304

53395ESEAL, HOOD TO FRONT END PANEL

main53395-20030iZZT231199908-200509

7501

9010906003

main90109-06003

9010906322

main90109-06322

9015960215

main90159-60215

9015960382

main90159-60382

9015960431

main90159-60431

9017906127

main90179-06127

9017908241

main90179-08241

9018905015

main90189-05015

9095901577

main90959-01577

21 parts on this diagram · 2 diagrams in section
