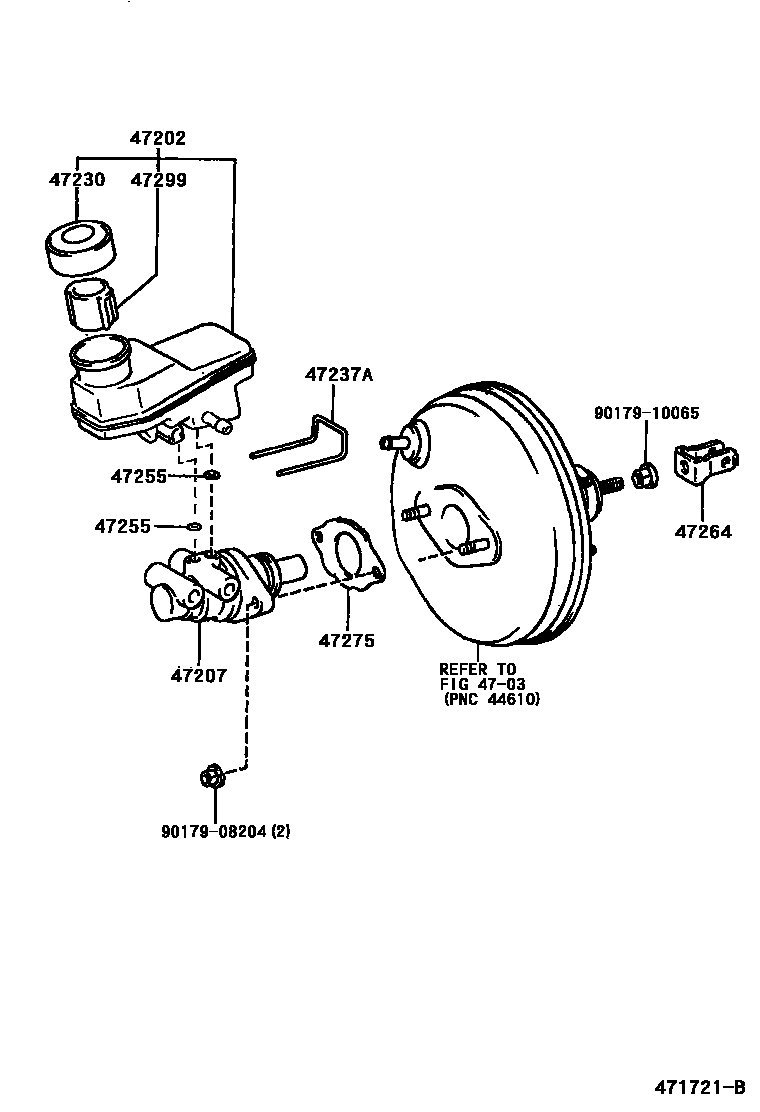

BRAKE MASTER CYLINDER

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-20250iZZT231..6F199908-200208

sub47220-20251

main47220-20251iZZT231..6F200208-200509

main47220-20270iZZT231..4FC199908-200208

sub47220-20271

main47220-20271iZZT231..4FC200208-200509

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-20130iZZT231199908-200311

main47207-20131iZZT231200311-200509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20250iZZT231199908-200110

sub47230-48090

main47230-48090iZZT231200110-200509

sub47230-48091

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iZZT231199908-200509

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iZZT231199908-200509

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-32020iZZT231199908-200312

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iZZT231199908-200312

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52010iZZT231199908-200509

9017908204

main90179-08204

9017910065

main90179-10065

11 parts on this diagram · 1 diagram in section
