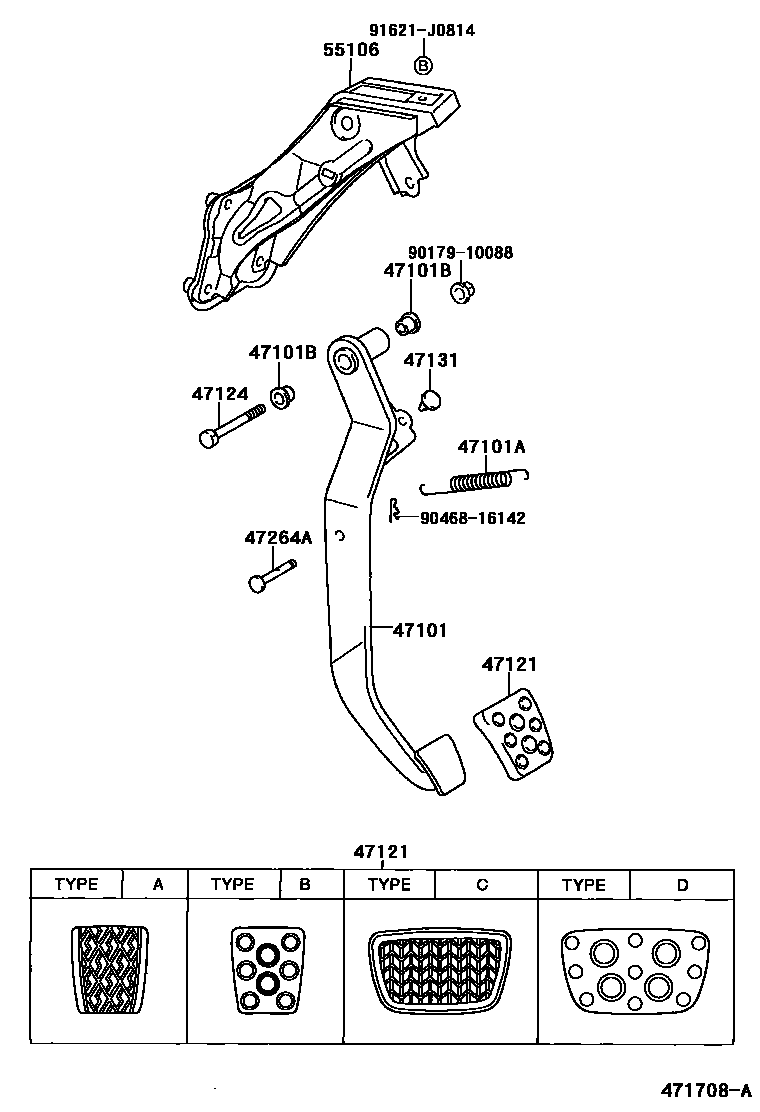

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-20580iZZT231..6F¥2,790199908-200509

main47101-20590iZZT231..4FC¥3,010199908-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07025iZZT231¥510199908-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZT231¥120199908-200509

47121PAD, BRAKE PEDAL

main31321-12040iZZT231..6F¥380199908-200509

TYPE A:REFER TO ILLUSTRATION

main31321-53010iZZT231..6F¥2,330199908-200509

TYPE B:REFER TO ILLUSTRATION

main47121-50010iZZT231..4FC¥840199908-200509

TYPE C:REFER TO ILLUSTRATION

main47121-53010iZZT231..4FC¥3,330199908-200509

TYPE D:REFER TO ILLUSTRATION

47124SHAFT, BRAKE PEDAL

main90109-10167iZZT231¥190199908-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iZZT231¥110199908-200509

47264APIN(FOR PUSH ROD)

main47148-12060iZZT231¥360199908-200509

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20430iZZT231¥3,370199908-200108

main55106-20431iZZT231¥3,370200108-200509

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

91621J0814

main91621-J0814¥60

11 parts on this diagram · 1 diagram in section
