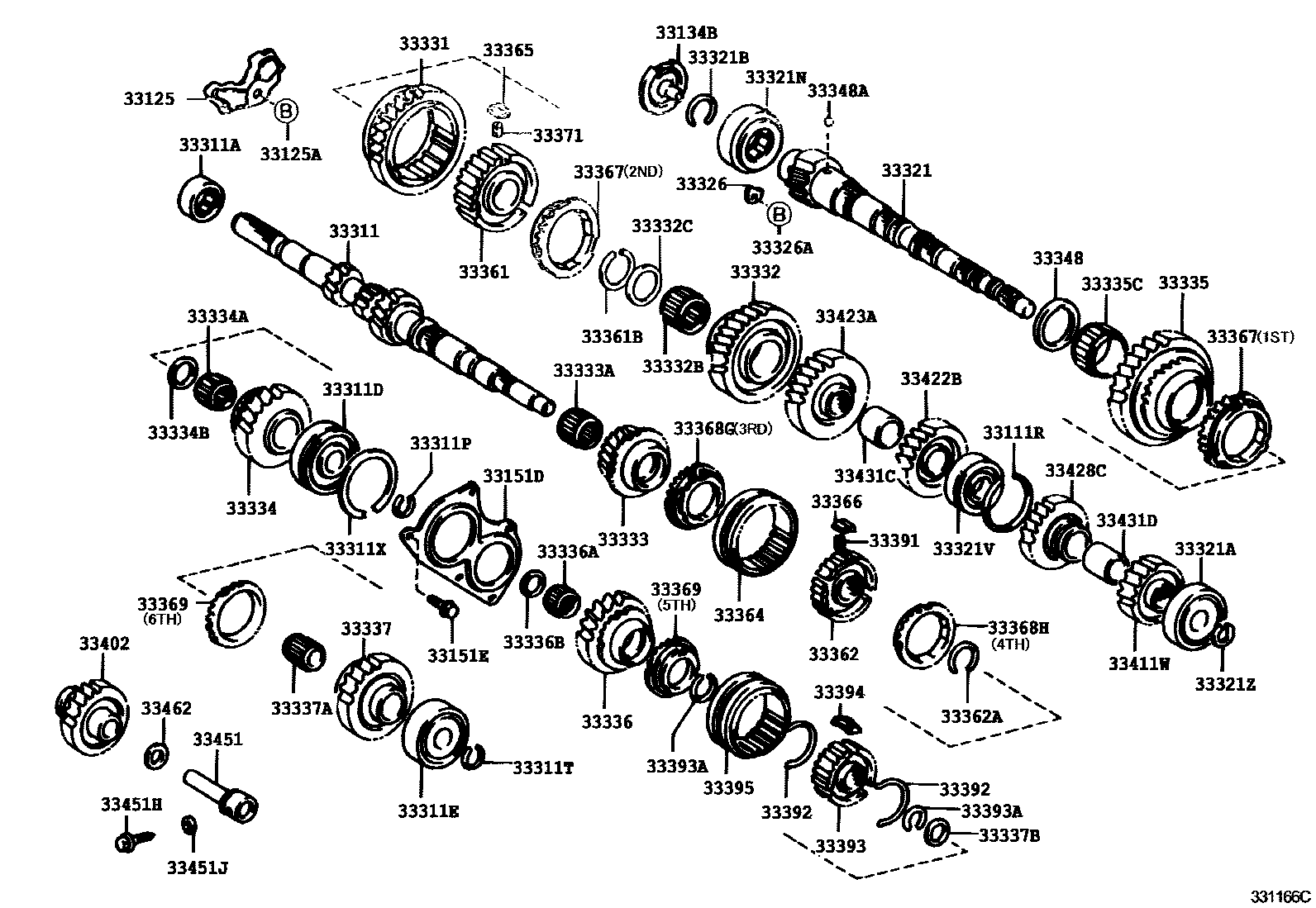

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311DBEARING, INPUT SHAFT
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=1.70,MARK A
T=1.75,MARK B
T=1.80,MARK C
T=1.85,MARK D
T=1.90,MARK E
T=1.95,MARK F
T=2.00,MARK G
T=2.05,MARK H
T=2.10,MARK J
T=2.15,MARK K
T=2.20,MARK L
T=2.25,MARK M
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
sub33321-20181
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=1.85-1.89,MARK 7
T=1.90-1.94,MARK 8
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
sub90903-63010
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=2.73-2.78,MARK J
T=2.67-2.72,MARK H
T=2.79-2.84,MARK K
T=2.85-2.90,MARK L
T=2.91-2.96,MARK M
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33332GEAR, 2ND
sub33332-12150
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
sub33032-12100
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
sub33036-12150
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33337BSPACER (FOR 6TH GEAR)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
sub33362-12050
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
33365KEY, SYNCHROMESH SHIFTING, NO.1
sub33365-52030
33366KEY, SYNCHROMESH SHIFTING, NO.2
sub33366-52030
33367RING, SYNCHRONIZER, NO.1
2ND GEAR SIDE
1ST GEAR SIDE
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33369RING, SYNCHRONIZER, NO.3
5TH GEAR SIDE
6TH GEAR SIDE
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
sub33371-52030
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.75,MARK A
T=1.80,MARK B
T=1.85,MARK C
T=1.90,MARK D
T=1.95,MARK E
T=2.00,MARK F
T=2.05,MARK G
T=2.10,MARK H
T=2.15,MARK J
T=2.30,NO MARK
33394KEY, SYNCHROMESH SHIFTING, NO.3
sub33394-12030
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411WGEAR, COUNTER, 6TH
33422BGEAR, 4TH DRIVEN
sub33422-12100
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
sub33428-12130
33431CSPACER, OUTPUT GEAR
33431DSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
69 parts on this diagram · 1 diagram in section
