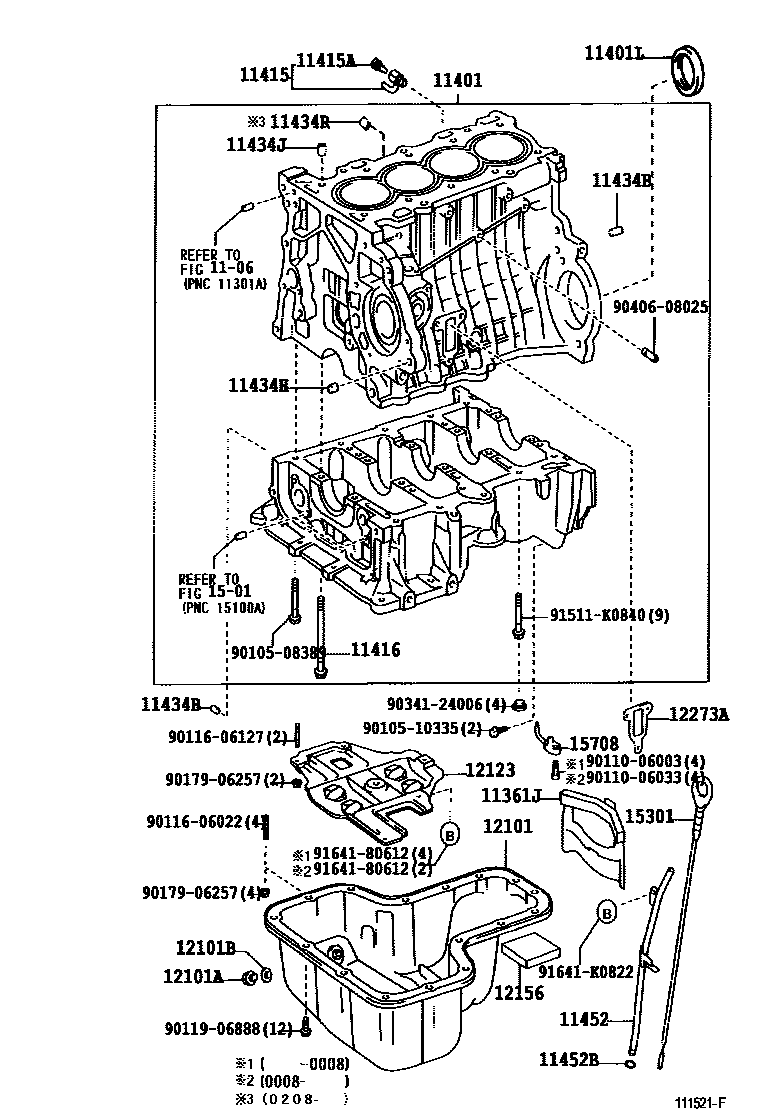

CYLINDER BLOCK
1106
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
sub90910-09129
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=14,OD=6
L=22,OD=10
11434HPIN, RING (FOR TIMING BELT COVER SET)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12123PLATE, OIL PAN BAFFLE NO.3
12156INSULATOR, OIL PAN
12273AGASKET, OIL SEPARATOR
1501
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
9010508389
main90105-08389
9010510335
main90105-10335
9011006003
main90110-06003
9011006033
main90110-06033
9011606022
main90116-06022
9011606127
main90116-06127
9011906888
main90119-06888
9017906257
main90179-06257
9034124006
main90341-24006
9040608025
main90406-08025
91511K0840
main91511-K0840
9164180612
main91641-80612
91641K0822
main91641-K0822
35 parts on this diagram · 1 diagram in section
