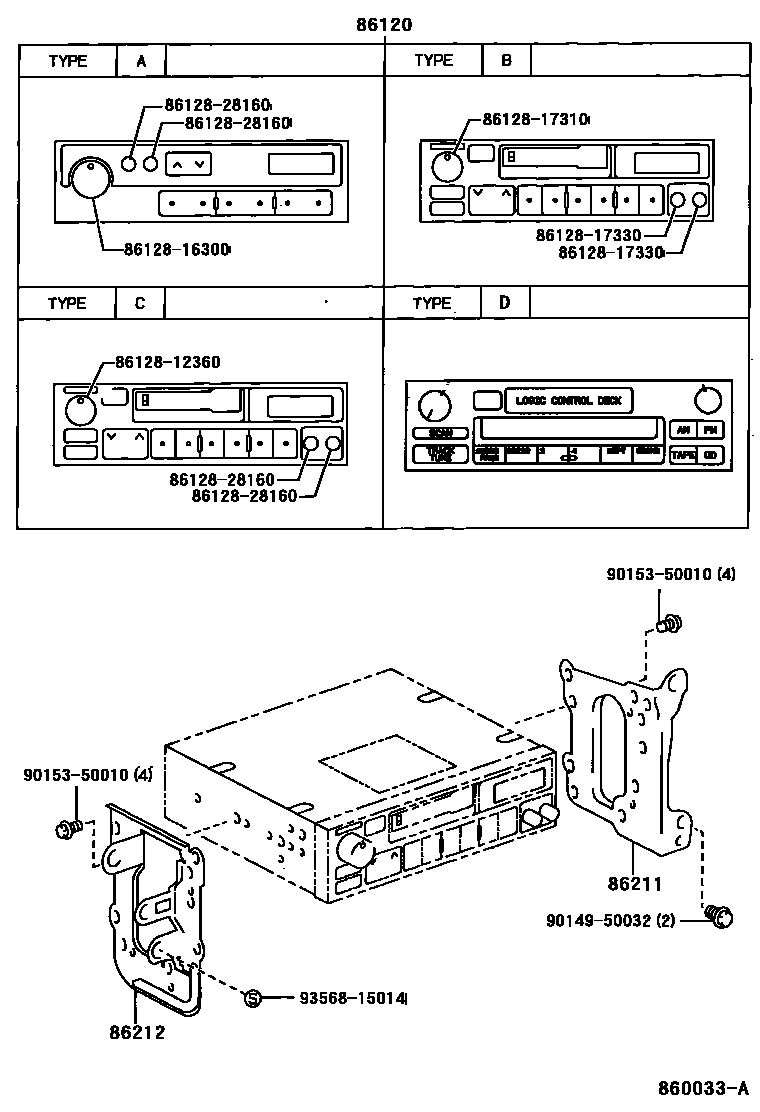

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-2B350iST202..GEN199311-199508

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-2B360iST202..GEN199311-199712

MATSUSHITA,ID=57400,TYPE B:REFER TO ILLUSTRATION

main86120-2B400iST202199311-199712

FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION

main86120-2B610iST202199712

FUJITSU TEN,ID=17411,TYPE D:REFER TO ILLUSTRATION,TEN

main86120-2B620iST202..GEN199712

MATSUSHITA,ID=57410,TYPE D:REFER TO ILLUSTRATION,MATSUSHITA

86211BRACKET, RADIO, NO.1

main86211-20360iST20#..RHD199311

main86211-20370iST202..LHD199311

86212BRACKET, RADIO, NO.2

main86212-20360iST20#..RHD199311

main86212-20370iST202..LHD199311

8612812360KNOB, RADIO RECEIVER

main86128-12360

8612816300KNOB, RADIO RECEIVER

main86128-16300

8612817310KNOB, RADIO RECEIVER

main86128-17310

8612817330KNOB, RADIO RECEIVER

main86128-17330

8612828160KNOB, RADIO RECEIVER

main86128-28160

9014950032

main90149-50032

9015350010

main90153-50010

9356815014

main93568-15014

11 parts on this diagram · 2 diagrams in section
