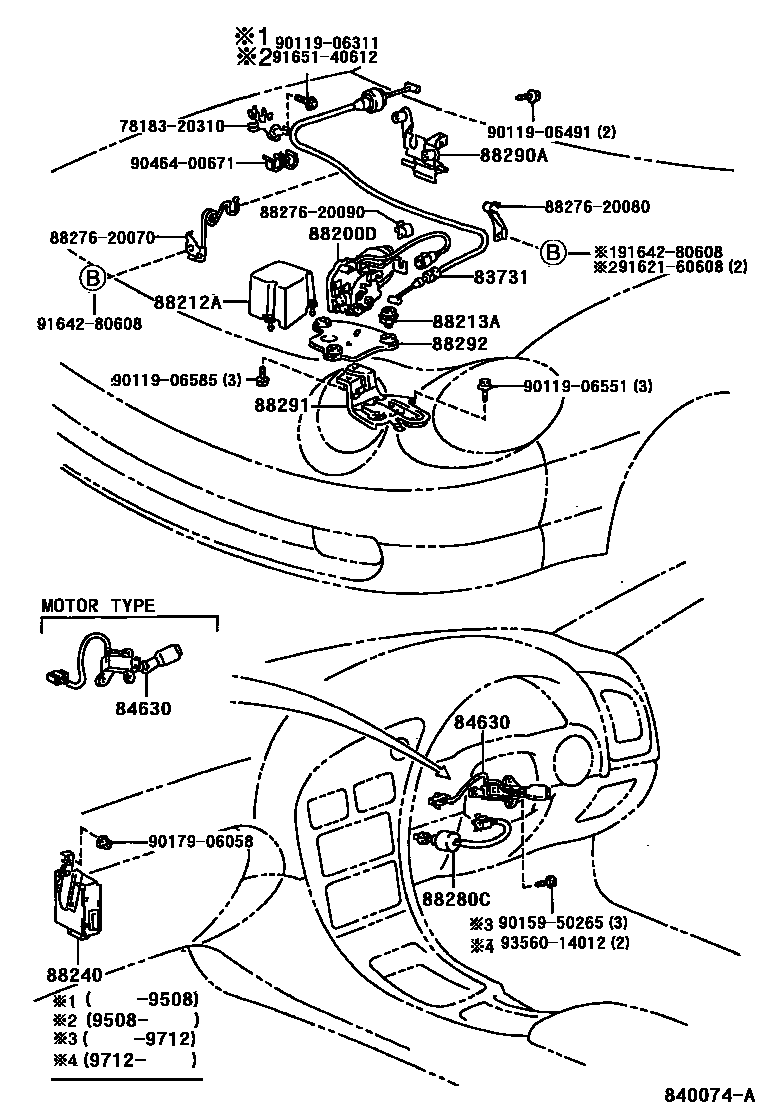

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-20180iST204199311

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-14120iST204199311

main84630-14130iST204199712

W(*80)

main84630-33020iST204199311-199712

W(*80)

sub84630-26011

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20150iST204199311

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-20060iST204199311

88213AGROMMET, CRUISE CONTROL ACTUATOR COVER

main88213-22150×3iST204199311

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20430iST204199311-199508

main88240-20440iST204199508

88280CSWITCH ASSY, CLUTCH

main88280-20030iST204..MTM199311

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-20060iST204199311

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-20100iST204199311

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-20050iST204199311

7818320310BRACKET, ACCELERATOR LINK ROD

main78183-20310

8827620070

main88276-20070

8827620080

main88276-20080

8827620090

main88276-20090

9011906311

main90119-06311

9011906491

main90119-06491

9011906551

main90119-06551

9011906585

main90119-06585

9015950265

main90159-50265

9017906058

main90179-06058

9046400671

main90464-00671

9162160608

main91621-60608

9164280608

main91642-80608

9165140612

main91651-40612

9356014012

main93560-14012

25 parts on this diagram · 1 diagram in section
