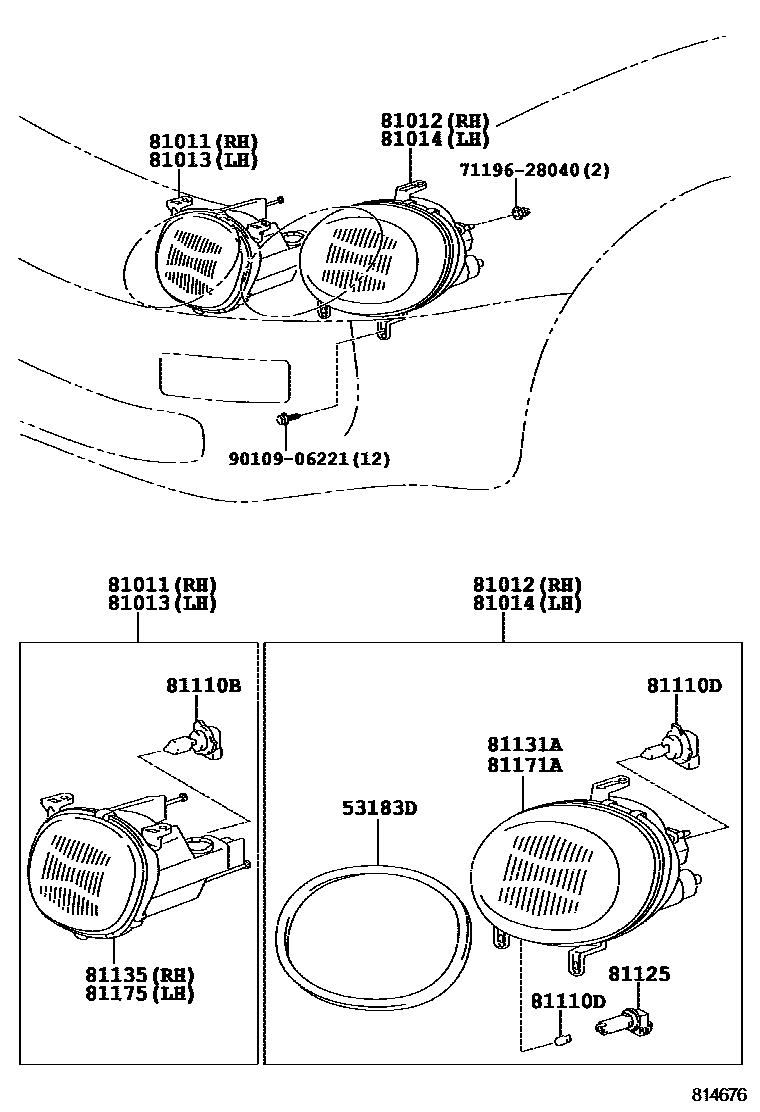

HEADLAMP

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20110iST20#199311

RH

main53184-20070iST20#199311

LH

81011HEADLAMP SUB-ASSY, NO.1

main81011-20030iST20#199311

81012HEADLAMP SUB-ASSY, NO.2

main81012-20030iST202..LHD199311

main81012-20040iST20#..ARL,GEN199311

W(PHOTOMETRIC)

81013HEADLAMP SUB-ASSY, TYPE 1, LH

main81013-20030iST20#199311

81014HEADLAMP SUB-ASSY, TYPE 2, LH

main81014-20030iST202..LHD199311

main81014-20040iST20#..ARL,GEN199311

W(PHOTOMETRIC)

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iST20#199311

12V 65W

sub90981-13046

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2iST20#199311

12V 51W

sub90981-13047

main99132-12050×2iST20#199311

12V 5W

81125CORD, HEADLAMP

main90075-99044×2iST20#199311

81131AUNIT, HEADLAMP, RH

main81131-20030iST202..LHD199311

main81131-20050iST20#..ARL,GEN199311

W(PHOTOMETRIC)

81135UNIT ASSY, HEADLAMP, RH

main81130-20030iST20#199311

81171AUNIT, HEADLAMP, LH

main81171-20030iST202..LHD199311

main81171-20050iST20#..ARL,GEN199311

W(PHOTOMETRIC)

81175UNIT ASSY, HEADLAMP, LH

main81170-20030iST20#199311

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9010906221

main90109-06221

14 parts on this diagram · 1 diagram in section
