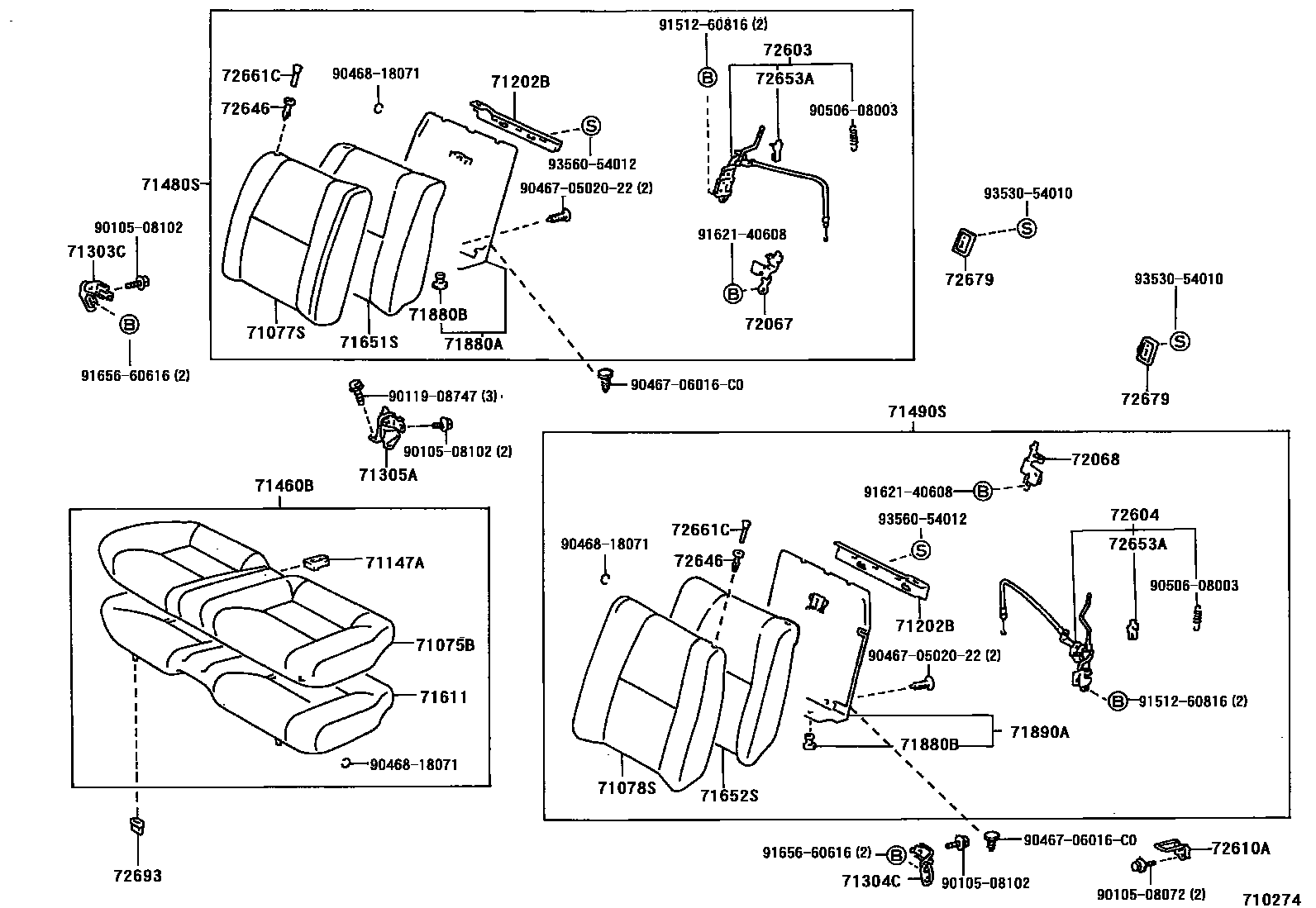

REAR SEAT & SEAT TRACK

0001 1 0002 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-2B020-C0iST202,204199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B021-C2iST202199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B310-C0iST202,204199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B340-C0iST204199311-199508

BLACK,TRIM2#

main71065-2B350-C1iST202199311-199508

BLACK,TRIM2#

main71065-2B380-C0iST205199402-199508

BLACK,TRIM2#

main71065-2B500-C0iST205199402-199508

LEATHER,BLACK,TRIM2#

main71065-2B530-C0iST204199508-199712

BLACK,TRIM2#

main71065-2B540-C1iST202..GEN199508-199712

BLACK,TRIM2#

main71065-2B541-C2iST202..GEN199712

BLACK,TRIM2#

main71065-2B560-C0iST205199508-199712

BLACK,TRIM2#

main71065-2B610-C0iST205199508

LEATHER,BLACK,TRIM2#

main71065-2B800-C0iST204199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B870-C0iST205199712

BLACK,TRIM2#

main71065-2B880-C0iST204199712

SHADOW GRAY,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2G200-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71077-2G230-C0iST204199311-199508

BLACK,TRIM2#

main71077-2G370-C1iST202..RHD199505-199508

BLACK,TRIM2#

main71077-2G380-C0iST205199402-199606

LEATHER,BLACK,TRIM2#

main71077-2G390-C0iST20#199508-199606

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71077-2G410-C0iST204199508-199606

BLACK,TRIM2#

main71077-2G411-C0iST204199606-199712

GRAY,TRIM2#

main71077-2G420-C1iST202..GEN199508-199606

BLACK,TRIM2#

sub71077-2G450

main71077-2G421-C1iST202..GEN199606-199712

BLACK,TRIM2#

main71077-2G422-C2iST202..GEN199712

BLACK,TRIM2#

main71077-2G690-C0iST205199606-199712

BLACK,TRIM2#

sub71077-2G670

main71077-2G691-C1iST205199712

BLACK,TRIM2#

main71077-2G700-C0iST205199606

LEATHER,BLACK,TRIM2#

main71077-2G720-C0iST202,204199606-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71077-2G721-C2iST204199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71077-2G392

main71077-2G850-C0iST204199901-199907

SX-R(AUSTRALIA),BLACK,TRIM20

sub71077-2G840

main71077-2G870-C0iST204199712

SHADOW GRAY,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B180-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71078-2B210-C0iST204199311-199508

BLACK,TRIM2#

main71078-2B220-C1iST202199311-199508

BLACK,TRIM2#

main71078-2B310-C0iST205199402-199606

LEATHER,BLACK,TRIM2#

main71078-2B330-C0iST20#199508-199606

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71078-2B350-C0iST204199508-199606

BLACK,TRIM2#

main71078-2B351-C0iST204199606-199712

GRAY,TRIM2#

main71078-2B360-C1iST202..GEN199508-199606

BLACK,TRIM2#

sub71078-2B390

main71078-2B361-C1iST202..GEN199606-199712

BLACK,TRIM2#

main71078-2B362-C2iST202..GEN199712

BLACK,TRIM2#

main71078-2B530-C0iST205199606-199712

BLACK,TRIM2#

sub71078-2B510

main71078-2B531-C1iST205199712

BLACK,TRIM2#

main71078-2B540-C0iST205199606

LEATHER,BLACK,TRIM2#

main71078-2B560-C0iST202,204199606-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71078-2B561-C2iST204199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71078-2B332

main71078-2B660-C0iST204199809-199812

SX-R(AUSTRALIA),BLACK,TRIM2#

sub71078-2B650

main71078-2B670-C0iST204199712

SHADOW GRAY,TRIM2#

71147ASILENCER, REAR SEAT SPRING

main71147-16020iST202,204199311-199508

71202BPANEL, REAR SEATBACK

main71202-20030iST20#199311-199606

RH

main71203-20040iST20#199311-199606

LH

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20080iST20#199311-199606

main71303-20140iST20#199606

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-20080iST20#199311-199606

main71303-20140iST20#199606

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20180iST20#199311-199606

main71305-20220iST202,204199606

main71305-20230iST205199606

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2D140-C0iST204199712

***,BLACK,TRIM2#

main71460-2D150-C0iST205199712

***,BLACK,TRIM2#

main71460-2D160-C0iST204199712

***,SHADOW GRAY,TRIM2#

main71560-2B450-C1iST202,204199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71560-2B470-C0iST202,204199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71560-2B471-C2iST204199809-199812

***,SX-R(AUSTRALIA),BLACK,TRIM2#

main71560-2B500-C1iST204199311-199508

***,BLACK,TRIM2#

main71560-2B510-C1iST202199311-199508

***,BLACK,TRIM2#

main71560-2B520-C0iST205199402-199508

***,BLACK,TRIM2#

main71560-2B650-C0iST205199402-199508

***,LEATHER,BLACK,TRIM2#

main71560-2B680-C1iST204199508-199712

***,BLACK,TRIM2#

main71560-2B690-C1iST202..GEN199508-199712

***,BLACK,TRIM2#

main71560-2B691-C2iST202..GEN199712

***,BLACK,TRIM2#

main71560-2B720-C0iST205199508-199712

***,BLACK,TRIM2#

main71560-2B740-C0iST205199508

***,LEATHER,BLACK,TRIM2#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2G570-C1iST202,204199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71480-2G610-C1iST204199311-199508

***,BLACK,TRIM2#

main71480-2G620-C1iST202199311-199508

***,BLACK,TRIM2#

main71480-2G710-C0iST205199402-199508

***,BLACK,TRIM2#

main71480-2G770-C1iST204199508-199606

***,BLACK,TRIM2#

main71480-2G771-C1iST204199606-199712

***,GRAY,TRIM2#

main71480-2G870-C0iST205199402-199508

***,LEATHER,BLACK,TRIM2#

main71480-2G880-C1iST202..GEN199508-199606

***,BLACK,TRIM2#

main71480-2G881-C1iST202..GEN199606-199712

***,BLACK,TRIM2#

main71480-2G882-C2iST202..GEN199712

***,BLACK,TRIM2#

main71480-2G890-C0iST202,204199508-199606

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71480-2G891-C0iST202,204199606-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71480-2G892-C2iST204199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71480-2H090-C0iST205199508-199606

***,BLACK,TRIM2#

main71480-2H091-C0iST205199606-199712

***,BLACK,TRIM2#

main71480-2H092-C1iST205199712

***,BLACK,TRIM2#

main71480-2H100-C0iST205199508-199606

***,LEATHER,BLACK,TRIM2#

main71480-2H101-C0iST205199606

***,LEATHER,BLACK,TRIM2#

main71480-2H440-C0iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71480-2H460-C0iST204199712

***,SHADOW GRAY,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2B430-C1iST202,204199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71490-2B470-C1iST204199311-199508

***,BLACK,TRIM2#

main71490-2B480-C1iST202199311-199508

***,BLACK,TRIM2#

main71490-2B560-C0iST205199402-199508

***,BLACK,TRIM2#

main71490-2B700-C0iST205199402-199508

***,LEATHER,BLACK,TRIM2#

main71490-2B780-C1iST204199508-199606

***,BLACK,TRIM2#

main71490-2B781-C1iST204199606-199712

***,GRAY,TRIM2#

main71490-2B790-C1iST202..GEN199508-199606

***,BLACK,TRIM2#

main71490-2B791-C1iST202..GEN199606-199712

***,BLACK,TRIM2#

main71490-2B792-C2iST202..GEN199712

***,BLACK,TRIM2#

main71490-2B800-C0iST202,204199508-199606

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71490-2B801-C0iST202,204199606-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71490-2B802-C2iST204199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71490-2B890-C0iST205199508-199606

***,BLACK,TRIM2#

main71490-2B891-C0iST205199606-199712

***,BLACK,TRIM2#

main71490-2B892-C1iST205199712

***,BLACK,TRIM2#

main71490-2D010-C0iST205199508-199606

***,LEATHER,BLACK,TRIM2#

main71490-2D011-C0iST205199606

***,LEATHER,BLACK,TRIM2#

main71490-2D220-C0iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71490-2D230-C0iST204199712

***,SHADOW GRAY,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-20070iST202,204199311

main71503-20080iST205199402

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-20230iST20#199311-199606

main71651-20750iST20#199606

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-20050iST20#199311-199606

main71652-20490iST20#199606

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-20250-C0iST202,204199311-199606

BLACK,TRIM2#

main71880-20270-C0iST205199402-199606

BLACK,TRIM2#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05083×2iST202,204199311-199606

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-20180-C0iST202,204199311-199606

BLACK,TRIM2#

main71890-20200-C0iST205199402-199606

BLACK,TRIM2#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20040iST20#199311-199508

main72067-20070iST20#199508-199606

main72067-20080iST20#199606

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20040iST20#199311-199508

main72068-20070iST20#199508-199606

main72068-20080iST20#199606

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-20190iST20#199311-199606

main72630-20230iST20#199606

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-20180iST20#199311-199606

main72640-20230iST20#199606

72610ASTRIKER ASSY, REAR SEATBACK LOCK

main72601-20050×2iST20#199311

sub72610-20020

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-C0×2iST20#199311

BLACK,TRIM2#

72653ASNAP, REAR SEATBACK LOCK ROD

main69759-24010iST20#199311

WHITE

main69759-24020iST20#199311

BLUE

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-12010-C0×2iST20#199311-199908

BLACK,TRIM2#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-20020-C0×2iST20#199311

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060×2iST20#199311

9010508072

main90105-08072

9010508102

main90105-08102

9011908747

main90119-08747

904670502022

main90467-0502022

9046706016C0

main90467-06016C0

9046818071

main90468-18071

9050608003

main90506-08003

9151260816

main91512-60816

9162140608

main91621-40608

9165660616

main91656-60616

9353054010

main93530-54010

9356054012

main93560-54012

39 parts on this diagram · 2 diagrams in section
