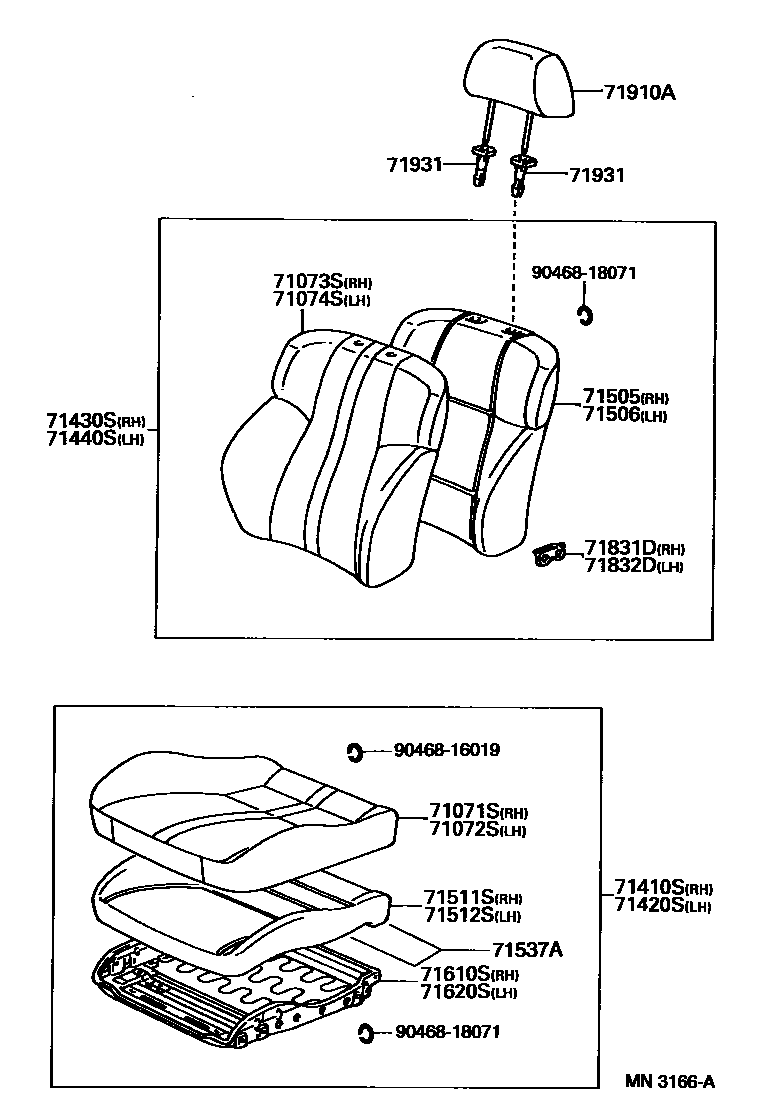

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2G500-C0iST204199311-199508

BLACK,TRIM1#

sub71071-2G500

main71071-2G510-C1iST202..LHD199311-199508

BLACK,TRIM2#

main71071-2G540-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71071-2G630-C0iST205199402

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71071-2G640-C1iST202..LHD..GEN199508-199712

BLACK,TRIM2#

main71071-2G641-C2iST202..LHD..GEN199712

BLACK,TRIM2#

main71071-2G650-C1iST20#..RHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71071-2G660-C0iST204199508-199712

BLACK,TRIM2#

main71071-2G670-C0iST202..RHD199508-199712

BLACK,TRIM2#

main71071-2G671-C1iST202..RHD199712

BLACK,TRIM2#

main71071-2G730-C1iST202..LHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71071-2G730

main71071-2H100-C0iST204199809-199812

SX-R(AUSTRALIA),BLACK,TRIM2#

main71071-2H100-C0iST204199901-199907

SX-R(AUSTRALIA),BLACK,TRIM20

main71071-2H100-C0iST202..RHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71071-2H110-C0iST204,205199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71071-2H130-C0iST202..LHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71071-2H190-C0iST204199712

SHADOW GRAY,TRIM2#

main71072-2G060-C1iST202..RHD199311-199508

BLACK,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-2G510-C1iST202..RHD199311-199508

BLACK,TRIM2#

main71071-2G630-C0iST205199402-199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71072-2D870-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71072-2G020-C2iST204199311-199508

BLACK,TRIM2#

main71072-2G050-C0iST202..RHD199508-199712

BLACK,TRIM2#

main71072-2G051-C1iST202..RHD199712

BLACK,TRIM2#

main71072-2G060-C1iST202..LHD199311-199508

BLACK,TRIM2#

main71072-2G080-C0iST202..LHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71072-2G080

main71072-2G090-C1iST20#..RHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71072-2G091-C2iST204,205199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71072-2G150-C0iST204199508-199712

BLACK,TRIM2#

main71072-2G160-C1iST202..LHD..GEN199508-199712

BLACK,TRIM2#

main71072-2G161-C2iST202..LHD..GEN199712

BLACK,TRIM2#

main71072-2G170-C1iST205199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71072-2G400-C0iST204199712

SHADOW GRAY,TRIM2#

main71072-2G440-C0iST204199809-199812

SX-R(AUSTRALIA),BLACK,TRIM2#

main71072-2G440-C0iST202..RHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71072-2G440-C0iST204199901-199907

SX-R(AUSTRALIA),BLACK,TRIM20

main71072-2G450-C0iST202..LHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2G350-C0iST204199311-199508

BLACK,TRIM2#

main71073-2G360-C1iST202199311-199508

BLACK,TRIM2#

main71073-2G390-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G480-C0iST205199402-199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71073-2G520-C1iST20#..RHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G521-C3iST202..RHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G540-C0iST204199508-199712

BLACK,TRIM2#

main71073-2G550-C0iST202..RHD199508-199712

BLACK,TRIM2#

main71073-2G551-C1iST202..RHD199712

BLACK,TRIM2#

main71073-2G590-C1iST202..LHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G591-C3iST202..LHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G620-C1iST205199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

sub71073-2G810

main71073-2G640-C1iST202..GEN199508

W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

main71073-2G641-C2iST202..LHD..GEN199712

BLACK,TRIM2#

main71073-2G830-C1iST202..LHD..GEN199508-199712

BLACK,TRIM2#

main71073-2H100-C0iST204,205199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2H140-C0iST204199809-199812

SX-R(AUSTRALIA),BLACK,TRIM2#

main71073-2H210-C0iST204199712

SHADOW GRAY,TRIM2#

main71073-2H240-C0iST204199901-199907

SX-R(AUSTRALIA),BLACK,TRIM20

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-2G360-C1iST202199311-199508

BLACK,TRIM2#

main71073-2G480-C0iST205199402-199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71073-2G580-C3iST205199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

sub71073-2G580

main71073-2G590-C1iST20#..RHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G591-C3iST202..RHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G630-C0iST204199508-199712

BLACK,TRIM2#

main71073-2G640-C1iST202..GEN199508-199712

W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

main71073-2G641-C2iST202..RHD199712

W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

main71073-2G800-C1iST202..LHD199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G801-C2iST202..LHD199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2G830-C1iST202..LHD..GEN199508-199712

BLACK,TRIM2#

main71073-2G831-C2iST202..LHD..GEN199712

BLACK,TRIM2#

main71073-2H140-C0iST204,205199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71073-2H220-C0iST204199712

SHADOW GRAY,TRIM2#

main71074-2D840-C0iST20#199311-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71074-2D840

main71074-2D870-C2iST204199311-199508

BLACK,TRIM2#

main71074-2G240-C0iST204199901-199907

SX-R(AUSTRALIA),BLACK,TRIM20

main71074-2G240-C0iST204199809-199812

SX-R(AUSTRALIA),BLACK,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2G580-C1iST202..LHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71410-2G580

main71410-2H140-C1iST202..LHD199311-199508

***,BLACK,TRIM2#

main71410-2H150-C1iST20#..RHD199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71410-2H240-C1iST202..LHD199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71410-2H260-C0iST204199311-199508

***,BLACK,TRIM2#

main71410-2H310-C0iST204199508-199712

***,BLACK,TRIM2#

main71410-2H330-C1iST20#..RHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71410-2H350-C0iST202..RHD199508-199712

***,BLACK,TRIM2#

main71410-2H351-C1iST202..RHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71410-2H370-C1iST202..LHD..GEN199508-199712

***,BLACK,TRIM2#

main71410-2H371-C2iST202..LHD..GEN199712

***,BLACK,TRIM2#

main71410-2H670-C0iST202..RHD199712

***,BLACK,TRIM2#

main71410-2H670-C2iST204199809-199812

***,SX-R(AUSTRALIA),BLACK,TRIM2#

main71410-2H670-C2iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71410-2H680-C0iST202..LHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71410-2H690-C0iST204,205199712

***,BLACK,TRIM2#

main71410-2H750-C0iST204199712

***,SHADOW GRAY,TRIM2#

main71420-2G660-C1iST202..RHD199311-199508

***,BLACK,TRIM2#

main71420-2G830-C1iST205199402-199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

sub71420-2G830

main71420-2G830-C3iST205199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

sub71420-2G830

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-2H140-C1iST202..RHD199311-199508

***,BLACK,TRIM2#

main71410-2H300-C1iST205199402-199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71420-2G210-C0iST202..RHD199508-199712

***,BLACK,TRIM2#

main71420-2G211-C1iST202..RHD199712

***,BLACK,TRIM2#

main71420-2G660-C1iST202..LHD199311-199508

***,BLACK,TRIM2#

main71420-2G670-C1iST20#..RHD199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71420-2G760-C1iST202..LHD199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71420-2G780-C0iST204199311-199508

***,BLACK,TRIM2#

main71420-2G860-C0iST204199508-199712

***,BLACK,TRIM2#

main71420-2G870-C1iST20#..RHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71420-2G871-C2iST204,205199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71420-2H010-C1iST202..LHD..GEN199508-199712

***,BLACK,TRIM2#

main71420-2H011-C2iST202..LHD..GEN199712

***,BLACK,TRIM2#

main71420-2H020-C1iST205199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71420-2H030-C0iST202..LHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

sub71420-2H030

main71420-2H290-C0iST204199712

***,SHADOW GRAY,TRIM2#

main71420-2H320-C0iST204199809-199812

***,SX-R(AUSTRALIA),BLACK,TRIM2#

main71420-2H320-C0iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71420-2H320-C0iST202..RHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71420-2H340-C0iST202..LHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-20050-C0iST204,205199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71040-20140-C0iST204199712

***,BLACK,TRIM2#

main71040-20150-C0iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71040-20150-C0iST204199809-199812

***,SX-R(AUSTRALIA),BLACK,TRIM2#

main71430-2H010-C2iST204199311-199508

***,BLACK,TRIM2#

main71430-2H020-C1iST202199311-199508

***,BLACK,TRIM2#

main71430-2H030-C1iST20#199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H190-C1iST205199402-199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71430-2H220-C1iST20#..RHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H221-C3iST202..RHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H240-C0iST202..RHD199508-199712

***,BLACK,TRIM2#

main71430-2H241-C1iST202..RHD199712

***,BLACK,TRIM2#

main71430-2H250-C1iST202..LHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H251-C3iST202..LHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H280-C1iST202..LHD..GEN199508-199712

***,BLACK,TRIM2#

main71430-2H281-C3iST202..LHD..GEN199712

***,BLACK,TRIM2#

main71430-2H300-C0iST204199508-199712

***,BLACK,TRIM2#

main71430-2H320-C1iST205199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71040-20020-C0iST204,205199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71040-20120-C0iST204199712

***,SHADOW GRAY,TRIM2#

main71070-20040-C0iST204199809-199812

***,SX-R(AUSTRALIA),BLACK,TRIM2#

main71070-20040-C0iST204199901-199907

***,SX-R(AUSTRALIA),BLACK,TRIM20

main71430-2H020-C1iST202199311-199508

***,BLACK,TRIM2#

main71430-2H120-C1iST20#199311-199508

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H140-C2iST204199311-199508

***,BLACK,TRIM2#

main71430-2H190-C1iST205199402-199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71430-2H250-C1iST20#..RHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H251-C3iST202..RHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H270-C2iST204199508-199712

***,BLACK,TRIM2#

sub71430-2H270

main71430-2H280-C1iST202..RHD199508-199712

***,BLACK,TRIM2#

main71430-2H281-C3iST202..RHD199712

***,BLACK,TRIM2#

main71430-2H290-C2iST205199508

***,W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

sub71430-2H290

main71430-2H580-C0iST202..LHD199508-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H581-C1iST202..LHD199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71430-2H610-C1iST202..LHD..GEN199508-199712

***,BLACK,TRIM2#

main71430-2H611-C2iST202..LHD..GEN199712

***,BLACK,TRIM2#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-20280iST202,204199311-199508

main71505-20290iST20#199311-199508

W(SPORTS SEAT)

main71505-20360iST202..LHD199508

W(SPORTS SEAT & FABRIC SEAT)

main71505-20370iST202..LHD..GEN199508

main71505-20410iST20#..RHD199508

W(SPORTS SEAT & FABRIC SEAT)

main71505-20420iST202,204..RHD199508

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-20280iST202,204199311-199508

main71505-20290iST20#199311-199508

W(SPORTS SEAT)

main71505-20360iST20#199508

W(SPORTS SEAT & FABRIC SEAT)

main71505-20370iST202,204..ARL,GEN199508

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20680iST20#199311-199508

main71511-20730iST202..LHD199508

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-20680iST20#199311-199508

main71511-20720iST202..LHD199508

main71511-20730iST20#..RHD199508

71537APROTECTOR, FRONT SEAT CUSHION

main71537-20090iST20#..RHD199508

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20520iST202..LHD199311-199508

main71610-20530iST20#..RHD199311

main71610-20550iST202..LHD199508

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-20520iST20#..RHD199311-199508

main71610-20530iST202..LHD199311-199508

main71610-20540iST202..LHD199508

main71610-20550iST20#..RHD199508

71831DCOVER, FRONT SEAT HINGE, RH

main71831-20030iST20#199311-199508

71832DCOVER, FRONT SEAT HINGE, LH

main71832-20010iST20#199311-199508

71910AHEADREST ASSY, FRONT SEAT

main71910-2B760-C0iST20#199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71910-2B770-C0iST202,204199311-199507

BLACK,TRIM2#

main71910-2B771-C0iST202,204199507-199508

BLACK,TRIM2#

main71910-2B800-C1iST20#199311-199507

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71910-2B801-C1iST20#199507-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71910-2B860-C0iST202,204..ARL,GEN199508

BLACK,TRIM2#

main71910-2B880-C0iST205199402-199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

main71910-2D150-C0iST205199508

W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-12070-C0iST20#199311-199412

W(LOCK),BLACK,TRIM2#

sub71930-12070

sub71930-10070

main71930-20120-C0iST20#199508-199703

W(LOCK),BLACK,TRIM2#

sub71930-21050

sub71930-20120

main71930-21050-C0iST20#199703

W(LOCK),BLACK,TRIM2#

sub71930-21050

main71930-32020-C0iST20#199412-199703

W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

sub71930-32020

main71930-44010-C0iST20#199703

W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

sub71930-44010

main71931-12040-C0iST20#199311-199412

W/O(LOCK),BLACK,TRIM2#

sub71931-12040

sub71931-10020

main71931-20080-C0iST20#199508

W/O(LOCK),BLACK,TRIM2#

sub71931-20080

main71931-32020-C0iST20#199412

W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#

sub71931-32020

9046816019

main90468-16019

9046818071

main90468-18071

21 parts on this diagram · 5 diagrams in section
