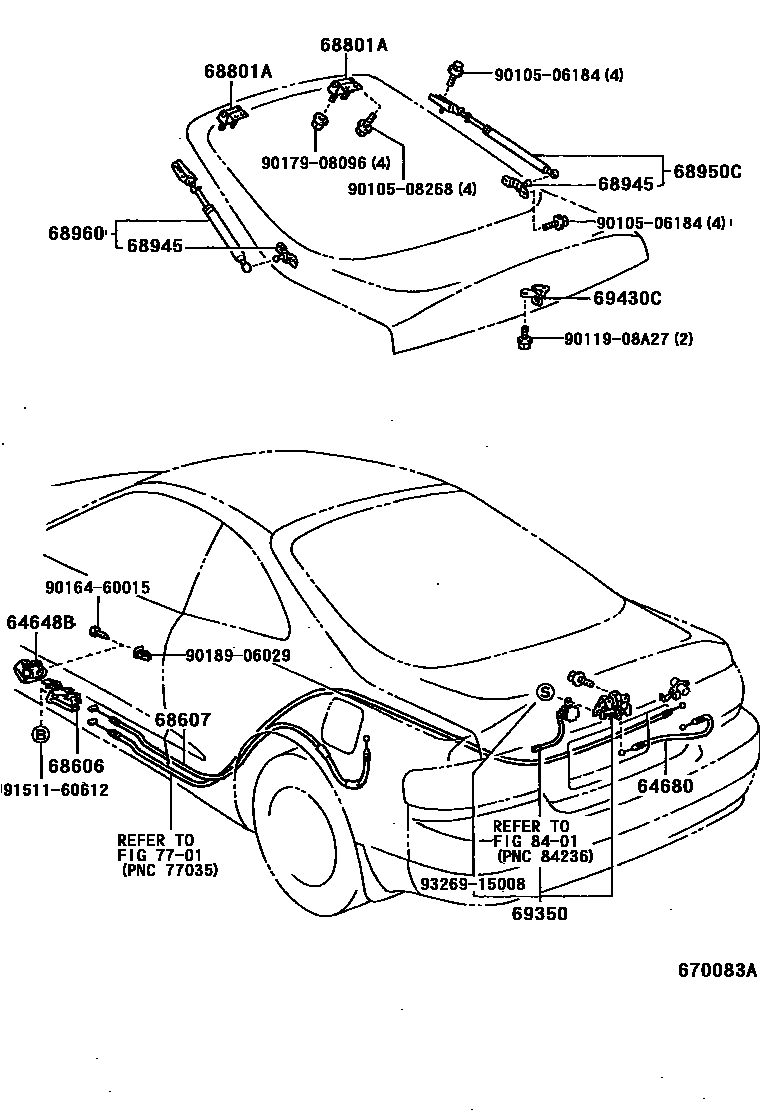

BACK DOOR LOCK & HANDLE

64648BGROMMET, BACK DOOR LOCK OPENER

main64648-20010iST202..LHD199311

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-20170iST20#199311-199712

main64680-20190iST20#199712

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20120iST20#..RHD199311-199508

sub64606-20121

main64606-20121iST20#..RHD199508

main64606-20170iST202..LHD199311-199508

sub64606-20171

main64606-20171iST202..LHD199508

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20860iST20#..RHD199311

main64607-20870iST202..LHD199311

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-20080iST20#199311

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-20050iST20#199311

68950CSTAY ASSY, BACK DOOR, RH

main68950-80026iST20#199311-199802

W(REAR SPOILER)

sub68950-80067

main68950-80028iST202,204199311-199804

sub68950-80068

main68950-80067iST20#199802

W(REAR SPOILER)

main68950-80068iST202,204199804

68960STAY ASSY, BACK DOOR, LH

main68960-29895iST20#199311-199802

W(REAR SPOILER)

sub68960-80019

main68960-80002iST202,204199311-199804

sub68960-80020

main68960-80019iST20#199802

W(REAR SPOILER)

main68960-80020iST202,204199804

69350LOCK ASSY, BACK DOOR

main69350-20080iST20#199311-199712

main69350-20111iST20#199712-199809

sub69350-20112

main69350-20112iST20#199809

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-14100iST20#199311-199712

main69430-14110iST20#199712

7701

8401

9010506184

main90105-06184

9010508268

main90105-08268

9011908A27

main90119-08A27

9016460015

main90164-60015

9017908096

main90179-08096

9018906029

main90189-06029

9151160612

main91511-60612

9326915008

main93269-15008

20 parts on this diagram · 1 diagram in section
