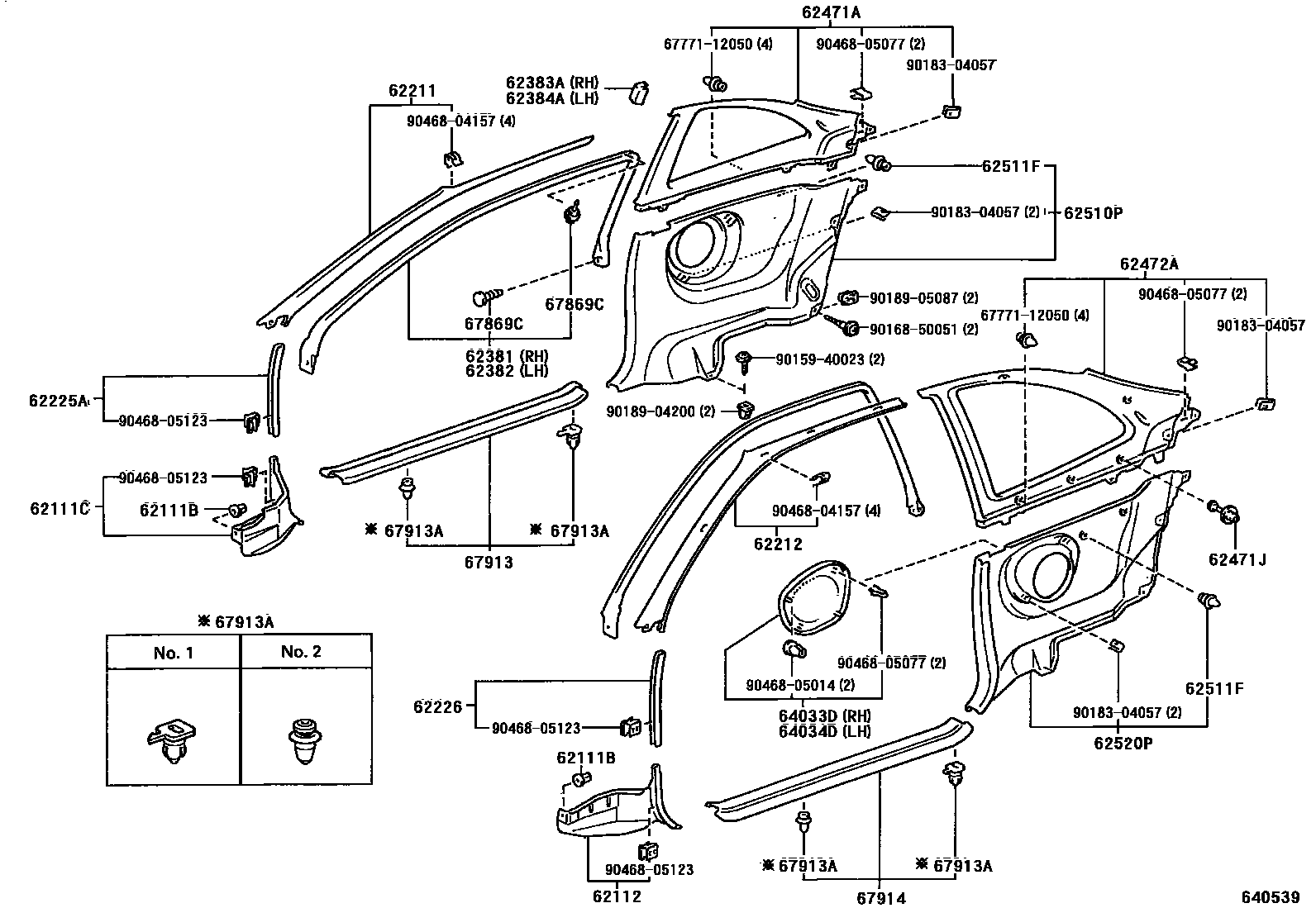

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
BLACK,TRIM2#
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62225AGARNISH, FRONT PILLAR, LOWER RH
62226GARNISH, FRONT PILLAR, LOWER LH
62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH
62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM2#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
BLACK,TRIM2#
BLACK,TRIM2#
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
BLACK,TRIM2#
BLACK,TRIM2#
64033DGRILLE SUB-ASSY, REAR SPEAKER, RH
BLACK,TRIM2#
64034DGRILLE SUB-ASSY, REAR SPEAKER, LH
BLACK,TRIM2#
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9015940023
main90159-40023
9016850051
main90168-50051
9018304057
main90183-04057
9018904200
main90189-04200
9018905087
main90189-05087
9046804157
main90468-04157
9046805014
main90468-05014
9046805077
main90468-05077
9046805123
main90468-05123
33 parts on this diagram · 1 diagram in section
