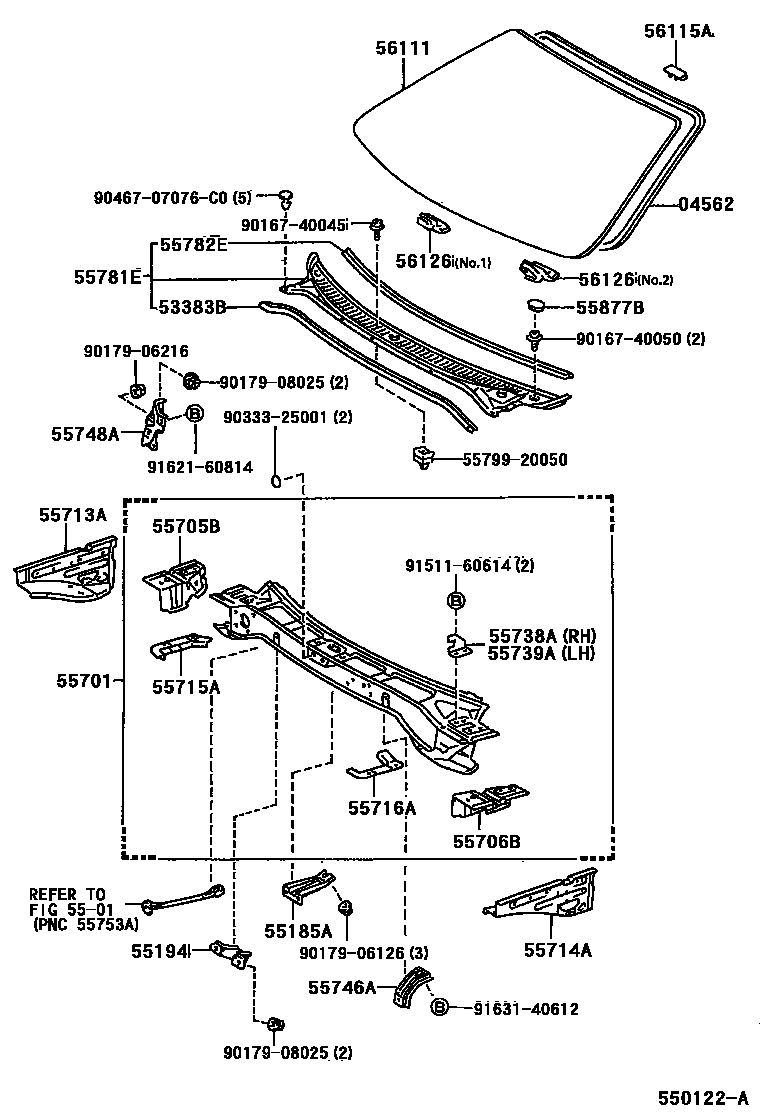

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
5501
55185ABRACE, DASH PANEL TO COWL
55194PLATE, PEDAL SUPPORT TO COWL
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55746AREINFORCEMENT, COWL TOP, INNER LOWER
55748ABRACE, COWL TOP INNER TO PILLAR
55782EPROTECTOR, COWL TOP VENTILATOR LOUVER
55877BCOVER, COWL VENT, RH
56111GLASS, WINDSHIELD
*TL,T=4.76,BLUE,W(TOP SHADE)
*TL,T=4.76,GREEN
*TL,T=4.76,GREEN
*TL,T=4.76,GREEN,W(TOP SHADE)
*TL,T=4.76,GREEN,W(TOP SHADE)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
5579920050COVER, WIPER MOTOR
main55799-20050
9016740045
main90167-40045
9016740050
main90167-40050
9017906126
main90179-06126
9017906216
main90179-06216
9017908025
main90179-08025
9033325001
main90333-25001
9046707076C0
main90467-07076C0
9151160614
main91511-60614
9162160814
main91621-60814
9163140612
main91631-40612
33 parts on this diagram · 1 diagram in section
