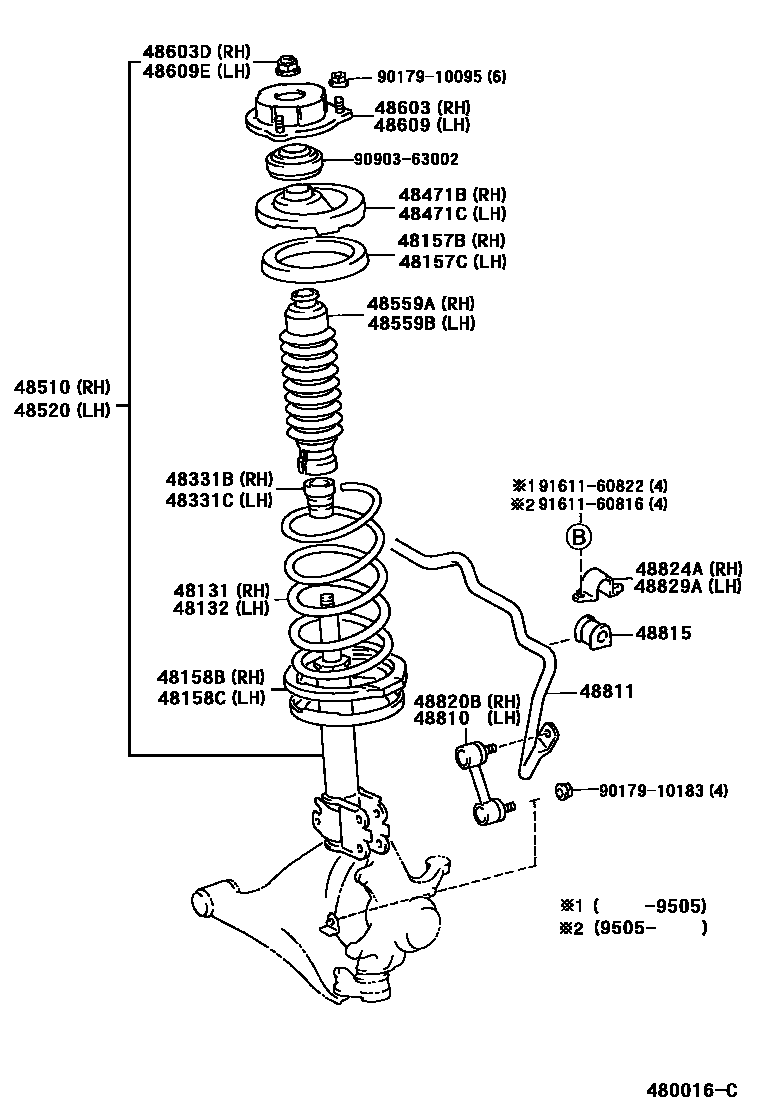

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-2S720iST202..MTM199311

main48131-2S740iST202..ATM;ST204..MTM199311

main48131-2S760iST204..ATM199311

main48131-2T110iST205199402

48132SPRING, FRONT COIL, LH

main48131-2S720iST202,204..MTM199311

main48131-2S740iST202,204..ATM199311

main48131-2T110iST205199402

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-20150iST202,204199311

main48157-20160iST205199402

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-20150iST202,204199311

main48157-20160iST205199402

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-20100iST20#199311

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-20100iST20#199311

48331BBUMPER, FRONT SPRING, RH

main48331-20110iST20#199311

48331CBUMPER, FRONT SPRING, LH

main48331-20110iST20#199311

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-20050iST205199402

main48471-20060iST202,204199311

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-20050iST205199402

main48471-20060iST202,204199311

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29235iST204199311-199801

main48510-29236iST204199801

sub48510-80219

main48510-29245iST202199311-199801

main48510-29246iST202199801

sub48510-80219

main48510-29285iST205199402

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29075iST204199311-199801

main48520-29076iST204199801

sub48520-80045

main48520-29085iST202199311-199801

main48520-29086iST202199801

sub48520-80045

main48520-29125iST205199402

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-20080iST202,204199311

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-20080iST202,204199311

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20240iST205199402

main48609-20390iST202,204199311-199409

main48609-20401iST202,204199409

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iST202,204199311

main94182-11400iST205199402

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20240iST205199402

main48609-20390iST202,204199311-199409

main48609-20401iST202,204199409

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iST202,204199311

main94182-11400iST205199402

48810LINK ASSY, FRONT STABILIZER, LH

main48820-20060iST205199402

main48820-33010iST202,204199311

48811BAR, STABILIZER, FRONT

main48811-20840iST202,204199311

main48811-20880iST205199402

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20270×2iST205199402

main48815-30040×2iST202,204199311

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20060iST205199402

main48820-33010iST202,204199311

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12040iST20#199311

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-12040iST20#199311

9017910095

main90179-10095

9017910183

main90179-10183

9090363002

main90903-63002

9161160816

main91611-60816

9161160822

main91611-60822

29 parts on this diagram · 2 diagrams in section
