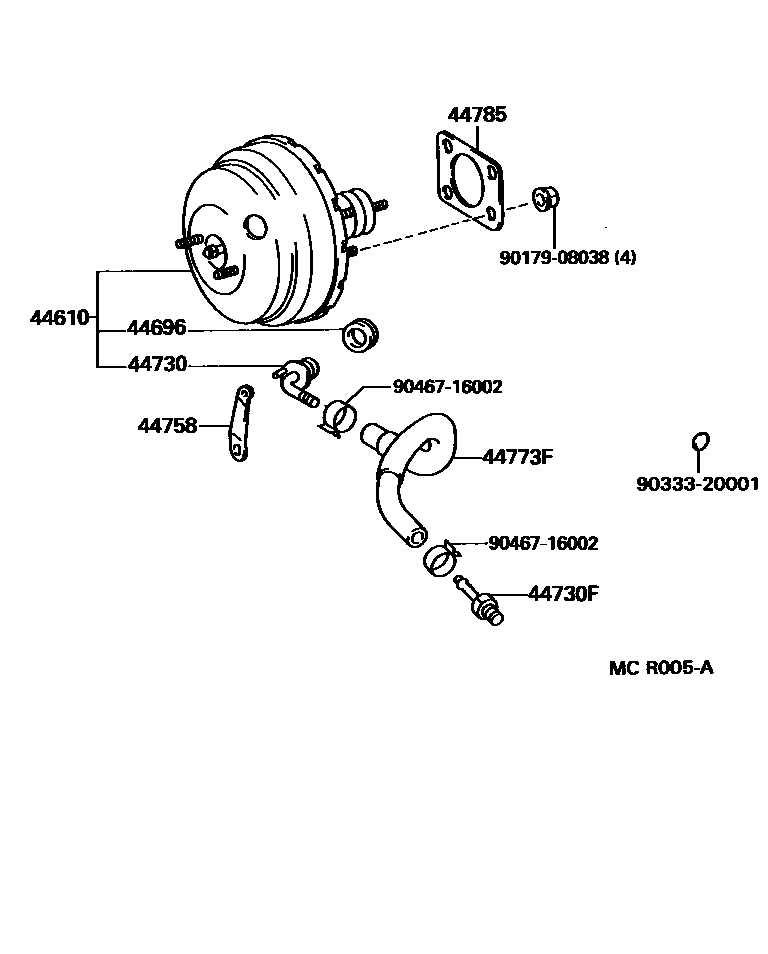

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-2D140iST202..LHD199408

main44610-2D460iST202..LHD199408

W(ABS)

main44610-2D590iST202..LHD199311-199408

main44610-2D610iST205199402-199405

main44610-2D640iST202,204..RHD199311

main44610-2D670iST202..LHD199311-199408

W(ABS)

main44610-2D720iST205199405

44696GROMMET, CHECK VALVE

main90480-24015iST205;ST202..LHD199405

main90480-24439iST20#199311-199405

W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST20#199311-199405

W(ABS)

main44730-28010iST202..LHD199311-199405

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51046iST205199402

main90404-51319iST202,204199311

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iST202..LHD199311

main44758-20280iST20#..RHD199311

44773FHOSE, UNION TO CHECK VALVE

main44773-2B020iST202,204..RHD199311

main44773-2B030iST205199402

44785GASKET, BRAKE BOOSTER

main44785-20020iST20#199311

9017908038

main90179-08038

9033320001

main90333-20001

9046716002

main90467-16002

10 parts on this diagram · 2 diagrams in section
