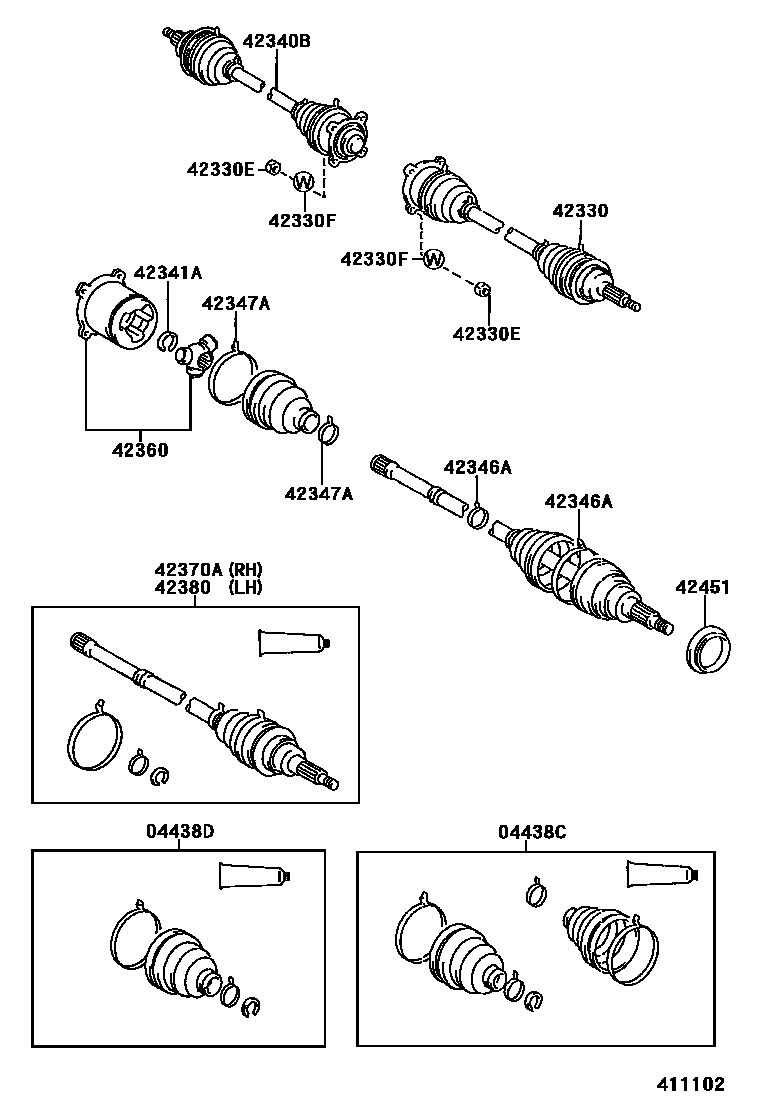

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-20020iST205199402-199906

main04437-20021iST205199906-199908

sub04427-27020

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-28011iST205199402-199906

sub04437-28021

main04438-28012iST205199906-199908

sub04437-28021

42330SHAFT ASSY, REAR DRIVE, RH

main42340-20040iST205199402-199712

sub42340-20041

sub90178-22001

main42340-20041iST205199712-199908

42330ENUT(FOR REAR DRIVE SHAFT)

main90170-10191iST205199402

42330FWASHER(FOR REAR DRIVE SHAFT)

main94511-01000iST205199402

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-20040iST205199402-199712

sub42340-20041

sub90178-22001

main42340-20041iST205199712-199908

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028iST205199402-199908

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iST205199402-199908

ID=35.75

main90949-01339iST205199402-199908

ID=102.2

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iST205199402-199908

ID=35.75

main42345-30010iST205199402-199908

ID=99.9

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-20010iST205199906-199908

sub42360-30040

main42360-30011iST205199402-199906

sub42360-20010

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29215iST205199402-199508

sub42370-29216

main42370-29216iST205199508-199712

sub42370-29217

sub90178-22001

main42370-29217iST205199712-199906

sub42370-29218

main42370-29218iST205199906-199908

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-29215iST205199402-199508

sub42370-29216

main42370-29216iST205199508-199712

sub42370-29217

sub90178-22001

main42370-29217iST205199712-199906

sub42370-29218

main42370-29218iST205199906-199908

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-20040iST205199402

13 parts on this diagram · 3 diagrams in section
