TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

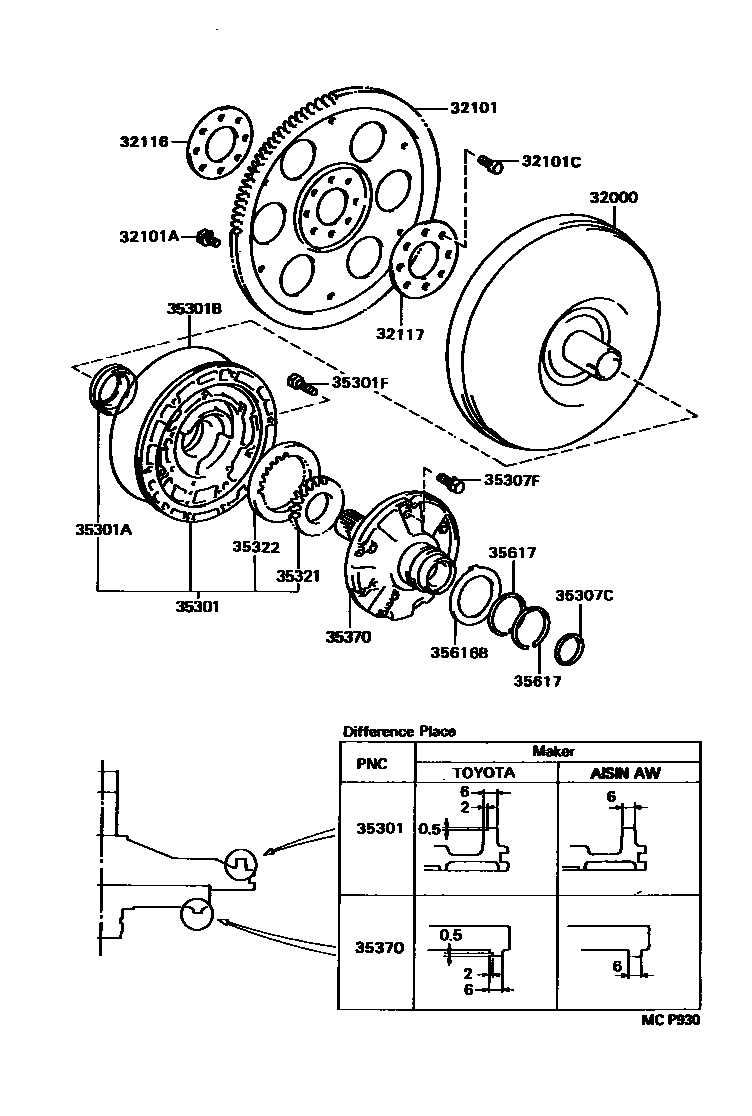

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-20190i199311-199908
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-32050i199311-199406
main32101-32051i199406
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08113i199311
*8-1.25PX12-8.4,OLIVE GREEN
main90119-08498×5i199311
*8-1.25PX12-8,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90109-10054×8i199311
32116SPACER, DRIVE PLATE, FRONT
main32116-32011i199311
32117SPACER, DRIVE PLATE, REAR
main32117-32010i199311
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-32010i199311
AISIN AW
main35035-32020i199311
TOYOTA
sub35035-32H00
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199311
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i199311
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050×7i199311
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-32020i199311-199908
T=0.8
main35789-32030i199508-199908
T=1.4
35307FBOLT (FOR STATOR SHAFT)
main90119-06180×11i199311-199512
main90119-06808×11i199512
sub90119-06559
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12070i199311
T=9.440-9.449
main35321-12080i199311
T=9.450-9.459
main35321-12090i199311
T=9.460-9.470
main35321-12100i199311
T=9.471-9.480
main35321-12110i199311
T=9.481-9.490
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12060i199311
T=9.440-9.449
main35322-12070i199311
T=9.450-9.459
main35322-12080i199311
T=9.460-9.470
main35322-12090i199311
T=9.471-9.480
main35322-12100i199311
T=9.481-9.490
35370SHAFT ASSY, STATOR
main35370-12040i199311
AISIN AW
main35370-32050i199311
TOYOTA
sub35035-32H00
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i199311
35617RING, CLUTCH DRUM OIL SEAL
main35617-32011×2i199311
