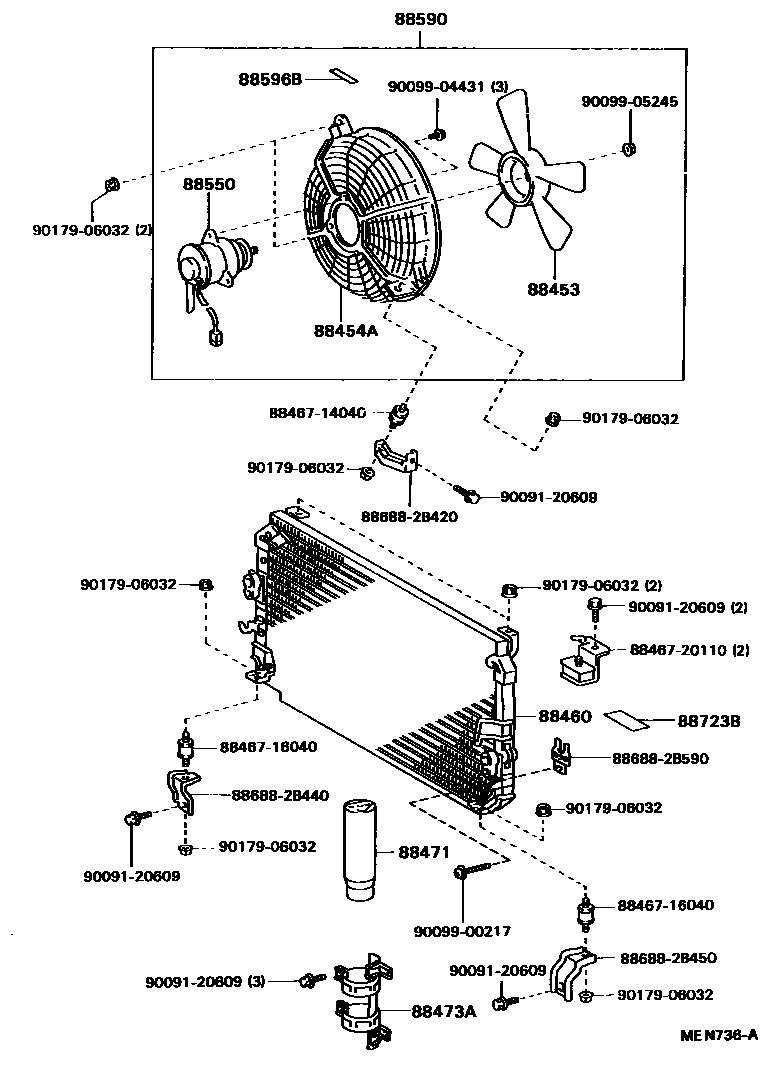

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20060iAT180,ST18#198910-199311

88454ASHROUD, FAN

main88454-20100iST185..TBO4W;AT180,ST182,184198910-199311

88460CONDENSER ASSY, COOLER

main88460-20300iAT180..RHD198911-199108

main88460-20301iAT180..RHD199108-199311

main88460-20310iAT180,ST182..LHD198911-199311

main88460-20330iST184;ST185..TBO4W198910-199311

main88460-20350iST185199108-199202

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iST185..TBO4W;AT180,ST182,184198910-199311

sub88471-16050

88473AHOLDER, RECEIVER

main88473-20070iST184,185198910-199108

main88473-20080iAT180,ST182198911-199311

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-20070iST185..TBO4W;AT180,ST182,184198910-199311

main88550-20080iST185199108-199202

88590BLOWER ASSY, W/SHROUD

main88590-20230iAT180,ST182198911-199311

main88590-20240iST184;ST185..TBO4W198910-199311

main88590-20250iST185199108-199202

88596BPLATE, CAUTION, NO.1

main88596-24010iST185..TBO4W;AT180,ST182,184198910-199311

88723BLABEL, COOLER SERVICE CAUTION

main88723-20020iAT180,ST18#198910-199311

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846716040CUSHION, COOLER CONDENSER, NO.1

main88467-16040

8846720110CUSHION, COOLER CONDENSER, NO.1

main88467-20110

886882B420BRACKET, COOLER DIAPHRAGM

main88688-2B420

886882B440BRACKET, COOLER DIAPHRAGM

main88688-2B440

886882B450BRACKET, COOLER DIAPHRAGM

main88688-2B450

886882B590BRACKET, COOLER DIAPHRAGM

main88688-2B590

9009120609

main90091-20609

9009900217

main90099-00217

9009904431

main90099-04431

9009905245

main90099-05245

9017906032

main90179-06032

21 parts on this diagram · 11 diagrams in section
