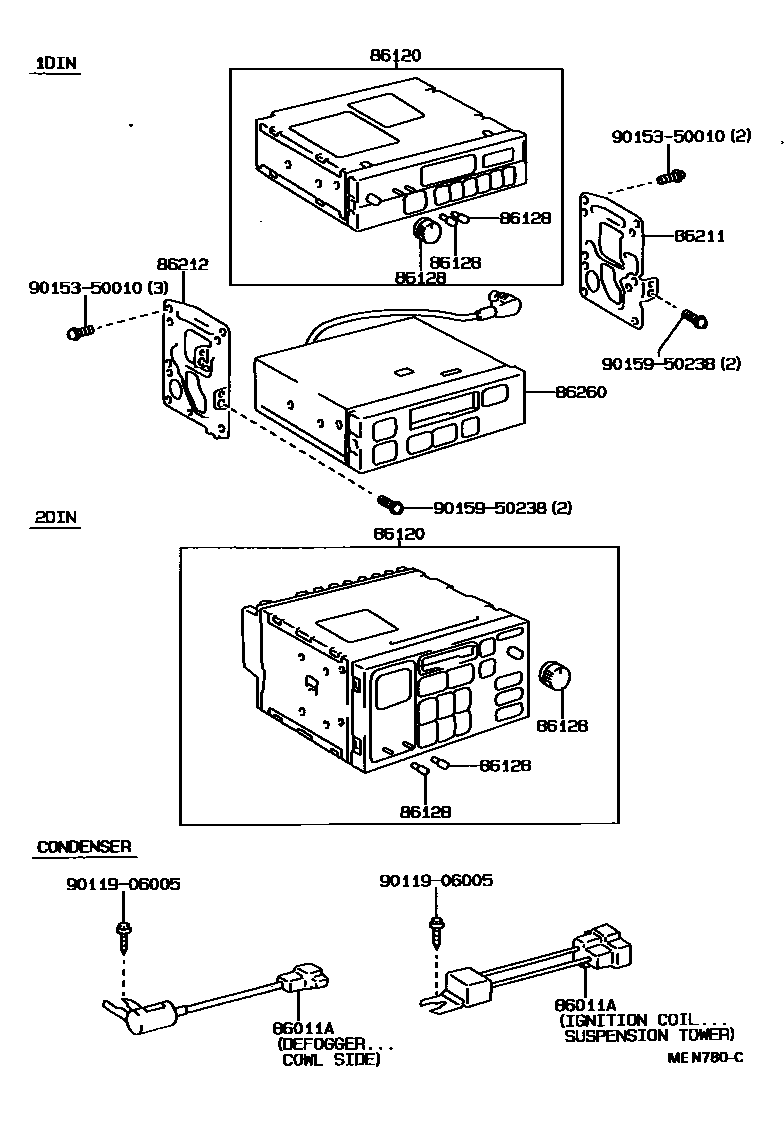

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04062iAT180,ST18#198910-199311

DEFOGGER

main90980-04071iAT180,ST18#199108-199311

IGNITION COIL

main90980-04071iAT180,ST18#198910-199108

IGNITTION COIL

86120RECEIVER ASSY, RADIO

main86120-1A020iAT180199108-199311

FUJITSU TEN,ID=12201,AM/FM MPX ETR 2SP

main86120-2B060iST182198911-199108

AM/FM MPX ETR 2SP

main86120-2B090iAT180198911-199108

FUJITSU TEN,AM/FM MPX ETR CST 4SP

main86120-2B360iAT180199108-199311

MATSUSHITA,ID=57400,AM/FM MPX ETR CST 4SP,MATSUSHITA

main86120-2B390iAT180199108-199211

FUJITSU TEN,AM/FM MPX ETR CST 2SP

main86120-2B400iAT180199108-199311

FUJITSU TEN,AM/FM MPX ETR CST 4SP,TEN

main86120-32390iAT180,ST182198911-199108

FUJITSU TEN,AM/FM MPX ETR/4-AMP

86128KNOB, RADIO RECEIVER

main86128-12360iAT180199108-199311

PWR/VOL,TEN

main86128-12360iST182199108-199311

PWR/VOL

main86128-17310iAT180199108-199311

PWR/VOL,MATSUSHITA

main86128-17330iAT180199108-199311

BAL/FADE,BASS/TREB,MATSUSHITA

main86128-28140iAT180,ST182198911-199108

PWR/VOL

main86128-28160iAT180199211-199311

BAL,BASS/TREB,TEN

main86128-28160iAT180,ST182198911-199108

BASS/TREB,BAL/FADE

main86128-28160iAT180199108-199211

BAL,BASS/TRED,TEN

main86128-28160iST182199108-199311

BAL,BASS/TREB

86211BRACKET, RADIO, NO.1

main86211-20300iAT180,ST18#198910-199311

86212BRACKET, RADIO, NO.2

main86212-20290iAT180,ST18#198910-199311

86260TAPE PLAYER ASSY

main86260-12180iAT180,ST182198911-199108

9011906005

main90119-06005

9015350010

main90153-50010

9015950238

main90159-50238

9 parts on this diagram · 1 diagram in section
