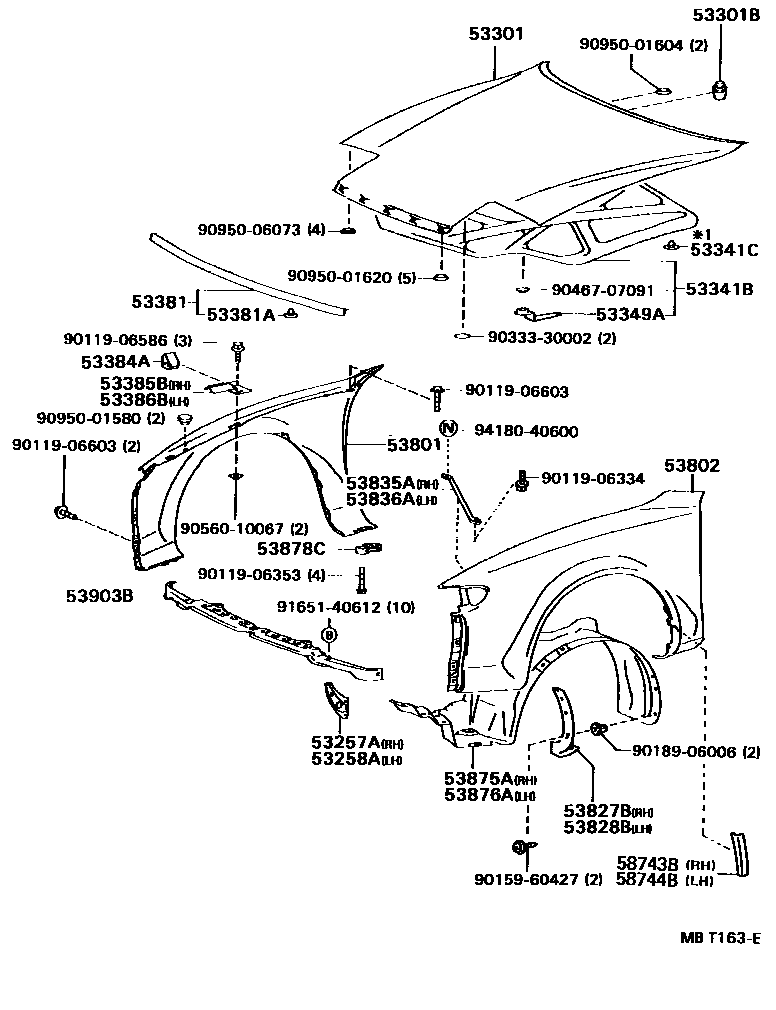

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53257ABRACKET, FRONT END PANEL MOUNTING, RH

main53257-20010iAT180,ST18#198910-199311

53258ABRACKET, FRONT END PANEL MOUNTING, LH

main53258-20010iAT180,ST18#198910-199311

53301HOOD SUB-ASSY

main53301-20320iAT180,ST182,184198910-199108

main53301-20340iST185198910-199108

main53301-20400iST185199108-199202

main53301-20410iAT180,ST182,184199108-199311

main53301-20430iST185199202-199311

53301BCUSHION, HOOD BUMPER

main90541-09055iST18#198910-198911

sub90541-09043

main90541-09077iAT180,ST18#198911-199005

sub90541-09001

53341BINSULATOR, HOOD

main53341-20170iST182,184198910-199103

main53341-20171iST182,184199103-199311

main53341-20190iST185..TBO4W198910-199311

main53341-20230iST185199108-199202

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081×12iST182,184198910-199311

TYPE A

main90467-11035iST185198910-199311

TYPE B

53349ARETAINER, HOOD INSULATOR

main53349-20020iST18#198910-199311

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20110iAT180,ST18#198910-199311

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×4iAT180,ST18#198910-199311

53384ABUMPER, FENDER TO HOOD

main53384-20030×2iAT180,ST18#198910-199311

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iAT180,ST18#198910-199311

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iAT180,ST18#198910-199311

53801FENDER SUB-ASSY, FRONT RH

main53801-2B130iAT180,ST182,184..NOB198910-199311

main53801-2B160iST184,185..WIB198910-199311

53802FENDER SUB-ASSY, FRONT LH

main53802-2B130iAT180,ST182,184..NOB198910-199311

main53802-2B160iST184,185..WIB198910-199311

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20020iAT180,ST182198911-199311

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20020iAT180,ST182198911-199311

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-20060iAT180,ST18#198910-199311

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-20060iAT180,ST18#198910-199311

53875ALINER, FRONT FENDER, RH

main53875-20170iAT180,ST182,184..NOB198910-199108

sub53875-20H00

main53875-20190iAT180,ST182,184..NOB199108-199311

main53875-20200iST185198910-199008

main53875-20210iST185199008-199108

main53875-20230iST185199108-199202

53876ALINER, FRONT FENDER, LH

main53876-20180iAT180,ST182,184..NOB198910-199108

sub53876-20H00

main53876-20200iAT180,ST182,184..NOB199108-199311

main53876-20210iST185198910-199008

main53876-20220iST184..WIB;ST185..TBO4W199108-199311

W(FRONT FOG LAMP)

main53876-20240iST185199108-199202

53878CSPACER, FRONT FENDER

main53878-20040×2iAT180,ST18#198910-199311

53903BPANEL SUB-ASSY, FRONT END

main53903-20010iAT180,ST18#198910-199311

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-20030iST184..WIB199008-199311

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-20030iST184..WIB199008-199311

9011906334

main90119-06334

9011906353

main90119-06353

9011906586

main90119-06586

9011906603

main90119-06603

9015960427

main90159-60427

9018906006

main90189-06006

9033330002

main90333-30002

9046707091

main90467-07091

9056010067

main90560-10067

9095001580

main90950-01580

9095001604

main90950-01604

9095001620

main90950-01620

9095006073

main90950-06073

9165140612

main91651-40612

9418040600

main94180-40600

39 parts on this diagram · 3 diagrams in section
