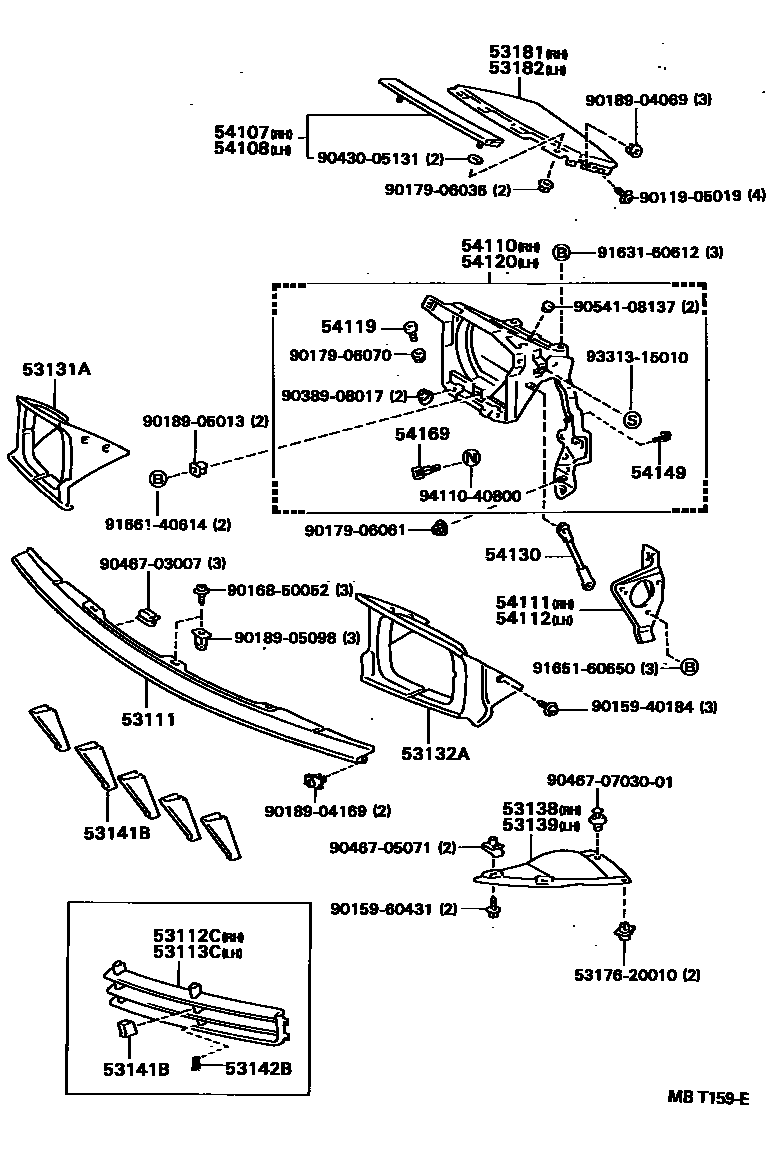

RADIATOR GRILLE
53111GRILLE, RADIATOR
53112CGRILLE, RADIATOR, LOWER RH
BLACK,202
RED MICA,3H4
BLUISH SILVER M,181
SUPER WHITE 2,040
SUPER RED 2,3E5
BLUISH GRAY M,182
BLUE MICA M,8G7
WINERED MICA,3J8
MEDIUM TURQUOISEM,749
DARK BLUE MICA,8J1
53113CGRILLE, RADIATOR, LOWER LH
BLACK,202
RED M1CA,3H4
BLUISH SILVER M,181
SUPER WHITE 2,040
SUPER RED 2,3E5
BLUISH GRAY M,182
BLUE MICA M,8G7
WINERED MICA,3J8
MEDIUM TURQUOISEM,749
DARK BLUE MICA,8J1
53131ADOOR, HEADLAMP, RH
53132ADOOR, HEADLAMP, LH
53138PROTECTOR, HEADLAMP DOOR, RH
53139PROTECTOR, HEADLAMP DOOR, LH
53141BGARNISH, RADIATOR GRILLE, NO.1
53142BRADIATOR GRILLE GARNISH, NO.2
53181COVER, HEADLAMP, RH
53182COVER, HEADLAMP, LH
54107GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH
54108GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH
54110BRACKET ASSY, RETRACTABLE HEADLAMP, RH
54111BRACKET, RETRACTABLE HEADLAMP, NO.1 RH
54112BRACKET, RETRACTABLE HEADLAMP, NO.1 LH
54119STOP, RETRACTABLE HEADLAMP LINK
54120BRACKET ASSY, RETRACTABLE HEADLAMP, LH
54130ROD ASSY, RETRACTABLE HEADLAMP
54149BOLT, RETRACTABLE HEADLAMP STOP
54169STOP, RETRACTABLE HEADLAMP LINK DOWN
L=46.3
L=21.5
5317620010LEVER, WIND SHUTTER
main53176-20010
9011905019
main90119-05019
9015940184
main90159-40184
9015960431
main90159-60431
9016850052
main90168-50052
9017906036
main90179-06036
9017906061
main90179-06061
9017906070
main90179-06070
9018904069
main90189-04069
9018904169
main90189-04169
9018905013
main90189-05013
9018905098
main90189-05098
9038908017
main90389-08017
9043005131
main90430-05131
9046703007
main90467-03007
9046705071
main90467-05071
904670703001
main90467-0703001
9054108137
main90541-08137
9163160612
main91631-60612
9165160650
main91651-60650
9166140614
main91661-40614
9331315010
main93313-15010
9411040800
main94110-40800
44 parts on this diagram · 3 diagrams in section
