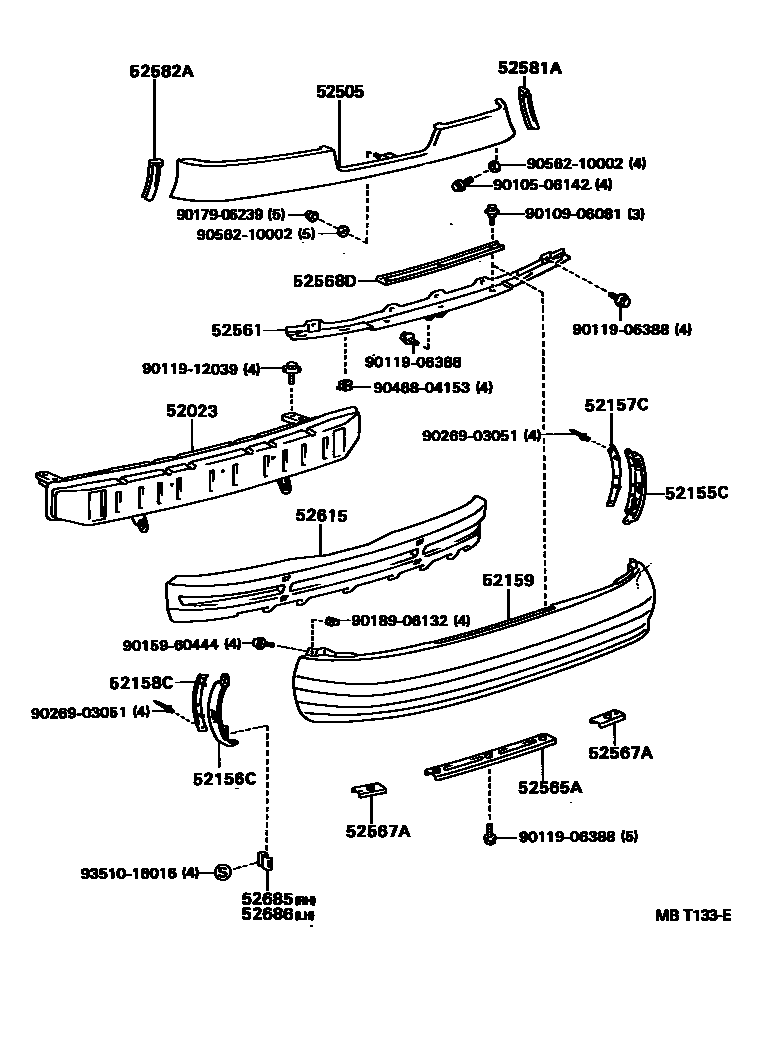

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20280iAT180,ST182,184..LB¥36,000198910-199311

main52023-20290iAT180,ST184..CP¥36,800198910-199311

main52023-20310iST185..TBO4W¥35,800198910-199311

main52023-20320iST185¥31,900199108-199202

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20220iAT180,ST182,184..LB..NOB¥1,250198910-199311

main52155-20230iAT180,ST184..CP¥1,250198910-199311

main52155-20240iST184,185..WIB¥1,250198910-199311

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-20150iAT180,ST182,184..LB..NOB¥1,250198910-199311

main52156-20160iAT180,ST184..CP¥1,250198910-199311

main52156-20170iST184,185..WIB¥1,250198910-199311

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-20090iAT180,ST182,184..LB..NOB¥600198910-199311

main52157-20100iAT180,ST184..CP¥600198910-199311

main52157-20110iST184,185..WIB¥600198910-199311

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-20060iAT180,ST182,184..LB..NOB¥600198910-199311

main52158-20070iAT180,ST184..CP¥600198910-199311

main52158-20080iST184,185..WIB¥600198910-199311

52159COVER, REAR BUMPER

main52159-20919iAT180,ST182,184..LB..NOB¥41,300198910-199311

main52159-20920iAT180,ST184..CP¥41,300198910-199311

main52159-20921iST184,185..WIB¥41,300198910-199311

52505FILLER SUB-ASSY, REAR BUMPER

main52505-20020iAT180..LB¥5,400198911-199311

PLATE SIZE 180 X 420

main52505-20020iST18#..LB¥5,400198910-199311

main52505-20030iAT180..LB¥5,900198911-199311

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20150iAT180,ST18#..LB¥4,280198910-199311

main52561-20160iAT180,ST184..CP¥4,280198910-199311

52565ARETAINER, REAR BUMPER, LOWER

main52565-20140iAT180,ST18#¥1,160198910-199311

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52567-20030iAT180,ST18#¥410198910-199311

52568DRETAINER, REAR BUMPER, UPPER NO.2

main52568-20020iAT180,ST18#¥1,590198910-199311

52581APROTECTOR, REAR BUMPER FILLER

main52581-20020iAT180,ST184..CP¥110198910-199311

main52581-20030iAT180,ST18#..LB¥170198910-199311

52582APROTECTOR, REAR BUMPER FILLER, LH

main52581-20030iAT180,ST18#..LB¥170198910-199311

52615ABSORBER, REAR BUMPER ENERGY

main52615-20130iAT180,ST182,184..LB..NOB¥18,700198910-199311

main52615-20140iAT180,ST184..CP¥18,700198910-199311

main52615-20150iST184,185..WIB¥18,700198910-199311

52685SUPPORT, REAR BUMPER SIDE, NO.3 RH

main52685-20010iAT180,ST18#¥190198910-199311

52686SUPPORT, REAR BUMPER SIDE, NO.3 LH

main52685-20010iAT180,ST18#¥190198910-199311

9010506142

main90105-06142¥120

9010906081

main90109-06081¥230

9011906388

main90119-06388¥120

9011912039

main90119-12039¥310

9015960444

main90159-60444¥100

9017906239

main90179-06239¥140

9018906132

main90189-06132¥130

9026903051

main90269-03051¥110

9046804153

main90468-04153¥370

9056210002

main90562-10002¥140

9351016016

main93510-16016¥60

27 parts on this diagram · 2 diagrams in section
