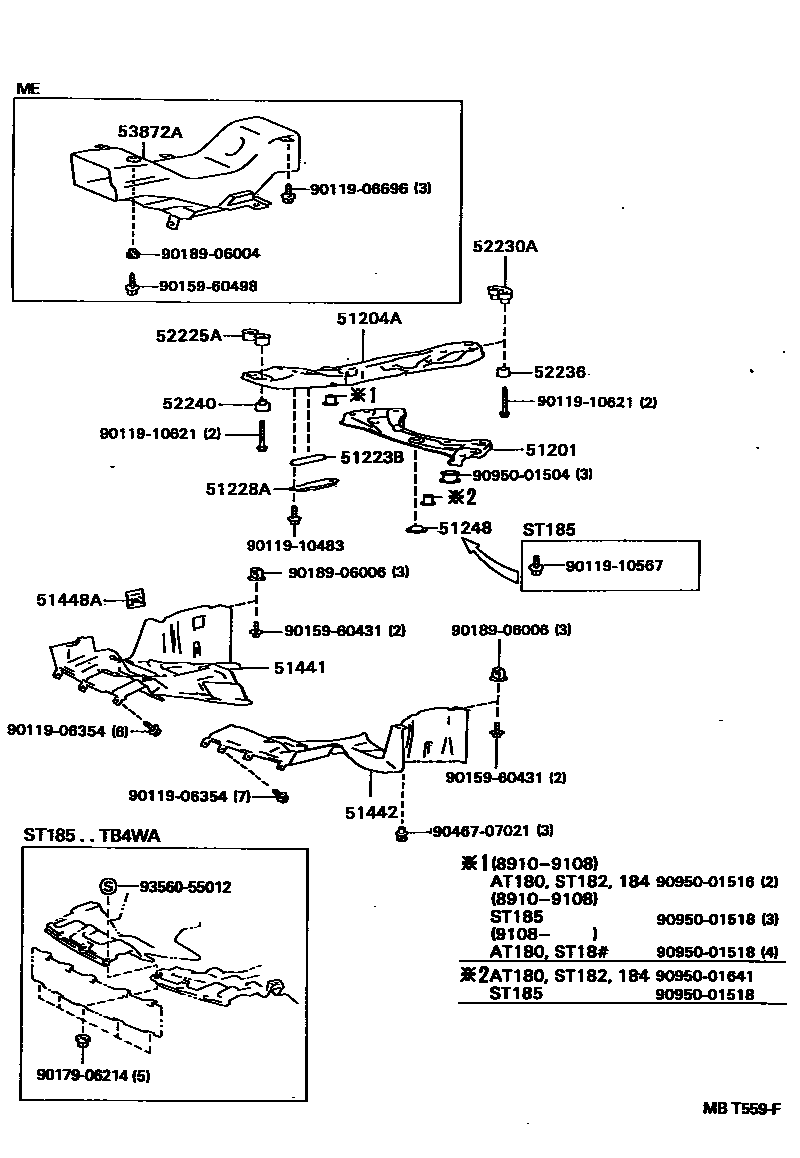

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20230iST185198910-199311

main51201-20240iAT180,ST182,184198910-199311

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20090iST185198910-199311

main51204-20100iAT180,ST182,184198910-199104

main51204-20101iAT180,ST182,184199104-199311

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAT180,ST182,184199108-199208

L=102.5

main51223-20030×2iST185198910-199311

L=104

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20050iAT180,ST18#198910-199311

51248SPACER, FLAME CROSSMEMBER

main51248-32010×2iAT180,ST182,184198910-199311

51441COVER, ENGINE UNDER, NO.1

main51408-20030iST185198910-199103

main51408-20031iST185..TBO4W199103-199311

main51408-20040iST185199108-199202

main51441-20190iST182198911-199103

main51441-20230iAT180,ST184198910-199103

main51441-20231iAT180,ST184199103-199108

main51441-20290iST182;ST184..WIB199108-199311

51442COVER, ENGINE UNDER, NO.2

main51409-20030iST182198911-199103

main51409-20031iST182199103-199108

main51409-20040iST185198910-199103

main51409-20041iST185..TBO4W199103-199311

main51409-20050iST185199108-199202

main51442-20220iAT180,ST184..MTM198910-199103

main51442-20222iAT180,ST184..MTM199103-199108

main51442-20230iST184..ATM198910-199103

main51442-20232iST184..ATM199103-199108

main51442-20330iST182199108-199311

main51442-20340iST184..WIB..ATM199108-199311

main51442-20350iST184..WIB..MTM199108-199311

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT180,ST18#198910-199311

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20040iAT180,ST182,184198910-199311

main52225-20050iST185198910-199311

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20050iAT180,ST182,184198910-199311

main52230-20060iST185198910-199311

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20040×2iAT180,ST182,184198910-199311

main52236-20050×2iST185198910-199311

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20040×2iAT180,ST182,184198910-199311

main52240-20050×2iST185198910-199311

53872ADUCT, AIR, LOWER

main53872-20040iST182198911-199311

9011906354

main90119-06354

9011906696

main90119-06696

9011910483

main90119-10483

9011910567

main90119-10567

9011910621

main90119-10621

9015960431

main90159-60431

9015960498

main90159-60498

9017906214

main90179-06214

9018906004

main90189-06004

9018906006

main90189-06006

9046707021

main90467-07021

9095001504

main90950-01504

9095001516

main90950-01516

9095001518

main90950-01518

9095001641

main90950-01641

9356055012

main93560-55012

29 parts on this diagram · 2 diagrams in section
