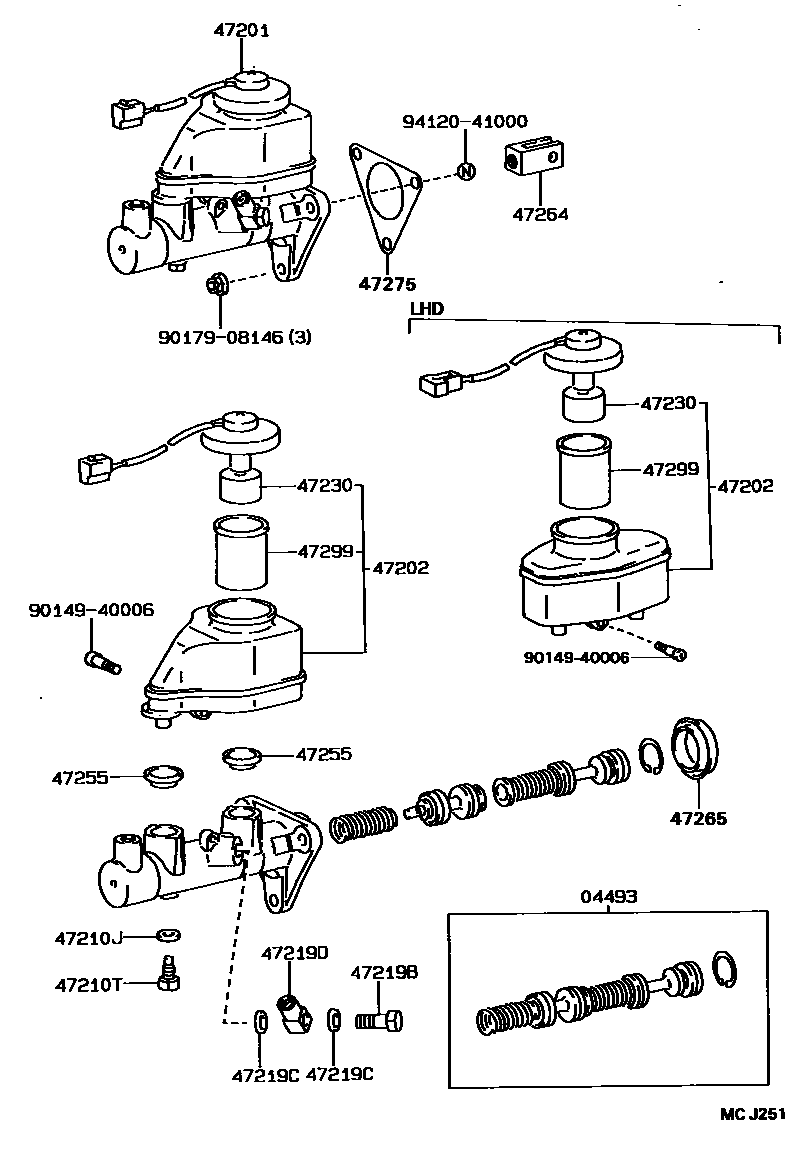

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-20210iAT180198911-199108

sub04493-16110

main04493-20220iST18#198910-199311

main04493-32070iST184198910-199311

W(*66)

sub04493-33060

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20640iAT180..RHD198911-199108

main47201-20650iST184198910-198911

sub47201-20651

sub47311-20790

main47201-20651iST184198911-199311

main47201-20660iST185198910-198911

sub47201-20661

sub47311-20690

main47201-20661iST185198911-199311

sub47201-20651

main47201-20680iAT180..LHD198911-199108

main47201-20690iAT180,ST182..LHD198911-199311

main47201-20710iST184199108-199311

W(*66)

main47201-20720iST185198910-199108

W(*66)

sub47201-20710

main47201-32230iAT180..RHD199108-199311

sub47201-1A310

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20320iAT180..RHD198911-199108

main47202-20370iST184198910-199311

sub47220-20220

main47202-20380iST185198910-199311

sub47220-20230

main47202-20390iAT180,ST182..LHD198911-199311

sub47220-20240

main47202-32070iAT180..RHD199108-199311

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iST185..TBO4W;AT180,ST182,184198910-199311

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iST185..TBO4W;AT180,ST182,184198910-199311

47219BBOLT, UNION(FOR FLUID OUTLET REAR SIDE)

main90401-10023iST184;ST185..TBO4W198910-199311

47219CGASKET(FOR FLUID OUTLET UNION BOLT REAR SIDE)

main90430-10074iST184,185198910-199311

47219DUNION(FOR FLUID OUTLET REAR SIDE)

main90405-10073iST184;ST185..TBO4W198910-199311

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iST184,185198910-199311

main84460-20110iAT180..RHD199108-199311

main84460-20140iAT180,ST182..LHD199108-199311

main84460-35020iAT180,ST182..LHD198911-199108

sub84460-20140

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAT180,ST18#198910-199311

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-17010iST182199002-199311

main47264-20040iST185..TBO4W;AT180,ST184..RHD198910-199311

47265BOOT, MASTER CYLINDER

main47265-20050iST185..TBO4W;AT180,ST182,184198910-199311

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT180,ST184,185198910-199311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAT180,ST18#198910-199311

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

17 parts on this diagram · 1 diagram in section
