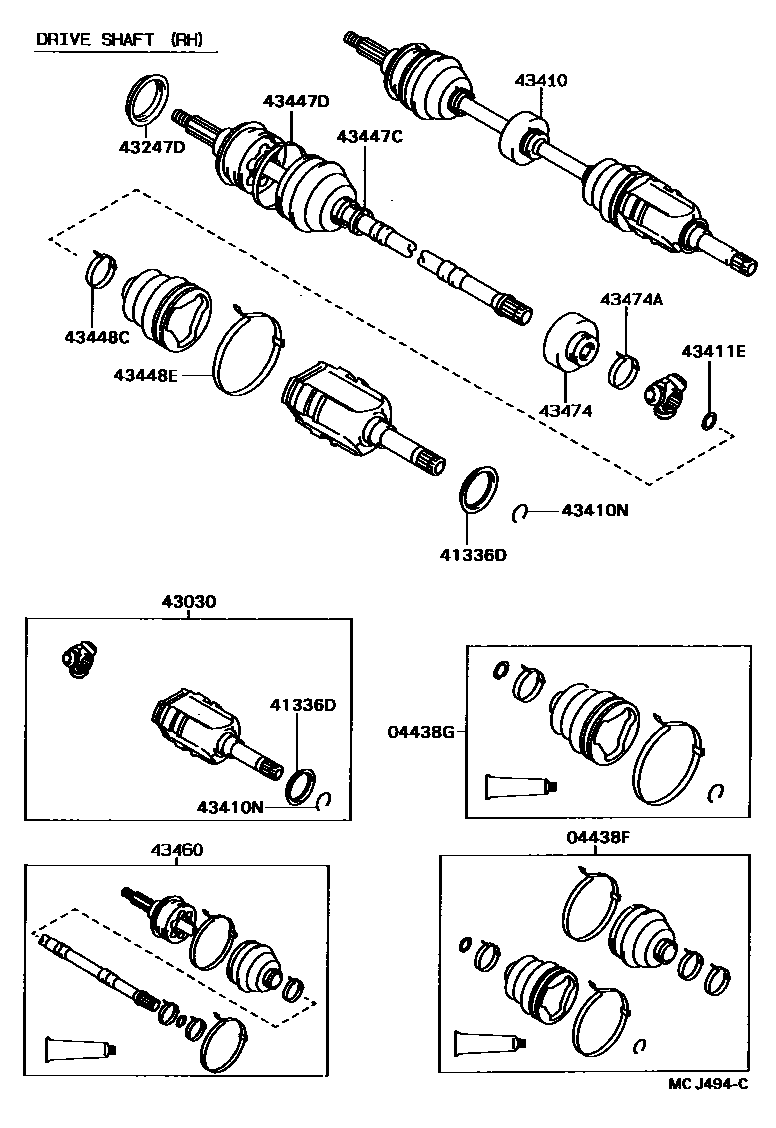

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04438-12170
sub04438-12171
sub04438-12370
sub04428-12270
sub04438-20231
sub04438-20151
sub04438-20231
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
sub04438-12160
sub04438-12161
sub04438-12410
sub04438-12410
sub04438-20440
sub04438-20330
sub04438-20420
sub04438-20440
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
15 parts on this diagram · 9 diagrams in section
