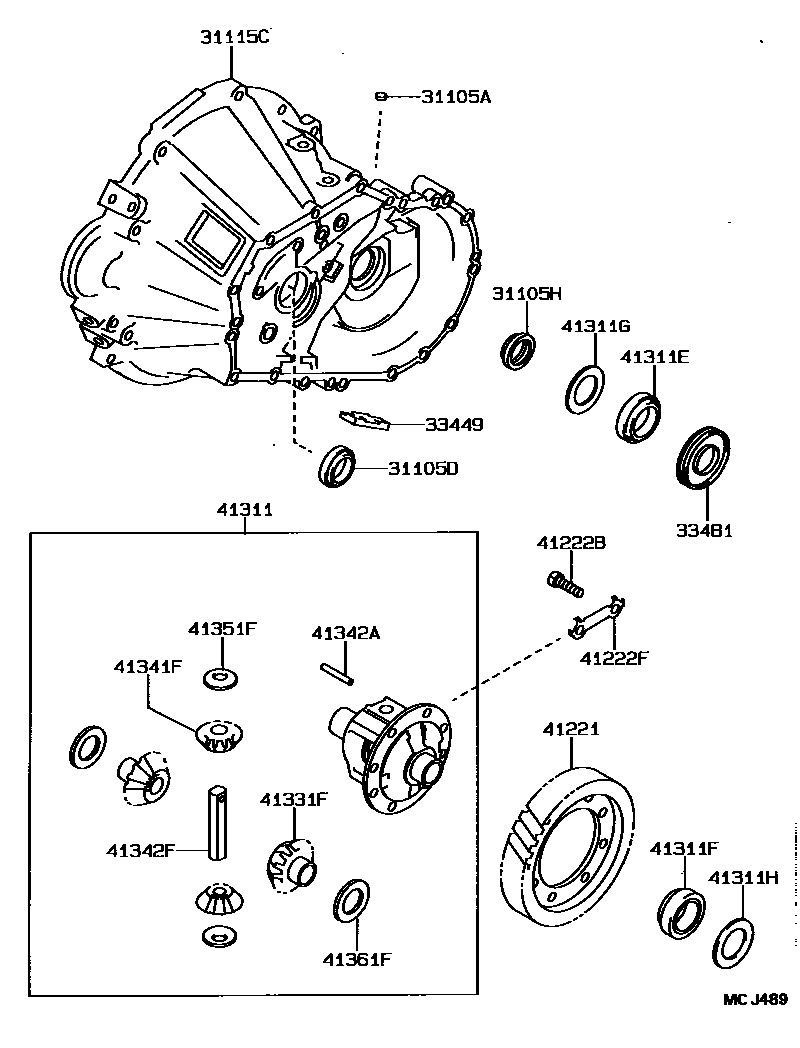

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
sub31105-32080
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
N=35
N=25,NO MARK
N=25
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 01
T=2.05,MARK 02
T=2.10,MARK 03
T=2.15,MARK 04
T=2.20,MARK 05
T=2.25,MARK 06
T=2.30,MARK 07
T=2.35,MARK 08
T=2.40,MARK 09
T=2.45,MARK 10
T=2.50,MARK 11
T=2.55,MARK 12
T=2.60,MARK 13
T=2.65,MARK 14
T=2.70,MARK 15
T=2.75,MARK 16
T=2.80,MARK 17
T=2.85,MARK 18
T=2.90,MARK 19
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-12140
sub41342-20060
sub41342-32020
sub41342-52060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
21 parts on this diagram · 4 diagrams in section
