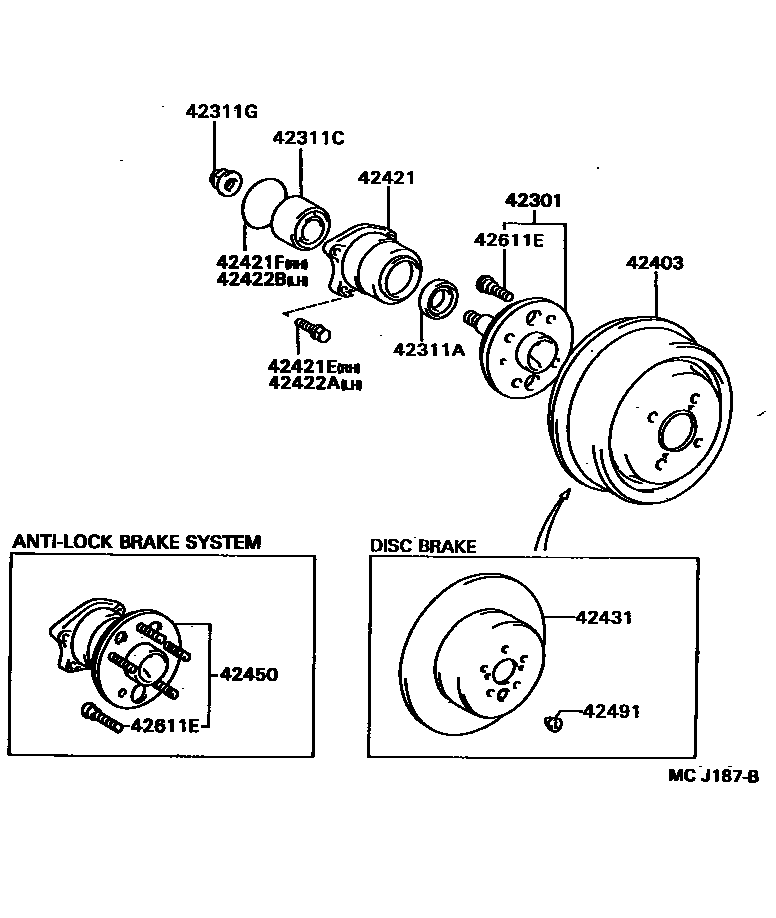

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-20070×2iST185198910-199311

main42301-20130×2iAT180198911-199108

sub42301-20080

main42301-20140×2iST182,184198910-199108

sub42301-32031

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018×2iAT180,ST182,184198910-199307

main90311-52005×2iST185198910-199311

OUTER

main90311-56007×2iST185198910-199104

INNER

main90311-56015×2iST185199104-199311

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044×2iST184199307-199311

main90369-38003×2iST185198910-199311

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19002×2iST185198910-199101

main90179-20017iAT180,ST182,184198910-199307

main90179-22020×2iST185199101-199311

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080×2iAT180198911-199108

main42431-32020×2iAT180199108-199311

42421CASE, REAR AXLE BEARING

main42421-20020iAT180,ST182,184198910-199307

sub42409-20010

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124×4iAT180,ST182,184198910-199311

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iAT180,ST182,184198910-199311

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124×4iAT180,ST182,184198910-199311

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iAT180,ST182,184198910-199311

sub90301-63006

42431DISC, REAR

main42431-20090×2iST182,184198910-199109

main42431-20150×2iST185199202-199311

main42431-20160×2iST182,184199109-199311

main42431-20240×2iST185198910-199202

42450HUB & BEARING ASSY, REAR AXLE

main42450-20030×2iST184199108-199311

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iST18#198910-199311

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×4iAT180198911-199108

main90942-02070×5iST185199310-199311

sub90942-02049

14 parts on this diagram · 4 diagrams in section
