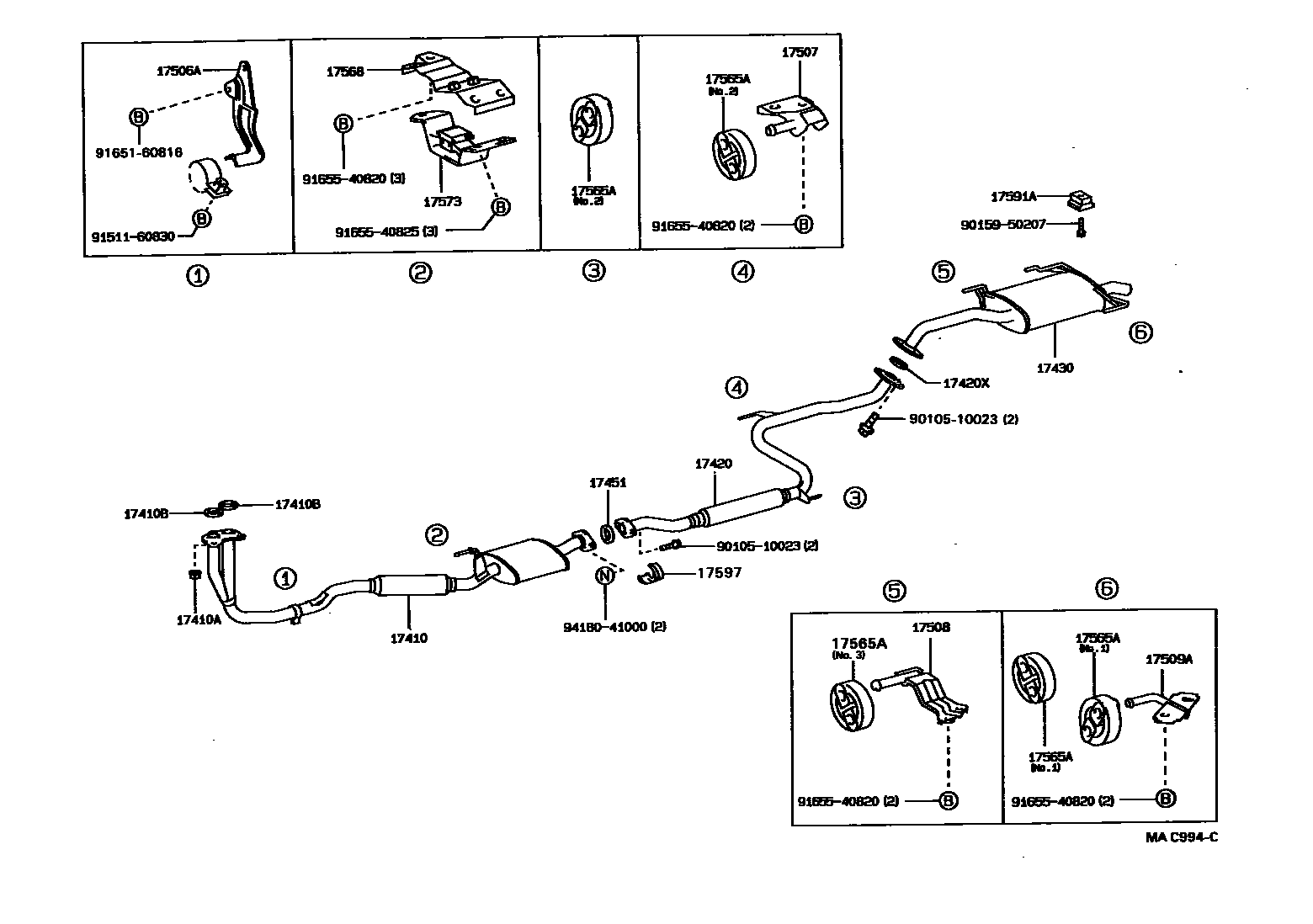

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.2 & N0.3
NO.2 & NO.3
NO.3
NO.1
NO.2
NO.3
NO.1
17568STAY, EXHAUST PIPE SUPPORT
17591ASTOPPER, EXHAUST PIPE SUPPORT
17597PROTECTOR, EXHAUST PIPE SPLASH
9010510023
main90105-10023
9015950207
main90159-50207
9151160830
main91511-60830
9165160816
main91651-60816
9165540820
main91655-40820
9165540825
main91655-40825
9418041000
main94180-41000
23 parts on this diagram · 4 diagrams in section
