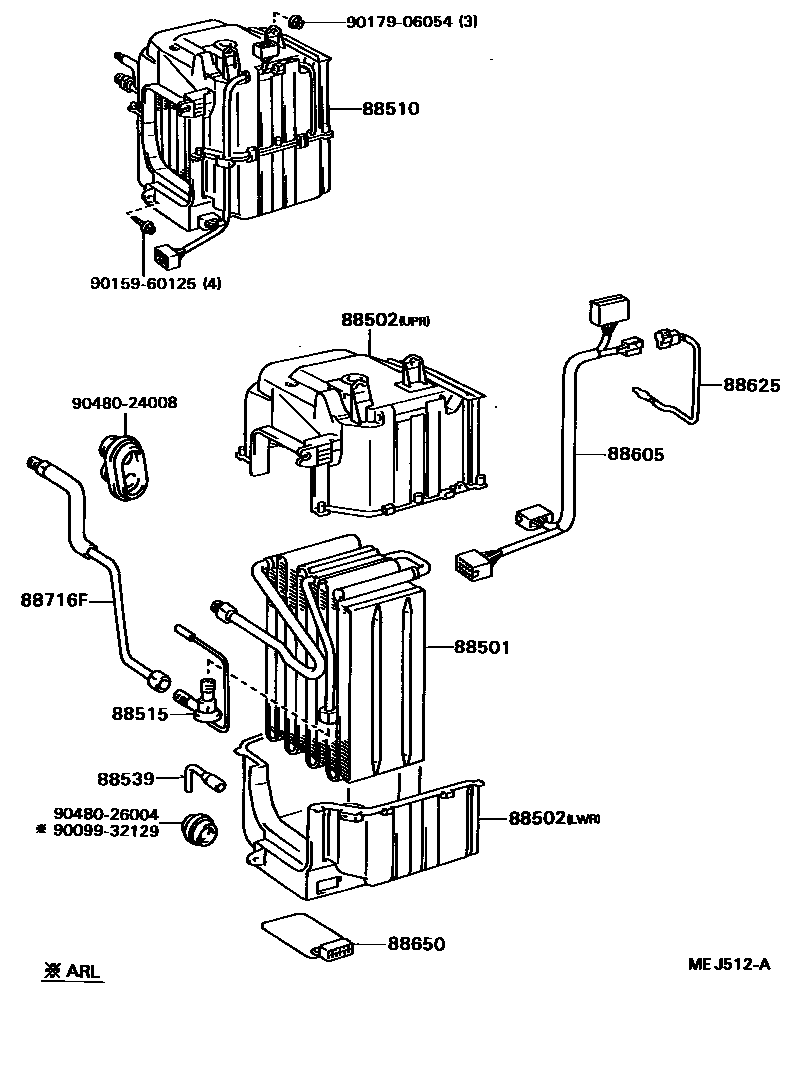

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20201iAT160,ST162..RHD198708-198908

main88501-20211iAT160,ST162..LHD198708-198908

88502CASE SUB-ASSY, COOLING UNIT

main88502-20090iST162..ARL198708-198908

UPR

main88502-20100iST162..ARL198708-198908

LWR

88510UNIT ASSY, COOLER

main88510-20480iAT160..RHD198708-198908

main88510-20500iAT160,ST162..LHD198708-198908

W(HEAVY DUTY HEATER)

main88510-20540iAT160,ST162..LHD198708-198908

main88510-20550iST162..ST198708-198908

main88510-20560iST162..SX198708-198908

88515VALVE, COOLER EXPANSION

main88515-16040iAT160,ST162..RHD198708-198908

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iAT160,ST162..RHD198708-198908

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20590iAT160,ST162..RHD..(GT,ST)198708-198908

W(HEAVY DUTY HEATER)

main88605-20620iAT160,ST162..LHD198708-198908

main88605-20670iST162..SX198708-198908

88625THERMISTOR, COOLER, NO.1

main88625-12070iAT160,ST162..RHD198708-198908

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20350iST162..ST198708-198908

W(HEAVY DUTY HEATER)

main88650-20360iAT160,ST162..GEN,ME198708-198908

main88650-20370iST162..SX198708-198908

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B040iST162..ARL198708-198908

9009932129

main90099-32129

9015960125

main90159-60125

9017906054

main90179-06054

9048024008

main90480-24008

9048026004

main90480-26004

14 parts on this diagram · 1 diagram in section
