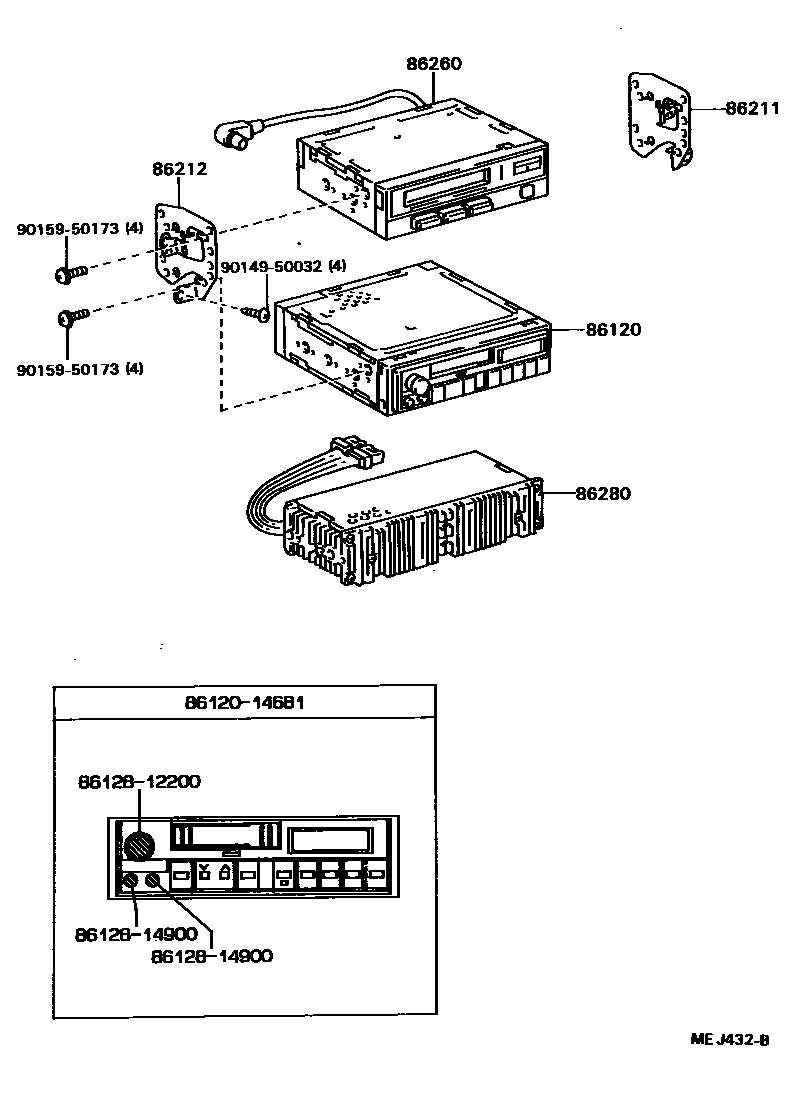

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14681iST162..SX198708-198908

AM/FM MPX ETR CASSETTE

main86120-16430iAT160,ST162..GEN,ME198708-198908

FUJITSU TEN,AM/FM MPX 5-BUTTON

main86120-16460iAT160198708-198908

MATSUSHITA,ID=5108,MW/SW 5-BUTTON

main86120-16470iAT160..CBR198708-198810

FUJITSU TEN,AM/FM 5-BUTTON

main86120-30810iAT160198708-198908

AM/FM MPX ETR

sub86120-3A040

main86120-30820iAT160,ST162..GT198708-198908

MW/SW/FM MPX ETR

sub86120-3A050

86211BRACKET, RADIO, NO.1

main86211-20150iAT160,ST162198708-198908

86212BRACKET, RADIO, NO.2

main86212-20190iAT160,ST162198708-198908

86260TAPE PLAYER ASSY

main86260-16140iAT160..CBR198708-198908

W(AMP)

main86260-30250iAT160..TWC198708-198908

W/O (AMP)

sub86260-30310

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-14191iST162..SX198708-198908

8612014681RECEIVER ASSY, RADIO

main86120-14681

8612812200KNOB, RADIO RECEIVER

main86128-12200

8612814900KNOB, RADIO RECEIVER

main86128-14900

9014950032

main90149-50032

9015950173

main90159-50173

10 parts on this diagram · 2 diagrams in section
