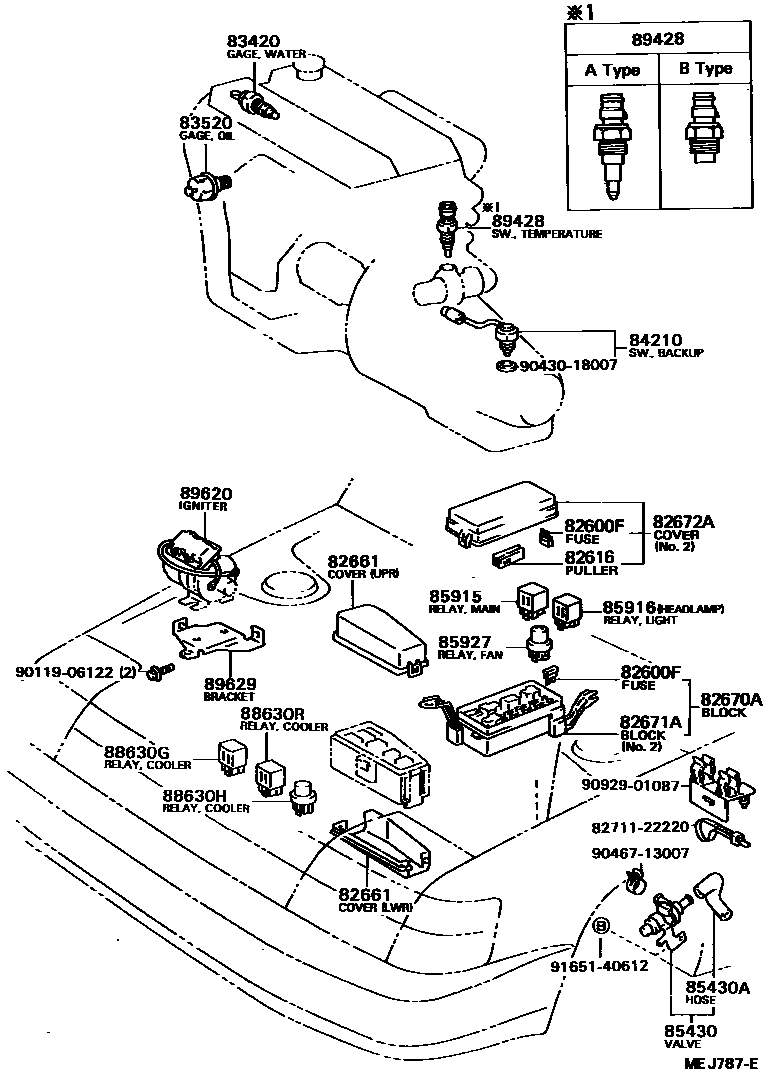

SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
LWR
UPR
82670ABLOCK ASSY, JUNCTION, NO.1
82671ABLOCK, JUNCTION
NO.1
NO.2
NO.3
NO.2
82672ACOVER, JUNCTION BLOCK
NO.3
NO.3
LWR,NO.2
UPR,NO.2
NO.1
NO.2
NO.1
83420GAGE ASSY, WATER TEMPERATURE SENDER
85430VALVE, OUTER VENT CONTROL
85430AHOSE
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
TAIL LAMP,DENSO
HEADLAMP
85927RELAY, COOLING FAN
W(AIR CONDITIONER)
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89428SWITCH, TEMPERATURE DETECT, NO.2
B TYPE
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
8271122220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22220
9011906122
main90119-06122
9043018007
main90430-18007
9046713007
main90467-13007
9092901087
main90929-01087
9165140612
main91651-40612
26 parts on this diagram · 6 diagrams in section
