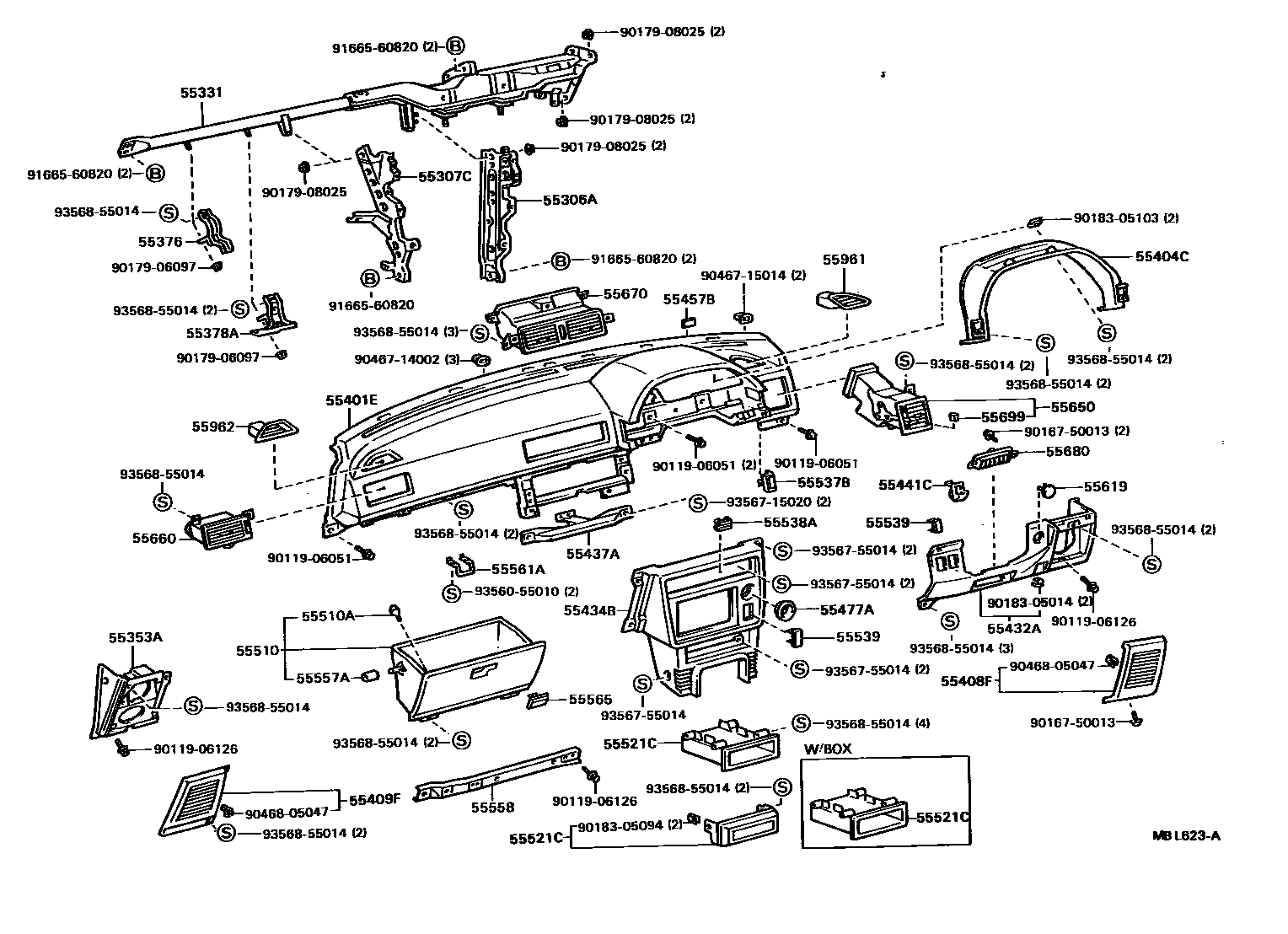

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20060iAT160,ST162..RHD198708-198908

main55306-20070iAT160,ST162..LHD198708-198908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20060iAT160,ST162..RHD198708-198908

main55307-20070iAT160,ST162..LHD198708-198908

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20070iAT160,ST162..RHD198708-198908

main55330-20080iAT160,ST162..LHD198708-198908

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20050-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55353-20050-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55353-20050-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55353-20060-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55353-20060-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55353-20060-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20030iAT160,ST162198708-198908

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20080iAT160,ST162..RHD198708-198908

main55378-20090iAT160,ST162..LHD198708-198908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20470-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55401-20470-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55401-20470-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55401-20480-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55401-20480-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55401-20480-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20200iAT160,ST162..RHD198708-198908

main55404-20210iAT160,ST162..LHD198708-198908

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-20090-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55472-20090-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55472-20090-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55472-20100-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55472-20100-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55472-20100-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-20080-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55473-20080-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55473-20080-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55473-20090-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55473-20090-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55473-20090-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20170-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55432-20170-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55432-20170-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20050-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55434-20050-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55434-20050-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55434-20080-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55434-20080-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55434-20080-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-20040iAT160,ST162198708-198908

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-05iAT160,ST162198708-198808

DARK BEIGE,TRIM4#

main55441-20140-11iAT160,ST162198708-198808

BLACK,TRIM2#

main55441-20140-24iAT160,ST162198708-198908

DEEP BLUE,TRIM8#

main55441-20140-26iAT160,ST162198708-198908

SABLE,SABLE,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55355-20060×2iAT160,ST162198908-198908

main55457-22030×5iAT160,ST162198708-198901

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20060iAT160,ST162198708-198908

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20110-01iAT160,ST162198708-198805

BLACK,TRIM2#

main55550-20110-04iAT160,ST162198708-198805

DEEP BLUE,TRIM8#

main55550-20110-05iAT160,ST162198708-198805

DARK BEIGE,TRIM4#

main55550-20111-01iST162;AT160..LB;AT160..CP..CBR198805-198908

BLACK,TRIM2#

main55550-20111-04iST162;AT160..LB;AT160..CP..CBR198805-198908

DEEP BLUE,TRIM8#

main55550-20111-05iST162;AT160..LB;AT160..CP..CBR198805-198908

DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iAT160,ST162198708-198908

55521CCOVER, STEREO OPENING

main55521-16010iAT160198708-198908

UPR

sub55521-16030

main55521-20120iAT160198708-198908

LWR

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55537-20040-01iAT160,ST162..GEN,ME198708-198908

BLACK,TRIM2#

main55537-20040-04iAT160,ST162..GEN,ME198708-198908

DEEP BLUE,TRIM8#

main55537-20040-05iAT160,ST162..GEN,ME198708-198908

DARK BEIGE,TRIM4#

55538ACOVER, COOLER SWITCH HOLE

main55538-20050iAT160,ST162..RHD198708-198908

55539COVER, SPARE SWITCH HOLE

main55539-20030-01iAT160,ST162198708-198908

BLACK,TRIM2#,DRIVER FINISH PANEL

main55539-20030-04iAT160,ST162198708-198908

DEEP BLUE,TRIM8#,DRIVER FINISH PANEL

main55539-20030-05iAT160,ST162198708-198908

DARK BEIGE,TRIM4#,DRIVER FINISH PANEL

main55539-32010-11iAT160,ST162198708-198908

BLACK,TRIM2#,4#,8#,CENTER FINISH PANEL

sub55539-32030

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iAT160,ST162198708-198908

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20060iAT160,ST162..RHD198708-198908

main55558-20070iAT160,ST162..LHD198708-198908

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-20050iAT160,ST162198708-198908

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-01iAT160,ST162198708-198908

NEW BLACK,TRIM2#

main55565-20040-04iAT160,ST162198708-198908

DEEP BLUE,TRIM8#

main55565-20040-05iAT160,ST162198708-198908

DARK BEIGE,TRIM4#

55619COVER, SWITCH HOLE

main55619-14010-11iAT160198708-198908

BLACK,TRIM2#

main55619-14010-24iAT160198708-198908

DEEP BLUE,TRIM8#

main55619-14010-25iAT160198708-198908

DARK BEIGE,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20120-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55650-20120-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55650-20120-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55650-20140-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55650-20140-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55650-20140-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20061-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55660-20061-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55660-20061-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55660-20071-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55660-20071-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55660-20071-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20061-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55670-20061-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55670-20061-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55670-20071-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55670-20071-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55670-20071-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iST162..ARL198708-198908

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55905-20230-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55905-20230-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55905-20230-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20100-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55961-20100-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55961-20100-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

main55962-20100-01iST162..ME;AT160..LB..LHD;AT160..CP..CBR198708-198908

BLACK,TRIM2#

main55962-20100-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55962-20100-05iAT160,ST162..LHD198708-198908

DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-20120-01iAT160,ST162..LHD198708-198908

BLACK,TRIM2#

main55961-20120-04iAT160,ST162..LHD198708-198908

DEEP BLUE,TRIM8#

main55961-20120-05iAT160,ST162..LHD198708-198908

BLACK,TRIM4#

main55962-20110-01iAT160,ST162..RHD198708-198908

BLACK,TRIM2#

main55962-20110-04iAT160,ST162..RHD198708-198908

DEEP BLUE,TRIM8#

main55962-20110-05iAT160,ST162..RHD198708-198908

DARK BEIGE,TRIM4#

9011906051

main90119-06051

9011906126

main90119-06126

9016750013

main90167-50013

9017906097

main90179-06097

9017908025

main90179-08025

9018305014

main90183-05014

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9046715014

main90467-15014

9046805047

main90468-05047

9166560820

main91665-60820

9356055010

main93560-55010

9356715020

main93567-15020

9356755014

main93567-55014

9356855014

main93568-55014

50 parts on this diagram · 2 diagrams in section
