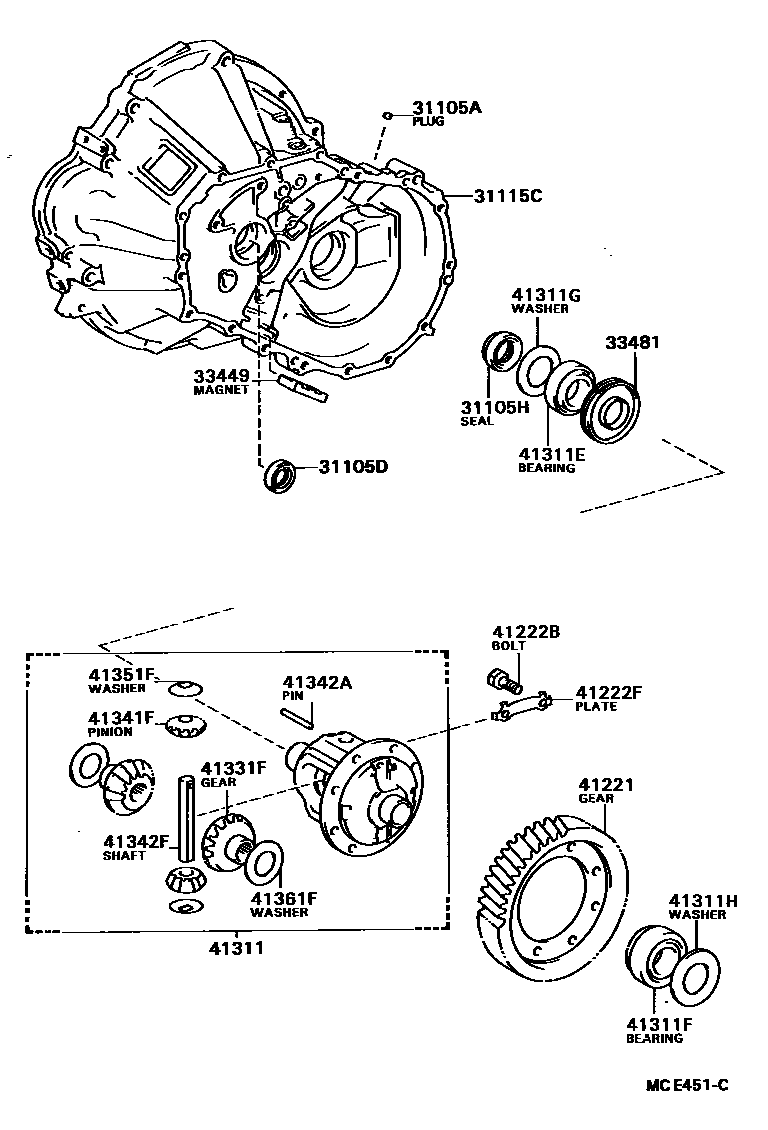

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C52 0002 1S52,53 0003 1A140L,A140E

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32014iST162..5F..(GT,SX)198708-198908

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32020iST162..5F..ST198708-198908

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT160198708-198908

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAT160198708-198908

sub90311-25028

main90311-30002iST162..5F198708-198908

sub90311-30006

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iAT160198708-198908

sub90311-34016

main90311-35014iST162..5F198708-198908

sub90311-35026

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iAT160198708-198908

sub31115-16040

sub33125-12011

33449MAGNET, TRANSMISSION

main33449-12010iAT160198708-198908

sub33449-12020

main33449-32010iST162..5F198708-198908

sub33449-32020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAT160198708-198908

N=35,MARK 35X29-31

main33481-32010iST162..5F198708-198908

N=25,NO MARK

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12180iAT160..CBR198708-198908

sub41221-12330

main41221-17010iAT160..TWC198708-198908

sub41221-12340

main41221-20220iST162..5F..(GT,SX)198708-198908

main41221-32030iST162..ST198708-198908

main41221-32040iST162..4FC..(GT,SX)198708-198908

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iST162198708-198908

main90101-11353iAT160198708-198908

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAT160198708-198908

main41222-32010iST162198708-198908

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAT160198708-198908

sub41301-12041

sub90105-11040

main41301-32010iST162..5F198708-198908

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iST162..4FC198708-198709

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

main41301-32021iST162..4FC198709-198811

sub41301-32022

main41301-32022iST162..4FC198811-198903

sub41301-32023

main41301-32023iST162..4FC198903-198908

sub41301-32071

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT160198708-198908

main90366-40016iST162198708-198908

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iST162..5F198708-198908

sub90366-40064

main90366-44001iST162..4FC198709-198908

main90368-38010iAT160198708-198908

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41045iAT160198708-198908

T=2.10

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41046iAT160198708-198908

T=2.10,MARK A

sub90564-41014

main90201-41047iAT160198708-198908

T=2.15,MARK B

sub90564-41015

main90201-41048iAT160198708-198908

T=2.20,MARK C

sub90564-41016

main90201-41049iAT160198708-198908

T=2.25,MARK D

sub90564-41017

main90201-41050iAT160198708-198908

T=2.30,MARK E

sub90564-41018

main90201-41051iAT160198708-198908

T=2.35,MARK F

sub90564-41019

main90201-41052iAT160198708-198908

T=2.40,MARK G

sub90564-41020

main90201-41053iAT160198708-198908

T=2.45,MARK H

sub90564-41021

main90201-41054iAT160198708-198908

T=2.50,MARK J

sub90564-41022

main90201-41055iAT160198708-198908

T=2.55,MARK K

sub90564-41023

main90201-41056iAT160198708-198908

T=2.60,MARK L

sub90564-41024

main90201-41057iAT160198708-198908

T=2.65,MARK M

sub90564-41025

main90201-41058iAT160198708-198908

T=2.70,MARK N

sub90564-41026

main90201-41059iAT160198708-198908

T=2.75,MARK P

sub90564-41027

main90201-41060iAT160198708-198908

T=2.80,MARK Q

sub90564-41028

main90201-41061iAT160198708-198908

T=2.85,MARK R

sub90564-41029

main90201-41062iAT160198708-198908

T=2.90,MARK S

sub90564-41030

main90201-41063iAT160198708-198908

T=2.95,MARK T

sub90564-41031

main90201-41064iAT160198708-198908

T=3.00,MARK U

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT160198708-198908

main41331-32010iST162198708-198908

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT160198708-198908

main41341-30011iST162198708-198908

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAT160,ST162198708-198908

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAT160198708-198903

sub41342-12140

main41342-12110iAT160198903-198908

sub41342-12020

main41342-20050iST162198811-198908

sub41342-32020

main41342-32010iST162198708-198811

sub41342-20050

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAT160198708-198908

main41351-32010iST162198708-198908

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iAT160,ST162198708-198908

T=1.00,MARK 02

main41361-22030iAT160,ST162198708-198908

T=1.10,MARK 03

main41361-22040iAT160,ST162198708-198908

T=1.20,MARK 04

main41361-22140iAT160,ST162198708-198908

T=0.95,MARK 14

main41361-22150iAT160,ST162198708-198908

T=1.05,MARK 15

main41361-22160iAT160,ST162198708-198908

T=1.15,MARK 16

21 parts on this diagram · 3 diagrams in section
