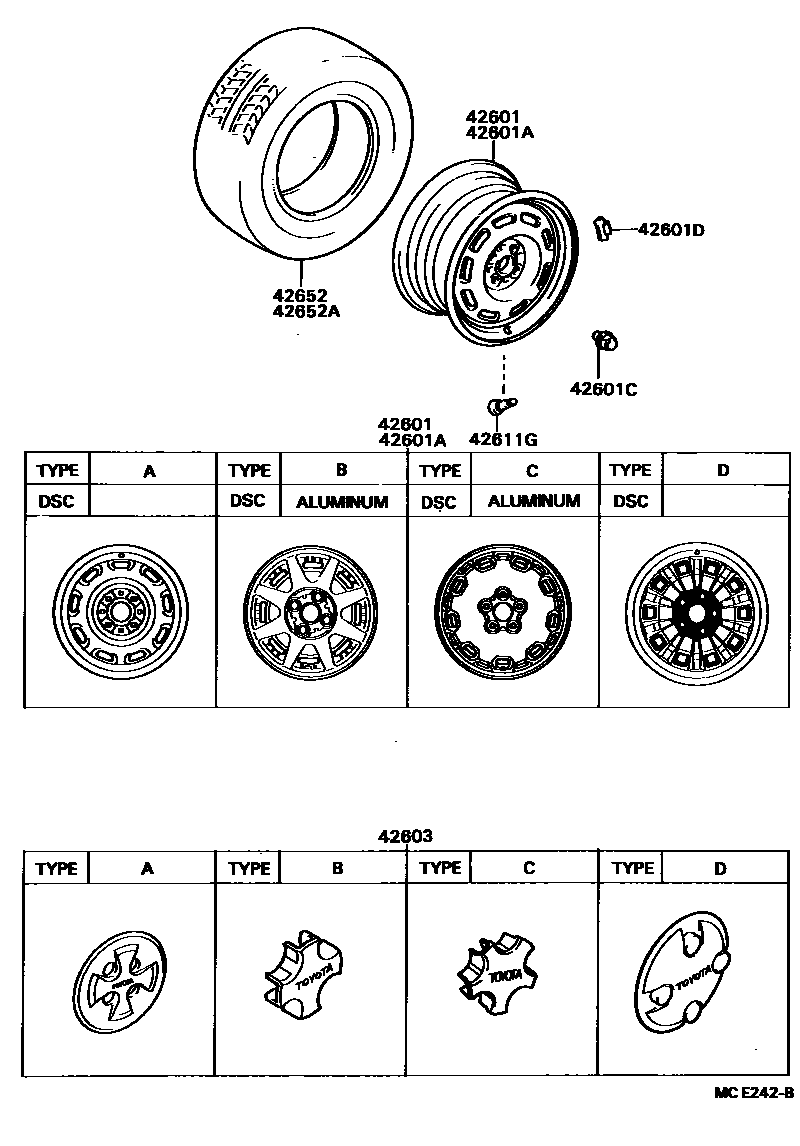

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL
13X5J,5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
sub42611-20410
13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3
sub42611-20430
14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL
14X6JJ,WHITE,14X6JJ,TYPE C,WHITE
42601AWHEEL, DISC (FOR SPARE)
13X5.5JJ,ALUMINUM,5.5JJ-13,TYPE B,ALUMINUM WHEEL
13X5J,5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
sub42611-20410
13X5.5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,21C ,4H5 ,4H6 ,8D7 ,8D8 ,920 ,168 ,202 ,3E5 ,3H4 ,8E3
sub42611-20430
14X6JJ,6-JJX14,TYPE C,ALUMINUM WHEEL
14X6JJ,WHITE,14X6JJ,TPE C,WHITE
42601CNUT, HUB (FOR AXLE)
W(HALF CAP)
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G
15G
20G
25G
30G
35G
40G
45G
50G
55G
60G
65G
70G
75G
80G
5G
5G
42603ORNAMENT SUB-ASSY, WHEEL HUB
W(ALUMINUM WHEEL)
W(ALUMINUM WHEEL)
TYPE C
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
165SR13,W(TUBE)
185/70HR13,W(TUBE)
165SR13
185/70R13 85H
165SR13
195/60VR14
185/70R13 85H
195/60R14 85V
42652ATIRE (FOR SPARE)
165SR13,W(TUBE)
185/70HR13,W(TUBE)
165SR13
185/70R13 85H
165SR13
195/60VR14
185/70R13 85H
195/60R14 85V
8 parts on this diagram · 1 diagram in section
