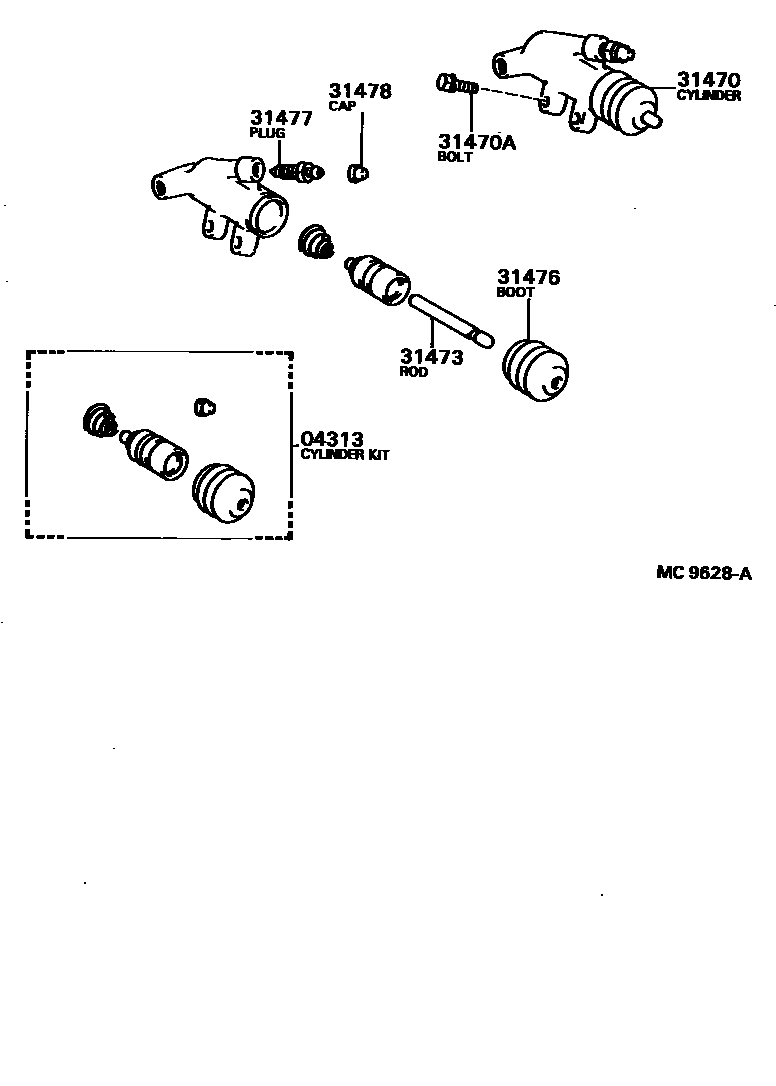

CLUTCH RELEASE CYLINDER

0001 1C52 0002 1S52,53

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010iAT160198708-198806

main04313-12011iAT160198806-198908

main04313-12030iST162..5F198902-198908

main04313-22020iST162..5F198708-198902

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12041iAT160198708-198806

sub31470-12042

main31470-12042iAT160198806-198901

sub31470-12043

main31470-12043iAT160..CP198901-198908

main31470-32020iST162..5F..(GT,SX)198708-198901

sub31470-32021

main31470-32021iST162..5F..(GT,SX)198901-198902

sub31470-32022

main31470-32022iST162..5F..(GT,SX)198902-198908

sub31470-32023

main31470-32030iST162..5F..ST198708-198901

sub31470-32031

main31470-32031iST162..5F..ST198901-198902

sub31470-32032

main31470-32032iST162..5F..ST198902-198908

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT160198708-198908

*8-1.25PX22-17.1

main91611-60825iST162..5F198708-198908

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAT160,ST162..5F198708-198908

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT160,ST162..5F198708-198908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-12010iAT160,ST162..5F198901-198902

sub47547-20010

main47547-12010iST162..5F198708-198901

main47547-20010iAT160,ST162..5F198902-198908

main47547-60020iAT160198708-198901

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT160,ST162..5F198708-198908

7 parts on this diagram · 2 diagrams in section
