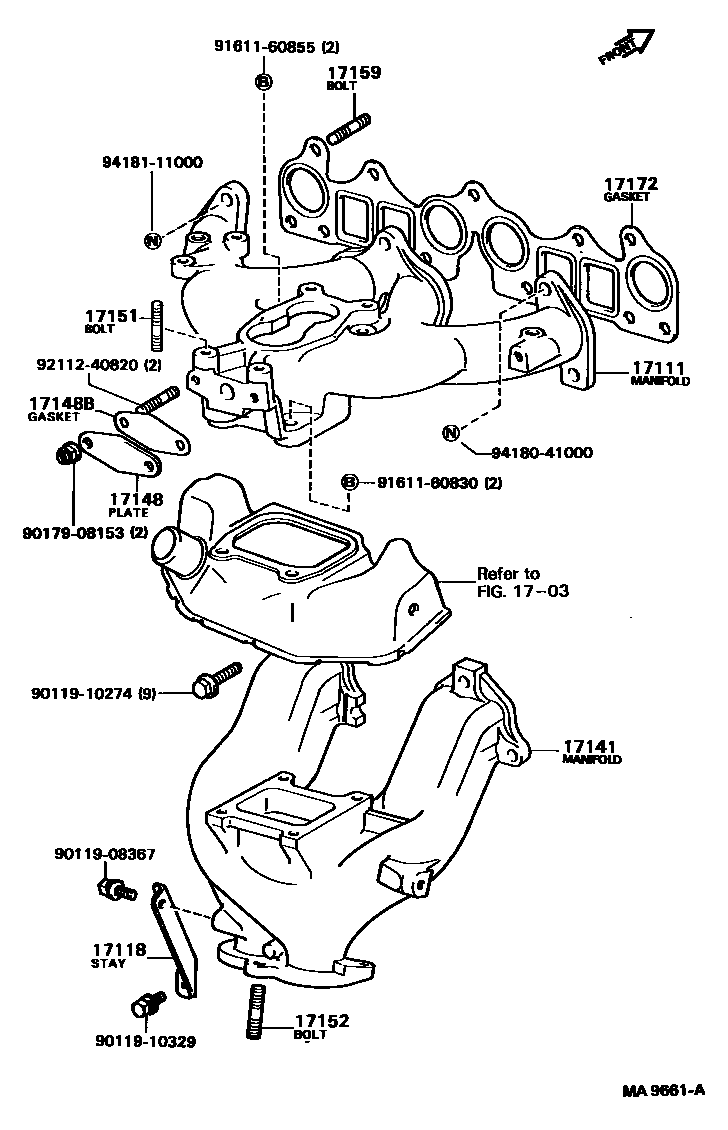

MANIFOLD

0001 1 0002 1 0003 1 0004 1

1703

17111MANIFOLD, INTAKE

main17101-16130i4AGEL..AT160198708-198908

main17101-74071i3SFE..ST162198708-198908

main17111-15030i4AL..AT160198708-198908

main17111-74050i3SGELC..ST162198708-198908

main17111-88360i3SGEL..ST162198708-198908

17118STAY, MANIFOLD

main17118-16030i4AL..AT160198708-198908

main17118-88362i3SG#..ST162198708-198908

main17139-16040i4AGEL..AT160198708-198908

17141MANIFOLD, EXHAUST

main17141-16030i4AL..AT160198708-198908

main17141-16180i4AGEL..AT160198708-198908

sub17141-16260

main17141-74040i3SFE..ST162198708-198805

sub17141-74041

sub90105-08222

main17141-74070i3SGELC..ST162198708-198908

main17141-88362i3SGEL..ST162198708-198908

17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

main25617-14010i4AL..AT160198708-198908

17148BGASKET, EGR INLET

main25629-15011i4AL..AT160198708-198908

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832×4i4AL..AT160198708-198808

main92112-60832×4i4AL..AT160198808-198908

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×3i3SFE,3SG#..ST162198708-198805

main90116-10146×3i4AL..AT160198805-198904

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08186×3i3SG#..ST162198708-198908

INTAKE SIDE

main90116-08218×2i4AGEL..AT160198708-198908

INTAKE SIDE

main90116-10037×2i4AGEL..AT160198708-198908

EXHAUST SIDE

main90116-10063×6i3SFE..ST162198708-198907

EXHAUST SIDE

main90116-10113×6i3SGEL..ST162198710-198908

EXHAUST SIDE *54

main92112-61032×2i4AL..AT160198708-198908

main92122-60825×2i3SFE..ST162198708-198907

INTAKE SIDE

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-14010i4AL..AT160198708-198908

sub17172-14011

9011908367

main90119-08367

9011910274

main90119-10274

9011910329

main90119-10329

9017908153

main90179-08153

9161160830

main91611-60830

9161160855

main91611-60855

9211240820

main92112-40820

9418041000

main94180-41000

9418111000

main94181-11000

19 parts on this diagram · 4 diagrams in section
