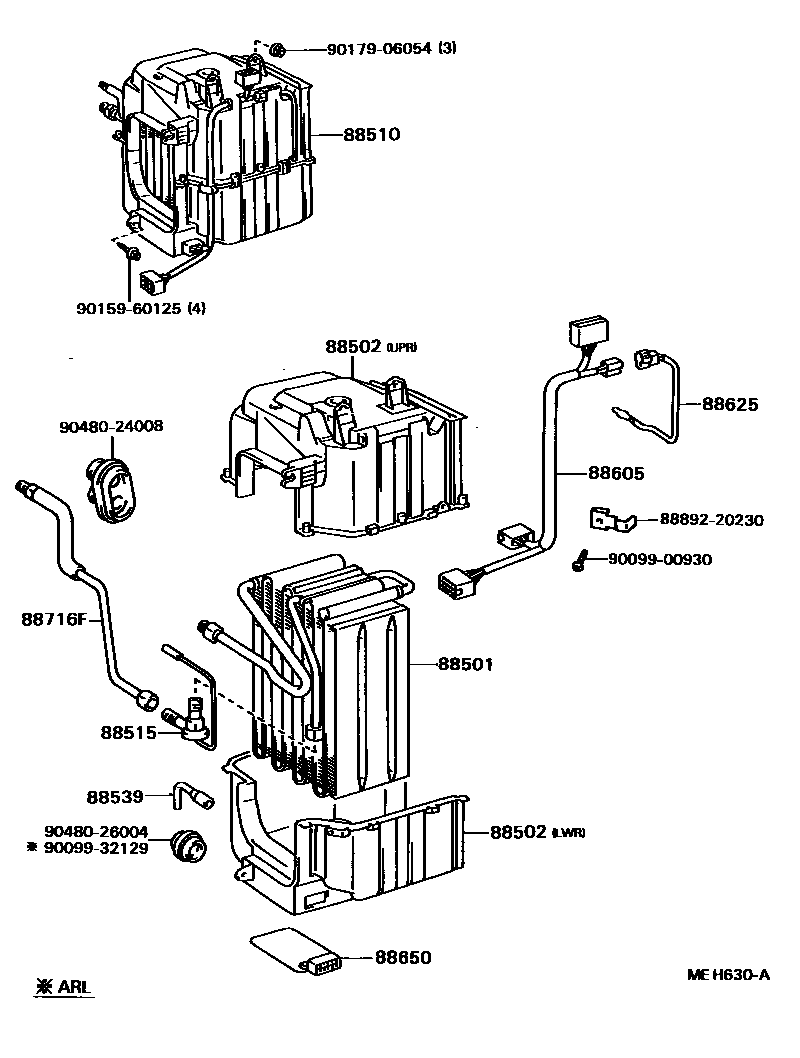

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20200iAT160,ST162,182..RHD198508-198601

main88501-20201iAT160,ST162,182..RHD198601-198708

main88501-20210iAT160,ST162..LHD198508-198601

main88501-20211iAT160,ST162..LHD198601-198708

88502CASE SUB-ASSY, COOLING UNIT

main88502-20090iST162,182..ARL198508-198708

UPR

main88502-20100iST162,182..ARL198508-198708

LWR

88510UNIT ASSY, COOLER

main88510-20360iAT160..RHD198508-198708

W/HEATER

main88510-20370iAT160..RHD198508-198708

main88510-20380iAT160,ST162..LHD198508-198708

W/HEATER

main88510-20410iAT160,ST162..LHD198508-198708

main88510-20440iST162..ST198608-198708

main88510-20470iST162,182..SX198508-198708

88515VALVE, COOLER EXPANSION

main88515-16031iAT160,ST162,182198508-198708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20130iAT160,ST162,182198508-198708

sub88539-22110

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20590iAT160,ST162..GT,ST198508-198708

W/HEATER

main88605-20620iAT160,ST162..GEN,ME198508-198708

main88605-20670iST162,182..SX198508-198708

88625THERMISTOR, COOLER, NO.1

main88625-12070iAT160,ST162,182198508-198708

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20240iAT160,ST162..GEN,ME198508-198608

W/HEATER

main88650-20241iAT160,ST162..GT,ST198608-198708

W/HEATER

main88650-20250iAT160,ST162..GEN,ME198508-198608

main88650-20251iAT160,ST162..GEN,ME198608-198708

main88650-20260iST162,182..ARL198508-198608

main88650-20261iST162,182..SX198608-198708

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B040iST162,182..ARL198508-198708

8889220230BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20230

9009900930

main90099-00930

9009932129

main90099-32129

9015960125

main90159-60125

9017906054

main90179-06054

9048024008

main90480-24008

9048026004

main90480-26004

16 parts on this diagram · 1 diagram in section
