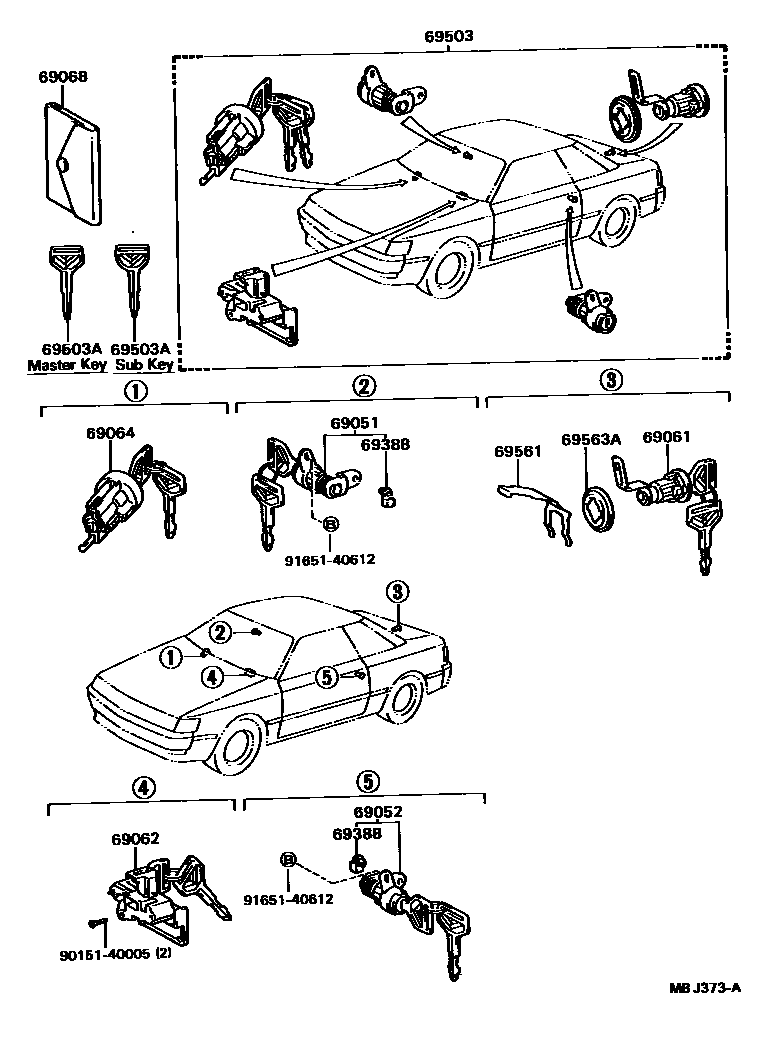

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20130iAT160,ST162,182..LB198508-198708

sub69051-20140

main69051-20160iAT160,ST162..CP198508-198708

sub69051-20170

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20130iAT160,ST162,182..LB198508-198708

sub69052-20140

main69052-20160iAT160,ST162..CP198508-198708

sub69052-20170

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20160iAT160,ST162..CP198508-198708

sub69055-20210

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20060iAT160,ST162..CP198508-198708

main69056-20070iAT160,ST162,182..LB198508-198708

sub69056-20080

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20070iST162,182..LB..ARL198508-198708

W/O *EL

sub69057-20090

main69057-20080iAT160,ST162..LB..GT198508-198708

W/*EL

sub69057-20100

main69057-20110iST162..CP..ARL198608-198708

sub69057-20120

main69057-20110iAT160..CP198508-198708

W/O *EL

sub69057-20120

main69057-20120iAT160,ST162..CP..GT198508-198708

W/*EL

sub69057-32121

69068COVER SUB-ASSY, KEY

main69555-20010iAT160,ST162,182198508-198708

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iAT160,ST162,182198508-198708

RH

main69759-30050iAT160,ST162,182198508-198708

LH

69503CYLINDER SET, LOCK

main69005-20400iAT160,ST162..CP..GT198508-198708

W/*EL

main69005-20420iAT160..CP198508-198708

W/O *EL

main69005-20420iST162..CP..ARL198608-198708

main69005-20460iAT160,ST162..LB..GT198508-198604

W/*EL

main69005-20461iAT160,ST162..LB..GT198604-198708

W/*EL

main69005-20470iST162,182..ARL198508-198604

W/O *EL

sub69005-20450

main69005-20471iST162,182..LB..ARL198604-198708

W/O *EL

sub69005-20451

69503AKEY, BLANK

main90999-00085iAT160,ST162..CP198508-198708

MASTER KEY,MASTER KEY

main90999-00094iAT160,ST162..CP198508-198708

SUB KEY,SUB KEY

main90999-00106iAT160,ST162..CP198508-198708

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

sub90999-00212

main90999-00112iAT160,ST162,182..LB198508-198708

MASTER KEY,MASTER KEY

main90999-00113iAT160,ST162,182..LB198508-198708

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

sub90999-00146

main90999-00114iAT160,ST162,182..LB198508-198708

SUB KEY,SUB KEY

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69501-20030iAT160,ST162,182..LB198508-198708

main69561-20070iAT160,ST162..CP198508-198708

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iAT160,ST162..CP198508-198708

9015140005

main90151-40005

9165140612

main91651-40612

13 parts on this diagram · 2 diagrams in section
